BVA Hydraulics H0509 Spring-Return, Hydraulic Jacking Cylinders
BVA Hydraulics, H-Series of high-pressure, high-tonnage hydraulic cylinders are offered through (42) standard models, ranging from 2 – 100 tons capacity.
All BVA Hydraulics products adhere to ISO9001 Quality Assurance Standards and all BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed ASME B30.1 standards and are covered by BVA Hydraulics Limited Lifetime Warranty.
Inquire about BVA Hydraulics H0509 Spring-Return, Hydraulic Jacking Cylinders
BVA Hydraulics H0509 Spring-Return, Hydraulic Jacking Cylinders
- 10,000 psi Maximum pressure.
- Single-acting, spring return design for use in any position.
- 10,000 lbs./force (5T) each @10,000 psi.
- 12.75″ Retracted height.
- 9.00″ Stroke/travel.

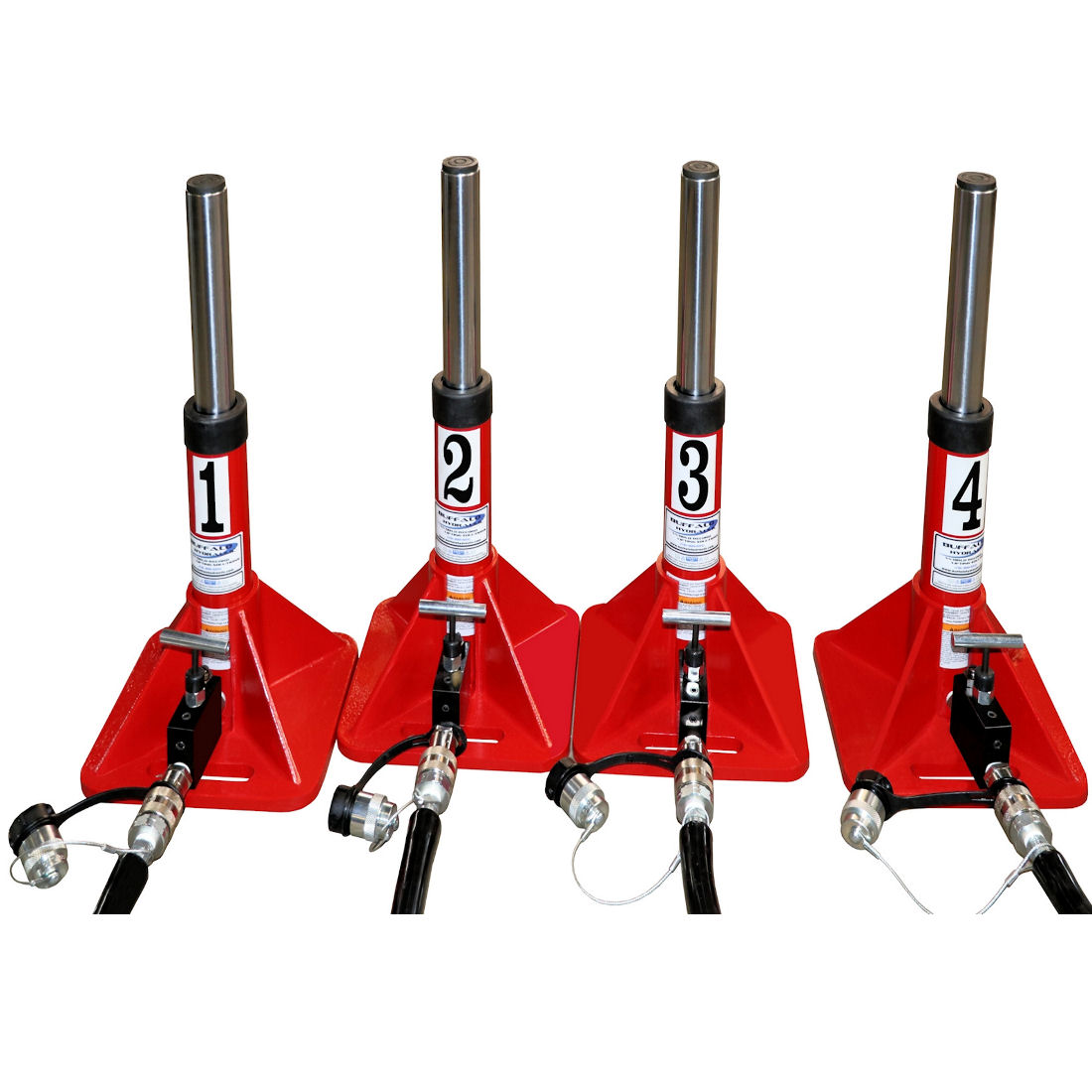

- Shown, equipped with custom base support for added stability.
- Optional CVMS3, manually operated, load holding valve installed in the working port of each cylinder shown.
- Engineered 1 1/2″ 16, rod end collar thread for fixture mounting.
- 1/4″, 20 base mounting holes to accept base plate support.
- Industrial hard chrome plunger on all H-Series hydraulic cylinders.
- CH38F female half quick disconnect coupler standard on all models except H0500 (CRZ14F).
