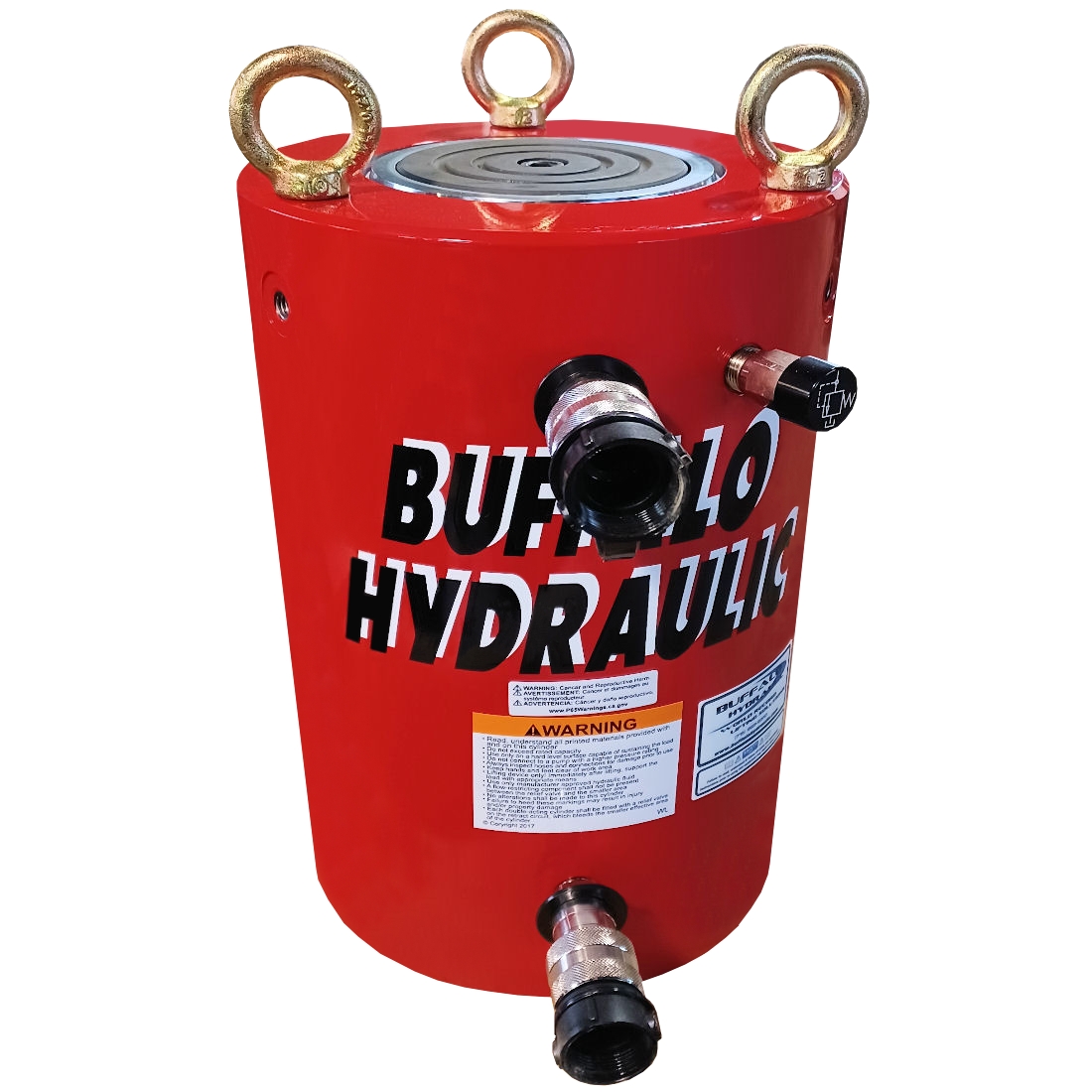

BVA Hydraulics HDG10008, 100T Hydraulic Jacking Cylinder

ASME B30.1

BVA Hydraulics hydraulic cylinders are designed, built, and tested to meet or exceed ASME B30.1 standards.

Buffalo Hydraulic proudly serves as a Factory Authorized Stocking Distributor as well as a Factory Authorized Warranty/Service Center for all BVA Hydraulics products.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HDG10008, 100 tons Capacity, Hydraulic Jacking Cylinder

  • 10,000 psi Maximum operating pressure.
  • Rod end pressure relief valve.
  • Double-acting design.
  • 200,000 Lbs./Force (100T) at 9,723 psi.
  • 13.07″ Retracted Height.
  • 7.87″ Stroke/travel.
  • ø3.74″ Plunger diameter.
  • ø5.12″ Internal bore diameter.
  • ø6.50″ Outside diameter.
  • 162 cu.” of oil required in advance.
  • 76 cu.” of oil required in retract.
  • Two M12 X 0.87″ deep base mounting holes.
  • 100 Lbs.
  • 35 Standard models to choose from, ranging from 100 – 1,000 tons capacity.
