BVA Hydraulics PE50W3N10A Electric Hydraulic Pump

• 10,000 p.s.i. Maximum operating pressure.
• 115 VAC, 1 Ph., 60 Hz.
• 476 cu.” of oil per minute 0 – 700 p.s.i. (1st Stage).
• 61 cu.” of oil per minute 700 – 10,000 p.s.i. (2nd Stage).
• 10 Gallons oil reservoir.
• 3-Way, 3-Position, tandem center, manually operated directional valve.
• 10′ handheld motor control pendant.
• internal relief valve.
• Oversized reservoir fill/vent cap assembly.
• ISO9001 International Quality Assurance System.

The single-phase family of BVA Hydraulics Electric Hydraulic Pumps is available in over 100 configurations – making this a very versatile choice for 10,000 p.s.i. applications.

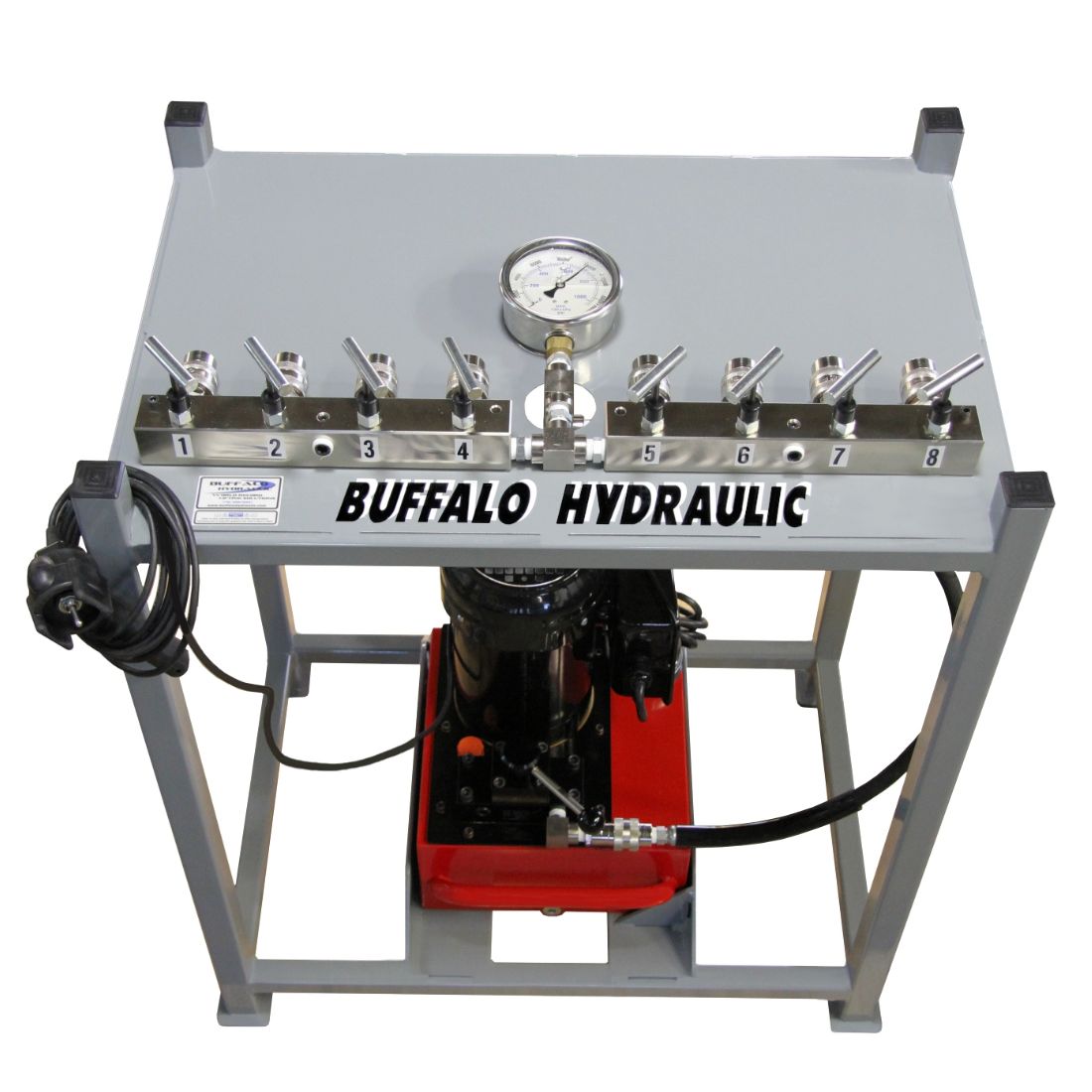

The console as shown includes (2) MFC4 manifolds with built-in metering/flow control valves and is used to provide and monitor flow to (8) 100 tons capacity bridge jacking cylinders.

With 1,000’s of jacking cylinders ranging from 1 – 1,500 tons capacity and over 7 decades of high-pressure hydraulic system experience, please consider our support in your next high-tonnage application!
