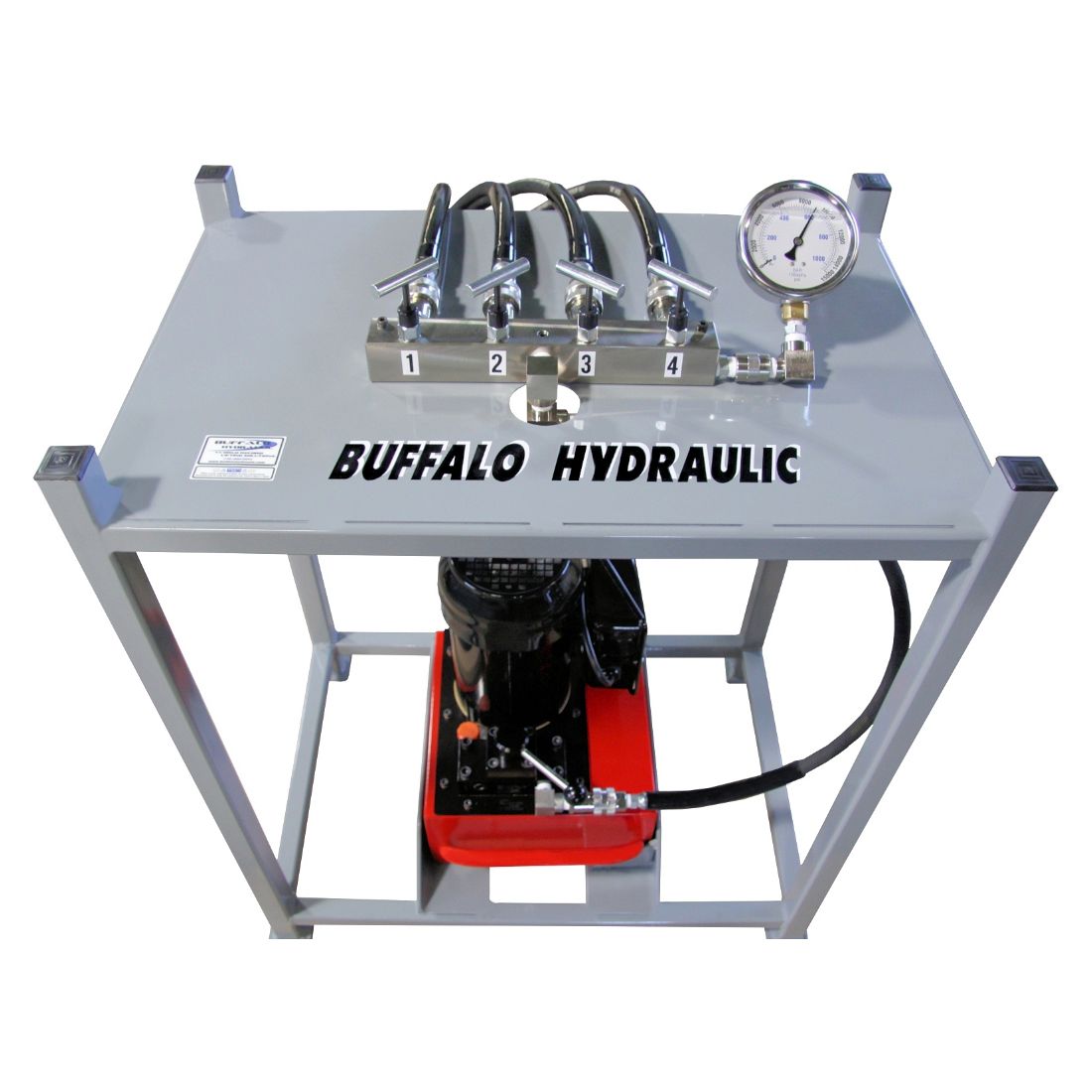

BVA Hydraulics Electric Hydraulic Jacking System Work Station

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

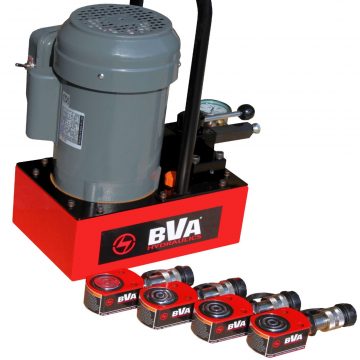

BVA Hydraulics PE50W3N10A Electric Hydraulic Jacking System Work Station.

  • 10,000 p.s.i. Maximum operating pressure.
  • 115 VAC, 1 Ph., 60 Hz.
  • 476 cu.” Of oil per minute (1st stage).
  • 61 cu.” Of oil per minute @10,000 p.s.ui. (2nd Stage).
  • Internal bypass relief valve.
  • 3-way, 3-position (Advance-Hold-Retract) directional valve.
  • 10′ handheld motor control pendant.
  • Shown with (4) common working ports and built-in metering/flow control valves.
  • 10 Gallons oil reservoir.

This modular design is easily adaptable to multiple jacking points in increments of two.  With reservoir sizes up to 40 gallons, this unit can adequately supply the required flow and pressure for your most demanding high-tonnage hydraulic jacking project!

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BVA Hydraulics Electric Hydraulic Jacking System Work Station”

Related Products

Buffalo Hydraulic High Tonnage Hydraulic Jacking Systems

Buffalo Hydraulic High Tonnage Hydraulic Jacking Systems

SPX Power Team High Tonnage Hydraulic Jacking Systems

SPX Power Team High Tonnage Jacking Systems

SPX Power Team Electric Hydraulic Railcar Jacks

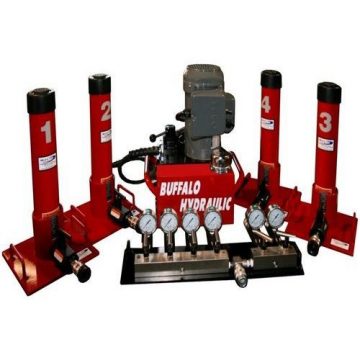

BVA High Tonnage Hydraulic Jacking Systems
