BVA Hydraulics HD Series Double Acting Hydraulic Cylinders

BVA Limited Lifetime Warranty

All BVA Hydraulics products are warranted to be free of defects in materials and workmanship. Any BVA product that does not conform to specification will be repaired or credited (at BVA’s option) at BVA’s expense for the life of the product. Contact BVA or Buffalo Hydraulic for the disposition of this warranty.

This warranty does not cover ordinary wear and tear, abuse, misuse, alteration, or use of improper fluids or maintenance as determined by BVA and its authorized service centers. All electric motors, gas engines, batteries, and other parts or materials sold with or as part of BVA products but are separately warranted by another manufacturer, are covered by that manufacturer’s warranty and not the BVA Lifetime Warranty. BVA shall not be liable for consequential or incidental damage or loss.

Spec Sheet

Inquire About This Product

Add to Wishlist

Categories: BVA Hydraulics Products, Hydraulic Cylinders

Description
Reviews (0)

Description

BVA Hydraulics HD Series Double Acting Hydraulic Cylinders.

10,000 psi maximum operating pressure.

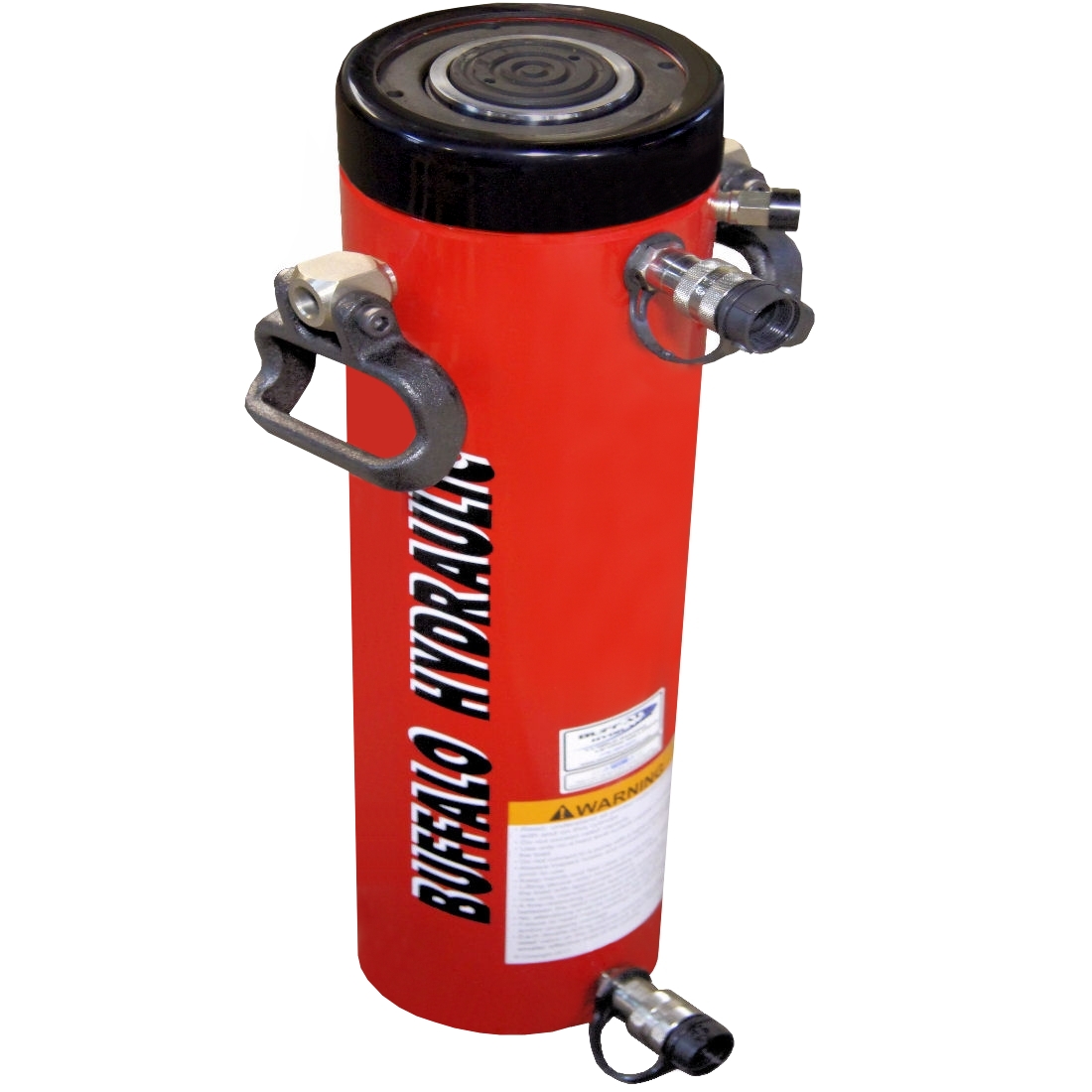

HD20013 – Shown.
23.94″ Retracted length.
13.12″ Stroke/travel.
7.50″ Diameter bore.
5.25″ Diameter, chrome plunger.
9.75″ Outside diameter.
1.00″ – 8 female base mounting holes.
1.00″ – 12 Engineered collar thread.
2 1/2″ – 12 Female plunger thread.
Rod end relief valve installed on all HD models.
High flow quick disconnect couplers.

The BVA Hydraulics HD Series of double-acting hydraulic cylinders are offered in standard models ranging from 10 – 500 tons capacity. All models are designed, manufactured, and tested within ASME B30.1 compliance.

For demanding applications requiring high tonnage, and a double-acting hydraulic cylinder design, the HD Series will provide a safe and reliable solution.

Any BVA Hydraulics HD cylinders can be easily paired with a high pressure, high volume hand operated, air hydraulic, electric hydraulic, gasoline engine driven, or diesel engine hydraulic pump. A system can then consist of just one cylinder or multiple lifting, pressing, and pulling points of force.
