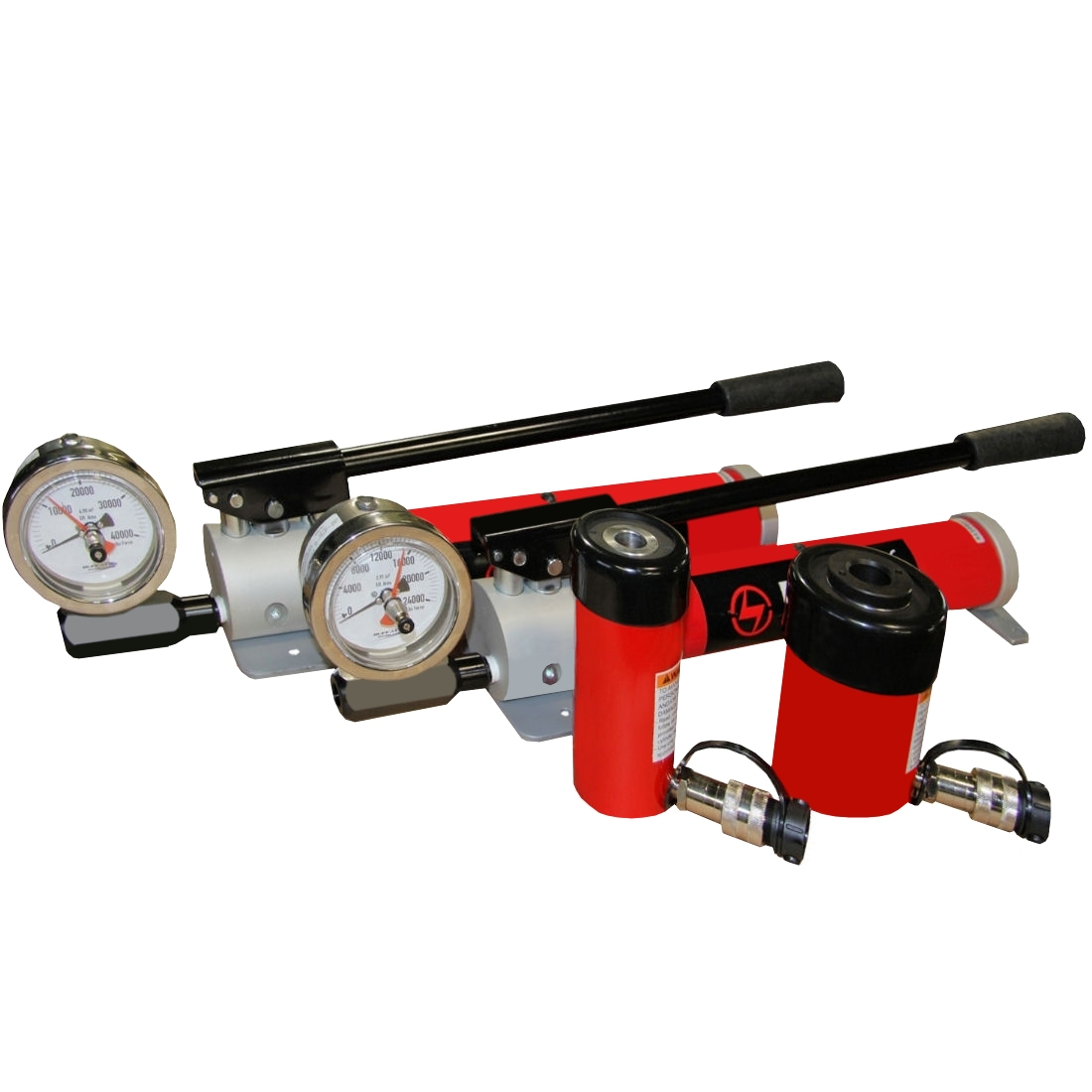

BVA Hydraulics 10,000 PSI Pump And Cylinder Sets

BVA Hydraulics pump and cylinder sets are offered in (43) standard combinations to provide the most common capacities and stroke.  With an endless variety of hand-operated, air-hydraulic-electric-hydraulic-gasoline-engine driven pumps and cylinders ranging from 2 – 1,000 tons force, we’re glad to provide an all-inclusive kit to meet your needs.

All BVA Hydraulics products adhere to ISO 9001 Quality Assurance System Standards and are covered by the BVA Limited Lifetime Warranty.

Buffalo Hydraulic proudly serves as a Factory Authorized Distributor as well as a Factory Authorized Warranty/Service Center for all BVA Hydraulics products.  This close working team approach will provide you with any and all technical support you require, before, during your purchase, and after your jacking system is in use – Please call today and let us know how we can help in support of your high-pressure, high-tonnage hydraulic project!



Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics P1000 Lightweight, Aluminum Construction, Hydraulic Hand Pump

  • 10,000 psi maximum operating pressure.
  • Aluminum construction.
  • 62 cu.” Useable oil volume.
  • Shown, equipped with NIST Certified pressure gauge & maximum indicator pointer.
  • 0.81 cu.” Of oil per stroke from 0 – 200 p.s.i (1st Stage).
  • 0.14 cu” Of oil per stroke from 201 – 10,000 p.s.i. (2nd Stage).
  • 13.7 lbs. each.

BVA Hydraulics HC1203XT Hollow Plunger Hydraulic Cylinder

  • 24,000 Lbs. Capacity @8,236 p.s.i.
  • 7.24″ Minimum height.
  • 2.99″ Stroke/travel
  • Ø 0.77″ Through hole.

BVA Hydraulics HC2002T Hollow Plunger Hydraulic Cylinder

  • 40,000 Lbs. Capacity @8,167 p.s.i.
  • 6.38″ Minimum height.
  • 2.01″ Stroke/travel
  • Ø 1.06″ Through hole.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BVA Hydraulics 10,000 PSI Pump And Cylinder Sets”
