BVA Hydraulics High Tonnage Double Acting Cylinders

BVA Hydraulics HD Series of 10,000 psi, double-acting hydraulic cylinders are offered in 19 standard models ranging from 10-500 tons capacity.

All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed industry standard ASME B30.1.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HD3008 Jacking Cylinders.

  • Double-acting design.
  • 60,000 Lbs. Capacity @9,245 p.s.i.
  • 15.31″ Retracted height.
  • 8.15″ Stroke.
  • Ø3.98″ Diameter.
  • 43 Lbs.  Each.

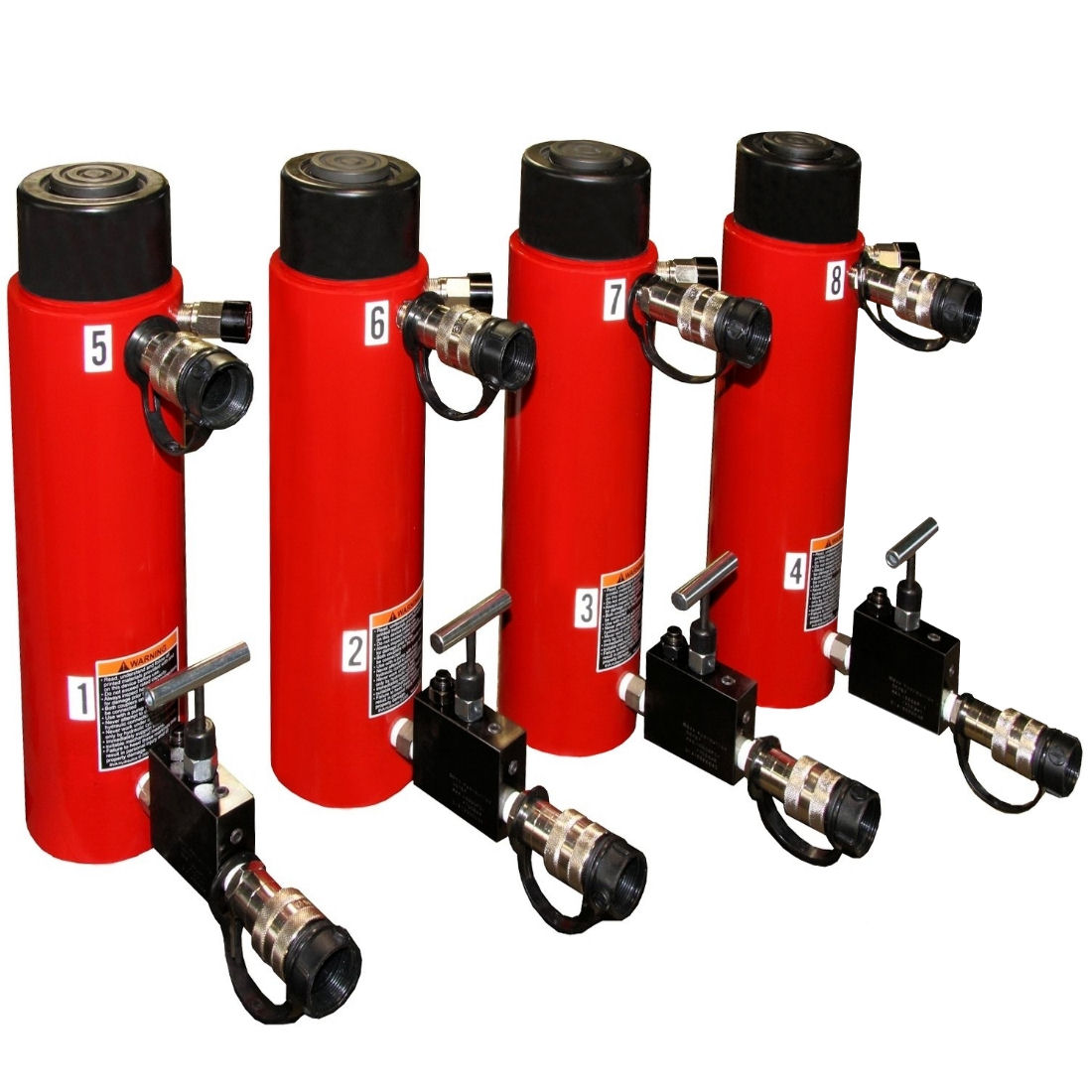

Equipped with optional BVA Hydraulics CVMS3 manually operating, load-holding check valves installed into the ‘Advance’ port as shown for added safety.
