BVA Hydraulics, HULN15008, 150 Tons Capacity, Lightweight Aluminum, Lock-Nut Hydraulic Jacking Cylinders
BVA Hydraulics HULN Series of lightweight aluminum, lock nut jacking cylinders are offered through (20) standard models ranging from 30 – 150 tons capacity. Incorporating this jacking cylinder design into your project allows unique load support through the mating lock nut and plunger. Simply, as the plunger begins to rise, scheduled time-outs will allow for the mating lock nut to be screwed down against the cylinder body – Creating a mechanical load-holding support at that particular point.

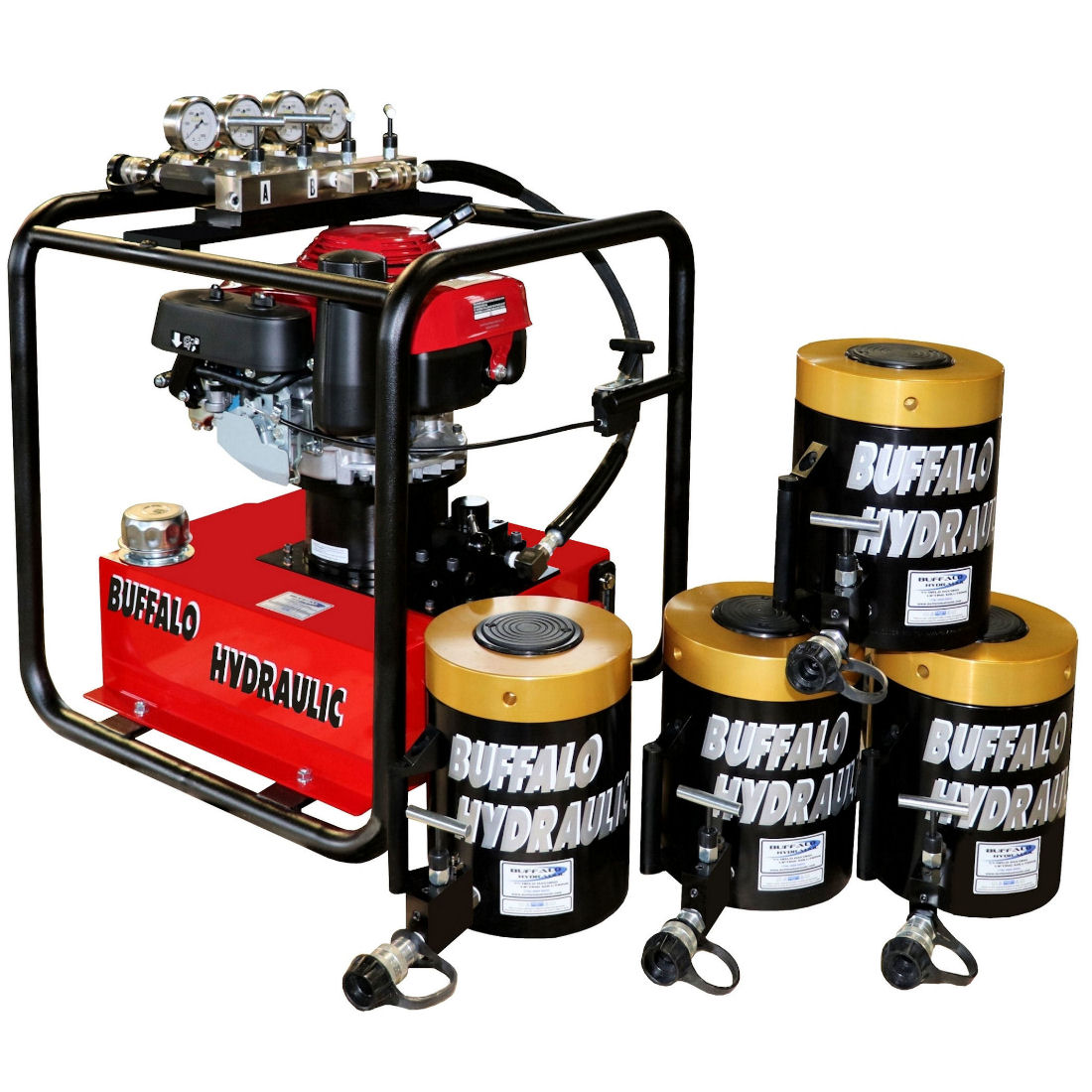

The system as shown includes a PG70M3N05 gas engine two-stage hydraulic pump equipped with a 5.5 Hp Honda gas engine, 4-port custom manifold, (4) glycerin filled, NIST Certified pressure gauges, and (4) HULN15008 jacking cylinders equipped with manually operated, load holding valves.
Combined, this system provided the required 466 tons of lifting force to precisely lift an overpass bridge for emergency repairs.
All BVA Hydraulic cylinders meet or exceed ASME B30.1 requirements and are covered by the BVA Limited Lifetime Warranty.
Inquire about BVA Hydraulics, HULN15008, 150 Tons Capacity, Lightweight Aluminum, Lock-Nut Hydraulic Jacking Cylinders
BVA Hydraulics, HULN15008, 150 Tons Capacity, Lightweight Aluminum, Lock-Nut Hydraulic Jacking Cylinders
- 10,000 psi Maximum pressure.
- Single-acting, load return lock-nut design.
- 300,000 lbs./force (150T) each @9,778 psi.
- 14.38″ Retracted height.
- 6.00″ Stroke/travel.
- Engineered, plunger mating lock-nut to offer mechanical load support on all HULN Series jacking cylinders.
- Shown, equipped with optional CVMS3, manually operated, load holding valve installed in the working port of each cylinder.
- CH38F female half quick disconnect coupler standard on all models except H0500 (CRZ14F).
- 106 lbs. each.
