Is where your hydraulic components come from important to you?
In a time when leading competitors are increasingly outsourcing to China, BVA Hydraulics is proud to have the unique advantage of owning and operating their high-pressure hydraulics manufacturing plant in Taiwan since 1971 – Nearly 45 years now!
Taiwanese manufacturing is known worldwide as being among the highest of modern quality, putting the country on the short list of TAA-compliant regions. BVA Hydraulics’ ability to eliminate the middleman to source raw materials with supply chain stability sets them above other high-pressure hydraulics manufacturers. This, along with nearly 100,000 square feet of office, warehouse, testing facilities, and product showrooms in Kansas City Missouri provides a perfect combination!
Brand Loyalty Versus Quality Control
It’s easy to fall back on the old standby, but when you are given the option of greater control over your orders from raw material sourcing to drop shipping directly to a job site, the choice is clear.
Every step of the way, BVA Hydraulics provides personal care in everything from testing their product up to 10,000 cycles and giving flexibility of customization on orders.
Choosing a high-pressure hydraulics supplier doesn’t have to be complicated. BVA Hydraulics offers as much value as possible to ensure safety and reliability through all of its products.
As a Factory Authorized Distributor and Warranty/Service Center, and with nearly 80 years of high-pressure, high-tonnage hydraulic experience, Buffalo Hydraulic is proud to partner with BVA Hydraulics in this way to serve your needs.

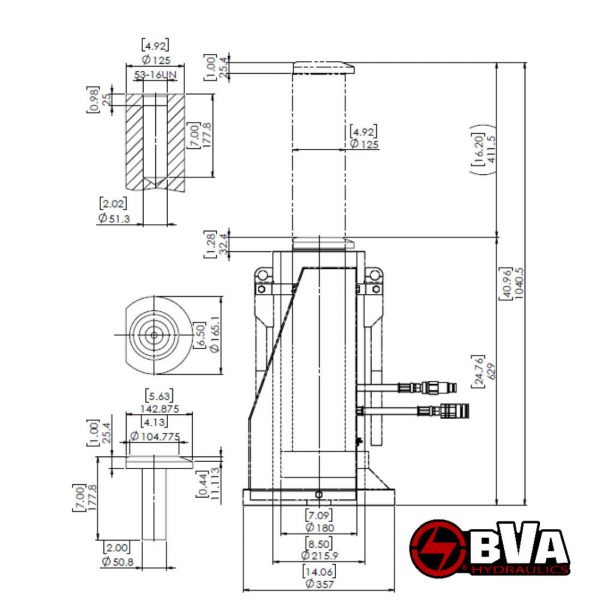

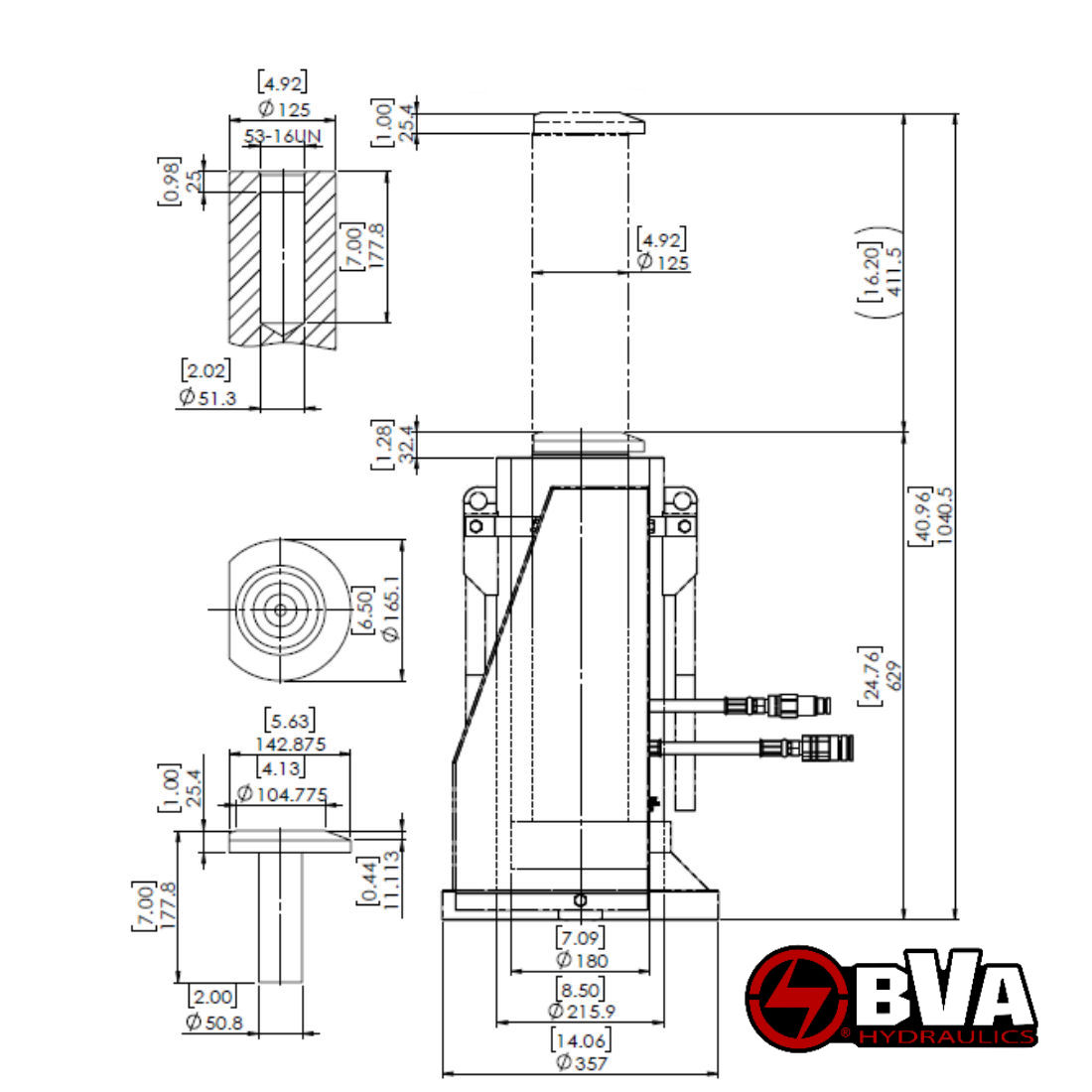

BVA Hydraulics JDR80 Hydraulic Railcar Jack
The BVA Hydraulics JDR80 Hydraulic Railcar Jack is built for demanding lifting applications, offering 80 tons of lifting capacity with a maximum operating pressure of 4,200 psi. Its high-strength aluminum construction ensures durability, while the flush face quick disconnect couplers provide ease of use. Ideal for railcar and heavy equipment lifting, this hydraulic jack delivers safe and efficient operation for mobile applications. A separate 4,200 psi power unit is required for operation.
Specifications:
4,200 psi Maximum operating pressure.
80 Tons lifting capacity – each.
24.76″ Retracted height.
16.20″ Stroke/travel.
639 cu” of oil required – Advance.
331 cu” of oil required – Retract.
200 lbs. each.
This system was designed and supplied to provide flow and pressure to (8) 150 tons capacity, lock-nut style jacking cylinders for use in modifying a bridge overpass pier.
BVA Hydraulics products are manufactured through an International Quality Assurance System, ISO 9001 which involves consistent observation of administration, manufacturing, and production control. Under this system, the related operations are monitored in all aspects from the purchase order to the assembly line and through shipping of the order.
Buffalo Hydraulic proudly serves as a Factory Authorized Distributor as well as a Factory Authorized Warranty/Service Center for all BVA Hydraulics products. This close working team approach will provide you with any and all technical support you require, before, during your purchase, and after your jacking system is in use - Please call today and let us know how we can help in support of your high-pressure, high-tonnage hydraulic project!
Power Team products are built with strict ISO 9000 manufacturing processes and are covered by a Lifetime Marathon Warranty!
