BVA Hydraulics Low-Profile and Through-Hole, High-Tonnage Jacking Cylinders

With reservoir volumes ranging from 1 – 40 gallons, jacking cylinders ranging from 1 – 1,000 tons capacity, and the ability to provide the necessary multi-port manifold, directional and load holding valves, BVA Hydraulics high tonnage jacking systems can easily be adapted to meet your needs.

This system as shown was supplied to provide 4-points of lift at 150,000 lbs. per point and to then perform anchor testing of expoxied anchors at 44,000 lbs. per point.

Buffalo Hydraulic and BVA Hydraulics offer a team approach that will provide support with your most challenging high-tonnage jacking system – Please call (716) 893-6510 and we’ll offer our support for your project in any way we can!

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

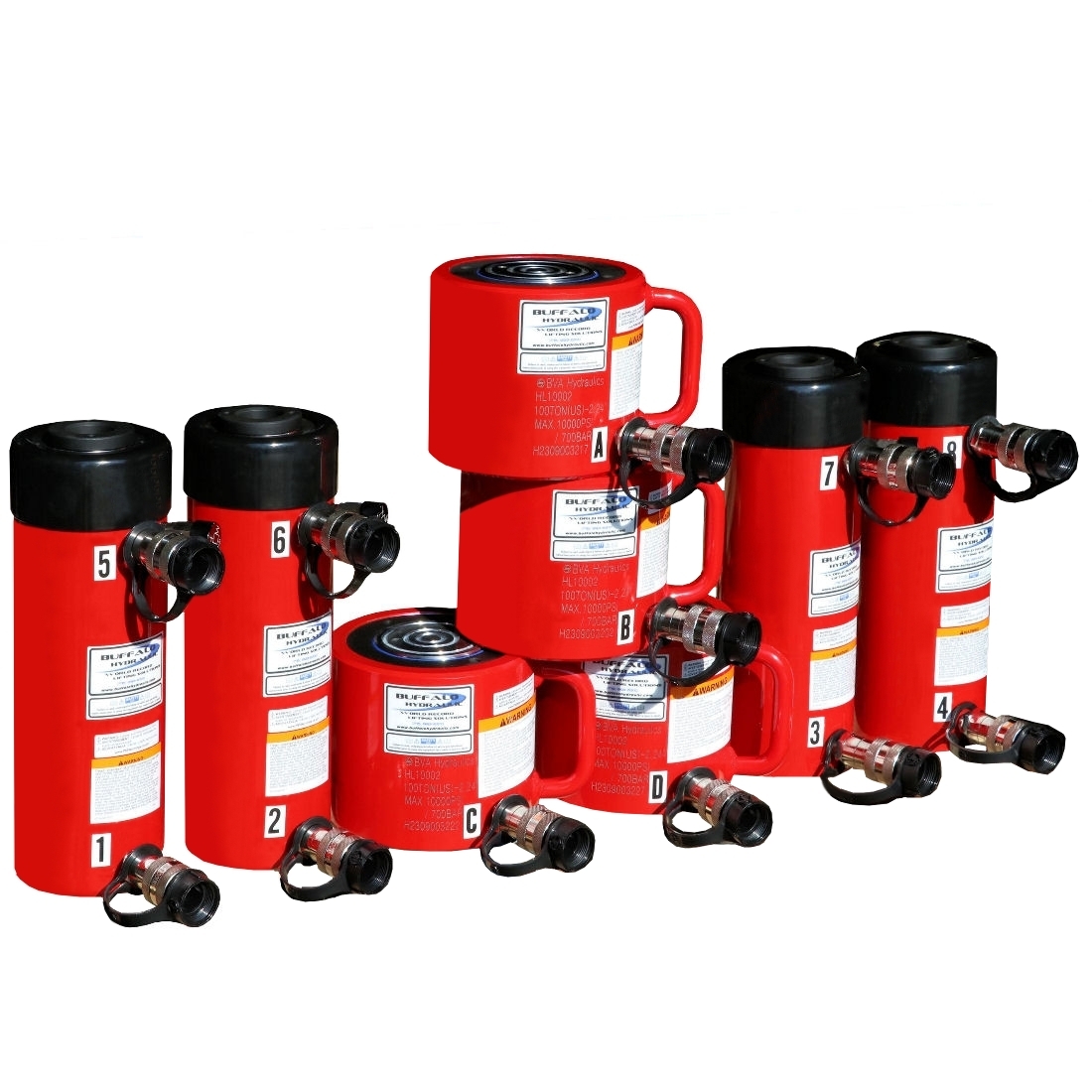

BVA Hydraulics – HC3006T 30T Through-Hole, Hollow-Plunger Hydraulic Cylinders – Shown

  • 10,000 psi maximum pressure.
  • Single-acting, spring return design.
  • 60,000 lbs. force (30T) @9,494 psi (each).
  • 13.02″ Retracted height.
  • 6.11″ Stroke – travel.
  • ø1.31″ Diameter through hole.
  • ø2.48″ Diameter chrome plunger.
  • ø4.50″ Cylinder body, outside diameter.
  • ø4.50″, 12 Engineered collar thread for fixture mounting.
  • ø0.38″, 16 Base mounting holes.
  • 43.0 lbs. each.

BVA Hydraulics – HL10002 Low Profile, High Tonnage Jacking Cylinders – Shown.

  • 196,400 lbs. capacity at 10,000 p.s.i. (maximum pressure).
  • Single acting, spring return.
  • 5.55″ Retracted height.
  • 2.24″ Stroke/travel.
  • ø6.50″ Cylinder body, outside diameter.
  • 45.40 lbs. each.

The BVA Hydraulics HL-Series of low-profile, high-tonnage jacking cylinders offer high force with a minimum starting height and can be used in any position to generate, your required jacking, lifting, pressing, or pushing force.  If your requirement is to deliver a specified contact force through a number of points, Buffalo Hydraulic has the experience needed to design a multi-point system to meet your needs.

All BVA Hydraulics Cylinders are designed, manufactured, and tested to meet or exceed ASME B30.1
