BVA Hydraulics – High Tonnage Hydraulic Jacking Cylinders

BVA Hydraulics H Series single-acting, spring return hydraulic cylinders are available in 42 different standard models ranging from 2 – 100 tons capacity with a 10,000 psi maximum pressure rating.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics H2514 Custom Hydraulic Jacking Cylinder.

  • 25 Tons Lifting Force – each @9,708 p.s.i.
  • Single acting, spring return.
  • 18.74″ Retracted length.
  • 14.02″ Stroke.
  • High-strength aluminum alloy piston bearing for added cylinder wall protection.
  • A CH38F quick disconnect coupler is included with all BVA Hydraulics H Series hydraulic cylinders.
  • 38 Lbs.

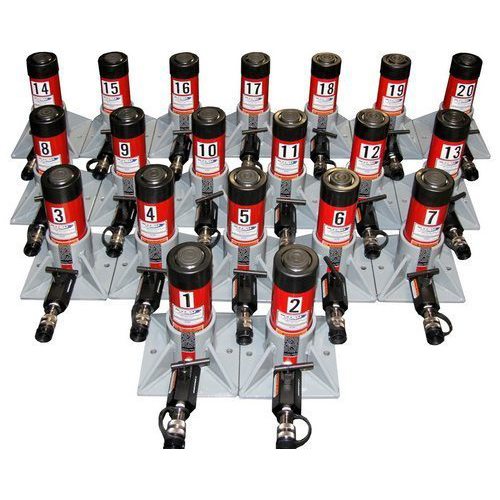

Shown with custom design base support and manually operated, load holding check valve installed into the working port.
