BVA Hydraulics, PE Series 10,000 PSI, Electric Hydraulic Pumps

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA PE40S3L02A-SPL Electric Hydraulic Pump.

  • 10,000 psi Maximum Pressure.
  • 120 VAC, 1 Ph., 60 Hz.
  • 100% Duty Cycle, NEMA 5 Enclosure, TEFC electric motor.
  • 311 cu.” of oil per minute 0 – 700 psi (1st Stage).
  • 37 cu.” of oil per minute 701 – 10,000 psi (2nd Stage).
  • Internal bypass relief valve.
  • 3 Way, 3 Position, tandem center, solenoid-operated. locking directional valve.
  • Handheld Advance/Retract 24 vac, push button pendant.
  • Two gallons, steel, vented oil reservoir w/sight glass.
  • OSHA compliant 80 dBA.

The PE30, 40, and 50 Series of electric hydraulic pumps from BVA Hydraulics offer versatility and rugged performance spanning 120 standard models.  The modular design allows for design modifications in function, performance, and reservoir volumes up to 40 gallons.

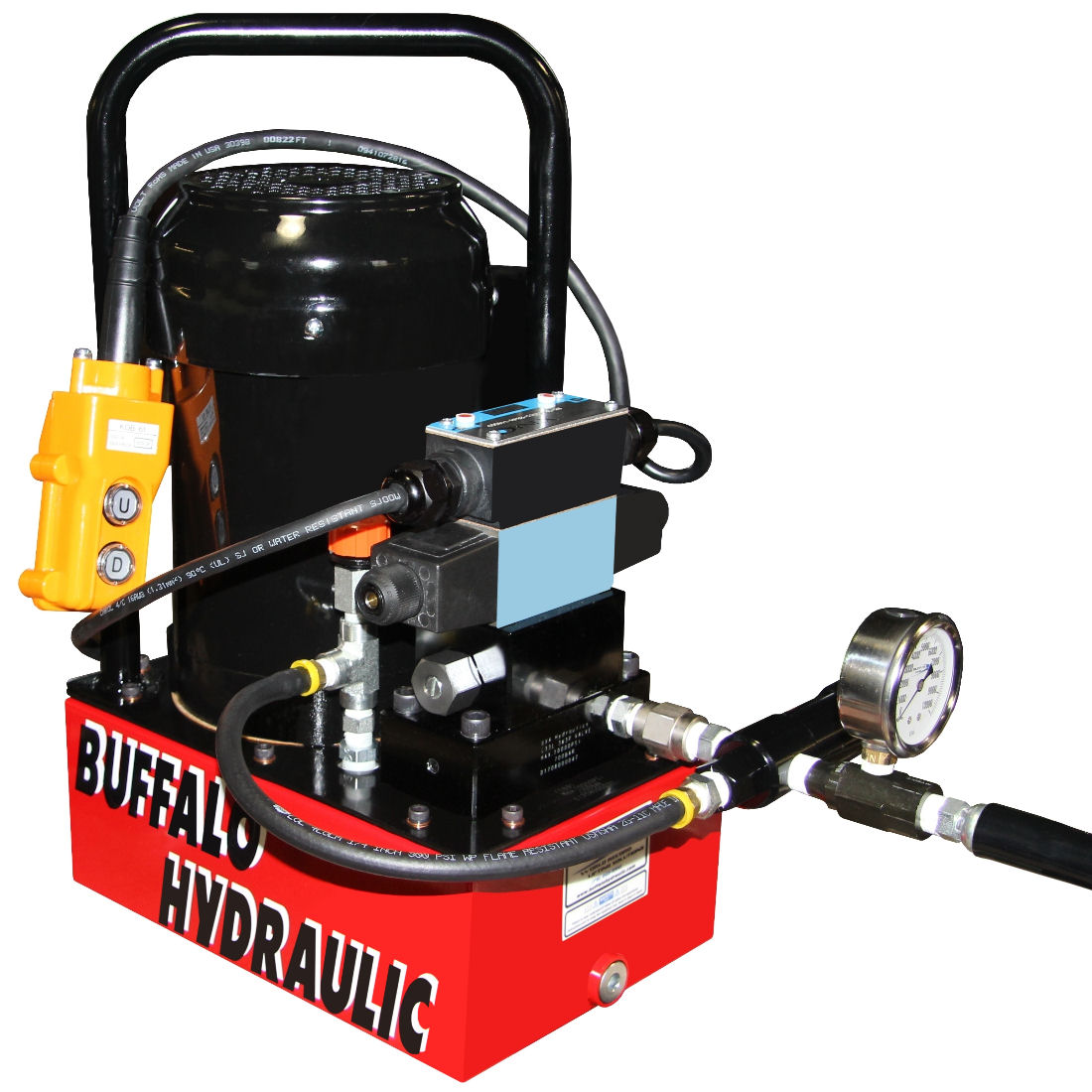

Shown, equipped with a manually adjustable relief valve and glycerin-filled, NIST Certified pressure gauge.
