BVA Hydraulics PG70M4N5 Gas Engine Hydraulic Pump.
Inquire about BVA Hydraulics PG70M4N5 Gas Engine Hydraulic Pump.

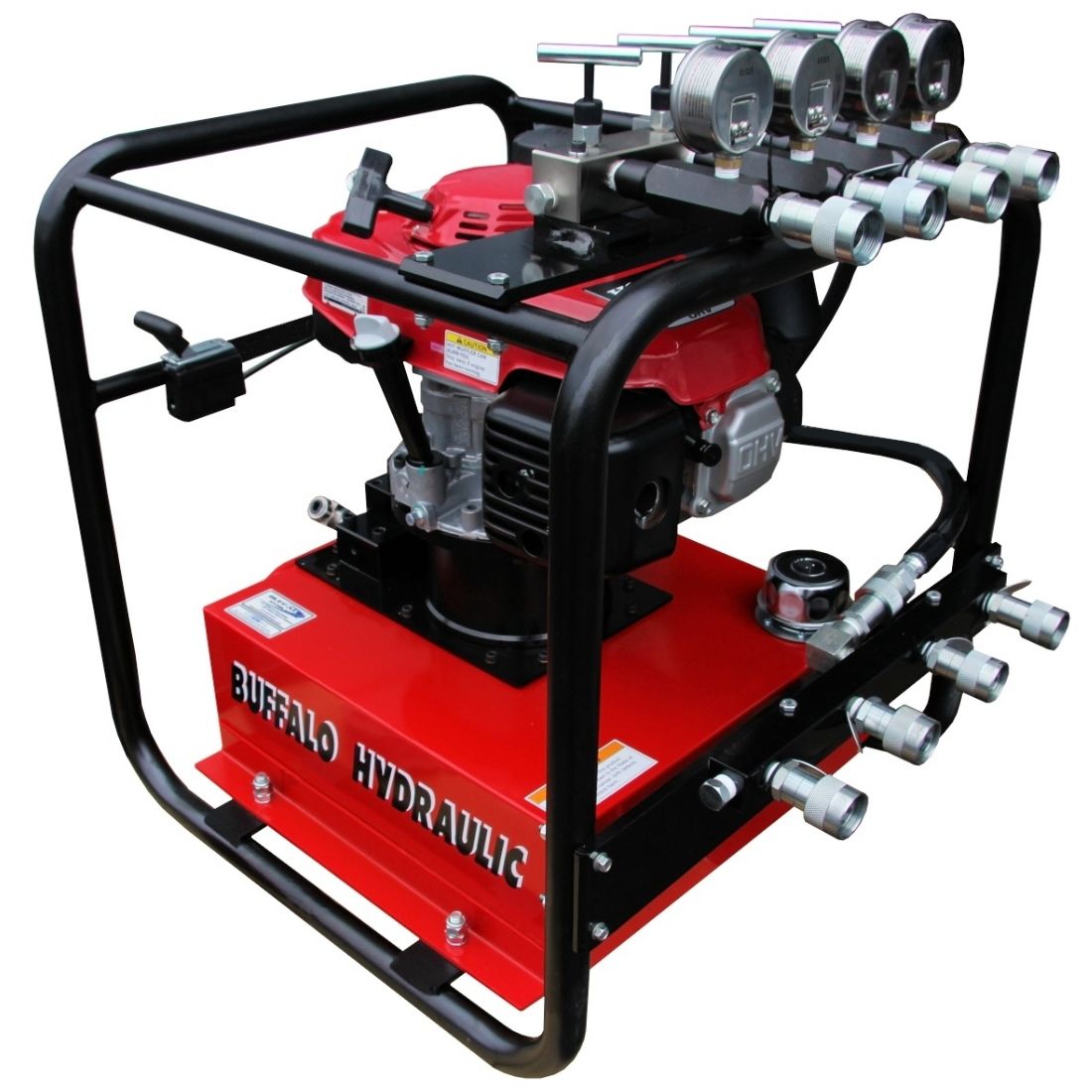

BVA Hydraulics PG70M4N5 Gas Engine Hydraulic Pump.
- 10,000 p.s.i. gasoline engine-driven hydraulic jacking system power unit.
- 5.5 Hp Honda, easy-start engine.
- Two-speed design provides jacking cycle efficiency.
- All steel construction, 5-gallon oil reservoir.
- Internal relief valve.
- Oil-level sight glass.
- Manually operated 4-way, 3-position (Advance-Hold-Retract) directional valve.
- Custom-built, 4-port Advance and Retract manifolds, shown.
- Four manually operated needle flow control valves allow independent, finite Advance control.
- Glycerin-filled pressure gauges provide clear and concise pressure monitoring while jacking.
- Equipped with four, individually numbered, Advance circuit quick-disconnect couplers.
- Equipped with four, individually numbered, Retract circuit quick-disconnect couplers.
Serving as the workstation, console of a 220 tons-capacity jacking system, this modular design is easily customized to meet the requirements of your multi-point jacking system.
With 100’s of jacking cylinders available, Buffalo Hydraulic has a solution that will provide a safe and efficient response to your most challenging high-tonnage lifting project.
