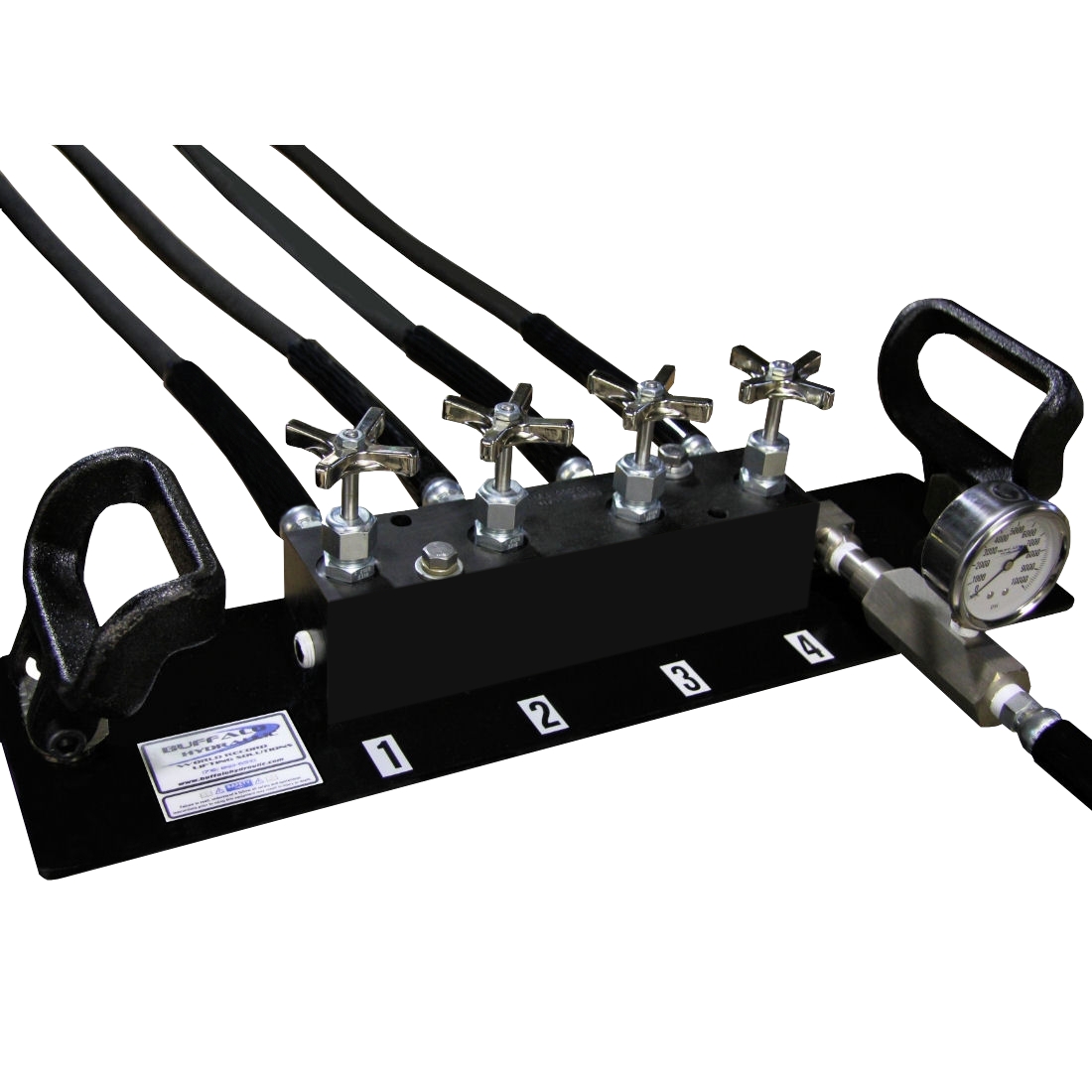

SPX Power Team Manifold Complete With Integrated Needle-Flow Control Valves.
10,000 p.s.i. Maximum operating pressure.
Seven 3/8″ Female N.P.T. working ports.
Four built in needle valve for independent flow regulation.
Oil, much like electricity, will flow the path of least resistance. This condition is known as Pascal’s Law.
When forces are differing across several points of a multi-point system, regulating flow can be accomplished easily and precisely using this style of manifold. Incorporating load holding, check valves at each cylinder will maintain any flow adjustments that have been made back at the manifold. Using a modular design, this manifold can be increased in increments of two circuits – to as many as is required.
Scheduling time-outs, evaluating the lifting points through accurate measurements and making any necessary adjustments will ensure a safe and level lift is obtained.
