Buffalo Hydraulic Custom Electric-Hydraulic Pump

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

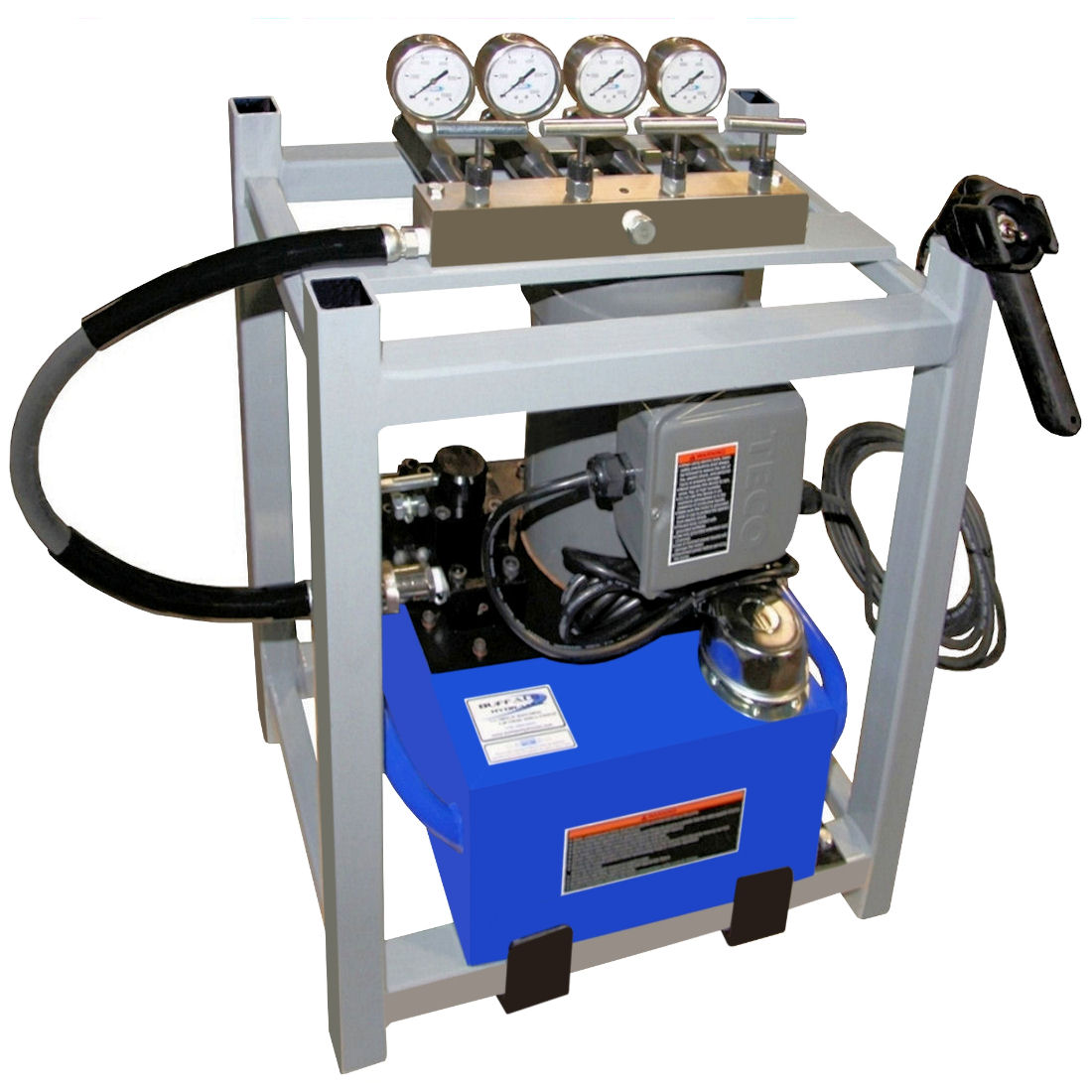

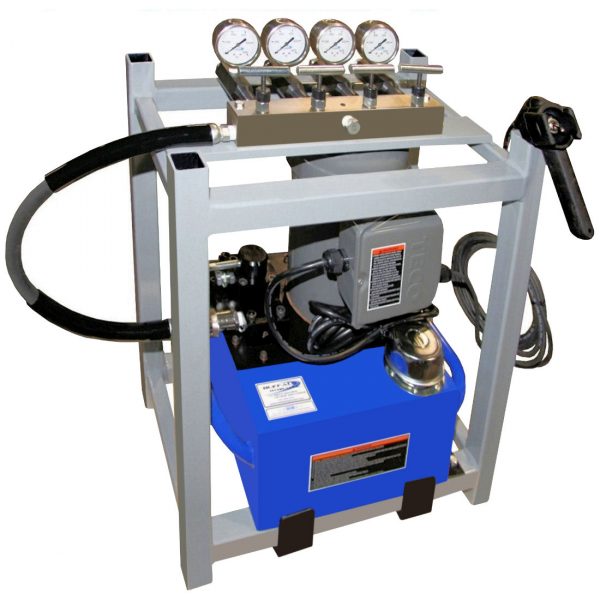

BVA Hydraulics PE50W3N05A Electric Hydraulic Jacking Station

  • 10,000 psi maximum operating pressure.
  • 115 VAC, 1 Ph., 60 Hz., 1½ Hp.
  • 5 Gallons of useable oil volume.
  • 3 Position (Advance-Hold-Retract) Manually operated directional valve.
  • 4 Port manifold with four metering/flow control valves.
  • Manual. finite independent flow control to four jacking cylinders.
  • Four glycerin-filled pressure gauges.
  • 10′ Hand-held motor control pendant.
  • 476 cu.” Of oil per minute from 0 – 700 p.s.i. (1st Stage).
  • 61 cu.” Of oil per minute from 701 – 10,000 p.s.i. (2nd Stage).
