Buffalo Hydraulic Custom Hydraulic Press

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

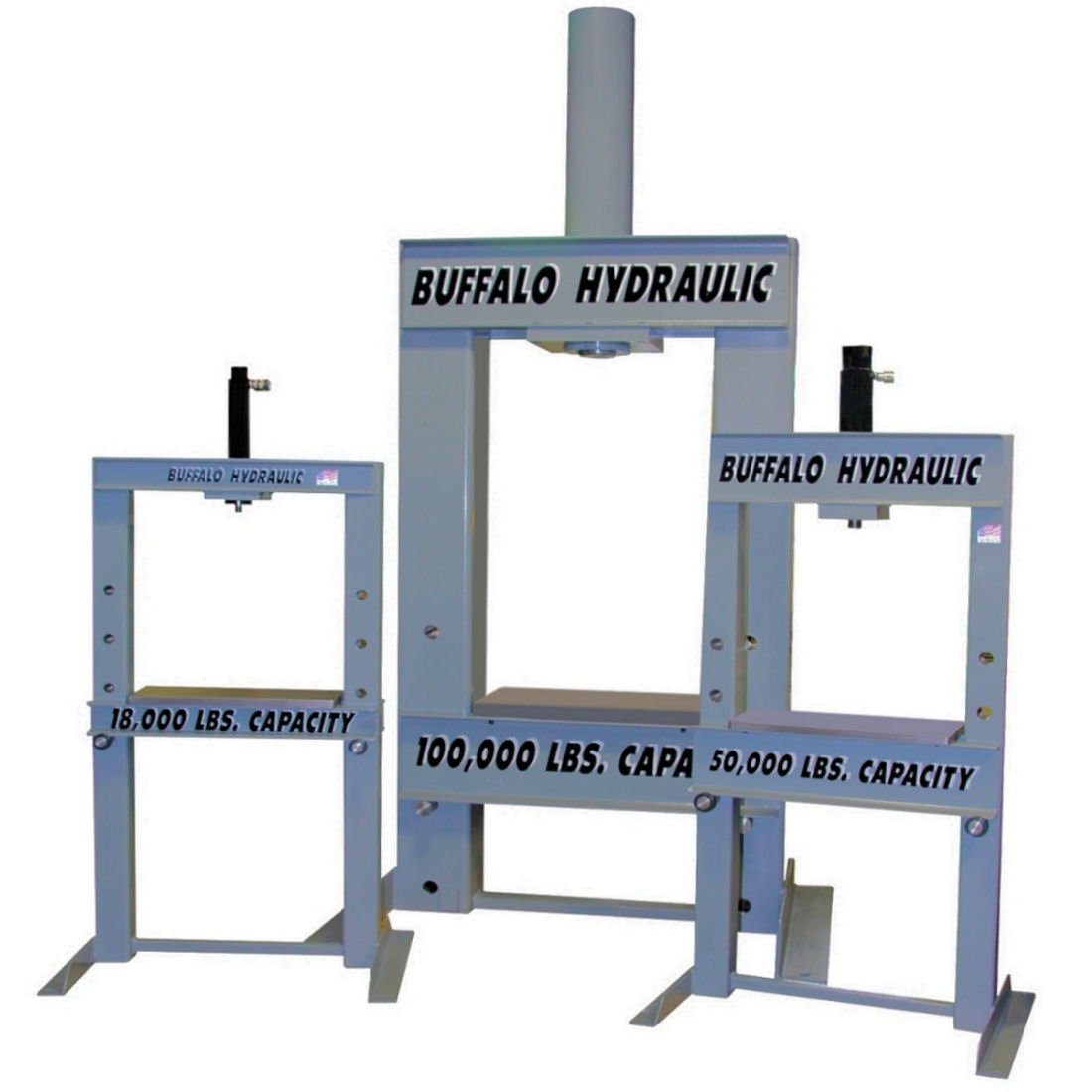

Buffalo Hydraulic BHEHP09X06.13-SPL  Hydraulic Press-1

  • 18,000 Lbs. Maximum force.
  • Double acting (Advance-Retract).
  • 6.13″ Stroke/travel.
  • 26.00″ Horizontal opening.
  • Precision ground base plate.
  • 4 Position, adjustable lower bed.
  • High cycle performance.

Buffalo Hydraulic BHEHP25X06.25-SPL  Hydraulic Press-1

  • 50,000 Lbs. Maximum force.
  • Double acting (Advance-Retract).
  • 6.25″ Stroke/travel.
  • 28.00″ Horizontal opening.
  • Precision ground base plate.
  • 4 Position, adjustable lower bed.
  • High cycle performance.

Buffalo Hydraulic BHEHP50X32.00-SPL  Hydraulic Press-1

  • 460 V.A.C., 3 ph., 60 Hz.
  • 100,000 Lbs. Maximum force.
  • Double acting (Advance-Retract).
  • 32.00″ Stroke/travel.
  • Collar thread flange mount.
  • 40″ Horizontal opening.
  • 4 Position, adjustable lower bed.
