BVA Hydraulics 10,000 PSI Air Hydraulic Pumps

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

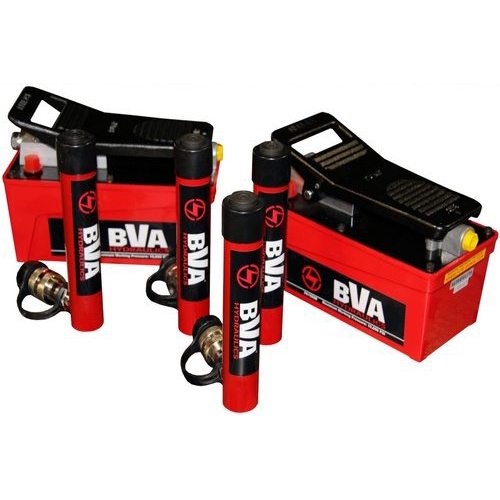

BVA Hydraulics PA1500B 10,000 PSI Air Hydraulic Pumps

  • 110 – 175 p.s.i.  Input shop air.
  • 10,000 p.s.i. Output hydraulic pressure.
  • 66 cu.” Of oil per minute under no load.
  • 11 cu.” Of oil per minute under load.
  • 91 cu.” Useable oil volume.
  • Internal relief valve.
  • High-strength alloy reservoir.

BVA Hydraulics H0505 Single Acting, Spring Return Hydraulic Cylinders

  • Spring return design.
  • 8.7″ Retracted height.
  • 5.08″ Stroke/travel.
  • 5 Tons capacity @10,000 p.s.i.
  • Ø1.50″ Diameter.
  • 3.93 Lbs.
