BVA HLN15002 Hydraulic Jacking Cylinders.

• 150 tons capacity each (600 tons total) @9,627 p.s.i.
• Single acting, load return.
• Lock-nut design offers mechanical load holding.
• Engineered to support loads without hydraulic pressure.
• Optional swivel load cap, tilt saddles available on 55, 100, 150 and 200 tons capacity models.
• 8.23″ Retracted height.
• 1.97″ Stroke/travel.
• 116 Lbs. each.

With (30) standard models to choose from, this HLN Series of BVA High Tonnage, Hydraulic Jacking Cylinders is a very rugged and versatile design.  As with any of our cylinders, custom models are available to suit your most unique requirements.

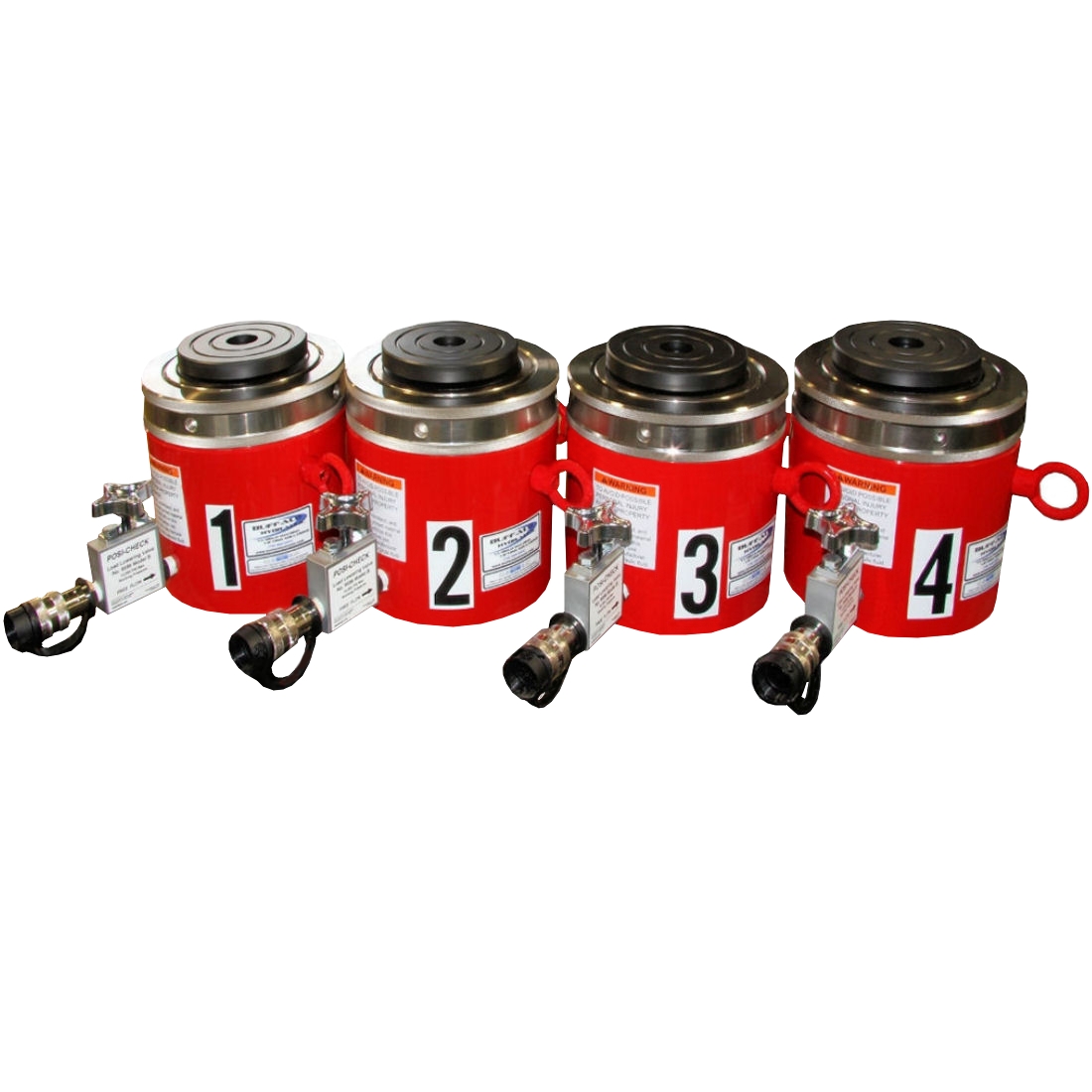

An engineered, mating lock nut is screwed down against the cylinder body as the plunger rises creating mechanical cribbing support.   Shown equipped with 5 degree tilt, swivel saddles and Power Team  9596 manually operated, load holding check valves.

Utilizing lock nut style jacking cylinders, tilt saddles and load holding valves provides three very important safety features for any lifting project!

All BVA Hydraulic Cylinders meet or exceed ASME B30.1 design specifications.
