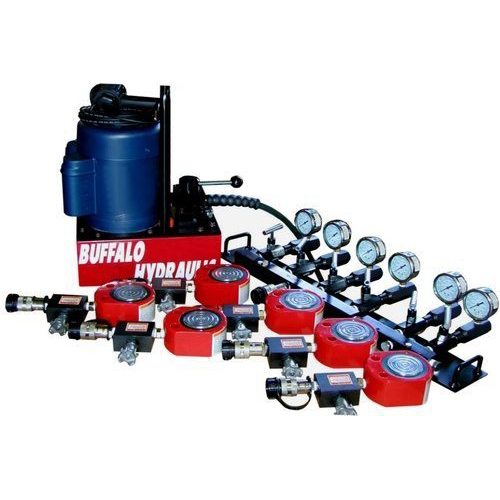

BVA Hydraulics High Tonnage Hydraulic Jacking System
With differing global-operating voltages, standard and custom reservoirs, manual and solenoid operated directional valves, multi-port manifolds, and jacking cylinders ranging from 1 – 1,000 tons force, Buffalo Hydraulic has the resources and experience to design a jacking system to meet your most challenging lifting application.
All BVA Hydraulics products are manufactured in accordance with the strict management, manufacturing, and production control of ISO 9001.
Inquire about BVA Hydraulics High Tonnage Hydraulic Jacking System
BVA Hydraulics High Tonnage Hydraulic Jacking System
- 115 VAC, 1 Ph., 60 Hz., electric hydraulic jacking system.
- 3-way, 3-position, manually operated directional valve.
- Advance-Hold-Retract function.
- 10′ hand-held momentary motor control pendant.
- High flow, 2-speed design.
- 290 cu.” of oil flow per minute from 0-350 psi (1st stage).
- 18 cu.” of oil flow per minute from 350 – 10,000 psi (2nd stage).
- 10,000 psi maximum pressure.
- Internal pre-set pressure relief valve.
- 6 low-profile jacking points of lift.
- Single-acting, spring return jacking cylinders.
- 20 Tons of lifting force per jacking cylinder at 9,133 psi (120 tons combined).
