BVA HL10002 Low Profile Hydraulic Cylinder.

• 98.2 Tons each @10,000 p.s.i.
• 5.55″ Collapsed height.
• 2.24″ Stroke/travel.
• Low Profile, single acting, spring return.
• 45 Lbs.

BVA HG10006  Hydraulic Cylinder.

• 100 Tons capacity each @9,722 p.s.i.
• 11.10″ Collapsed height.
• 5.91″ Stroke/travel.
• Single acting, load return.
• 87 Lbs.

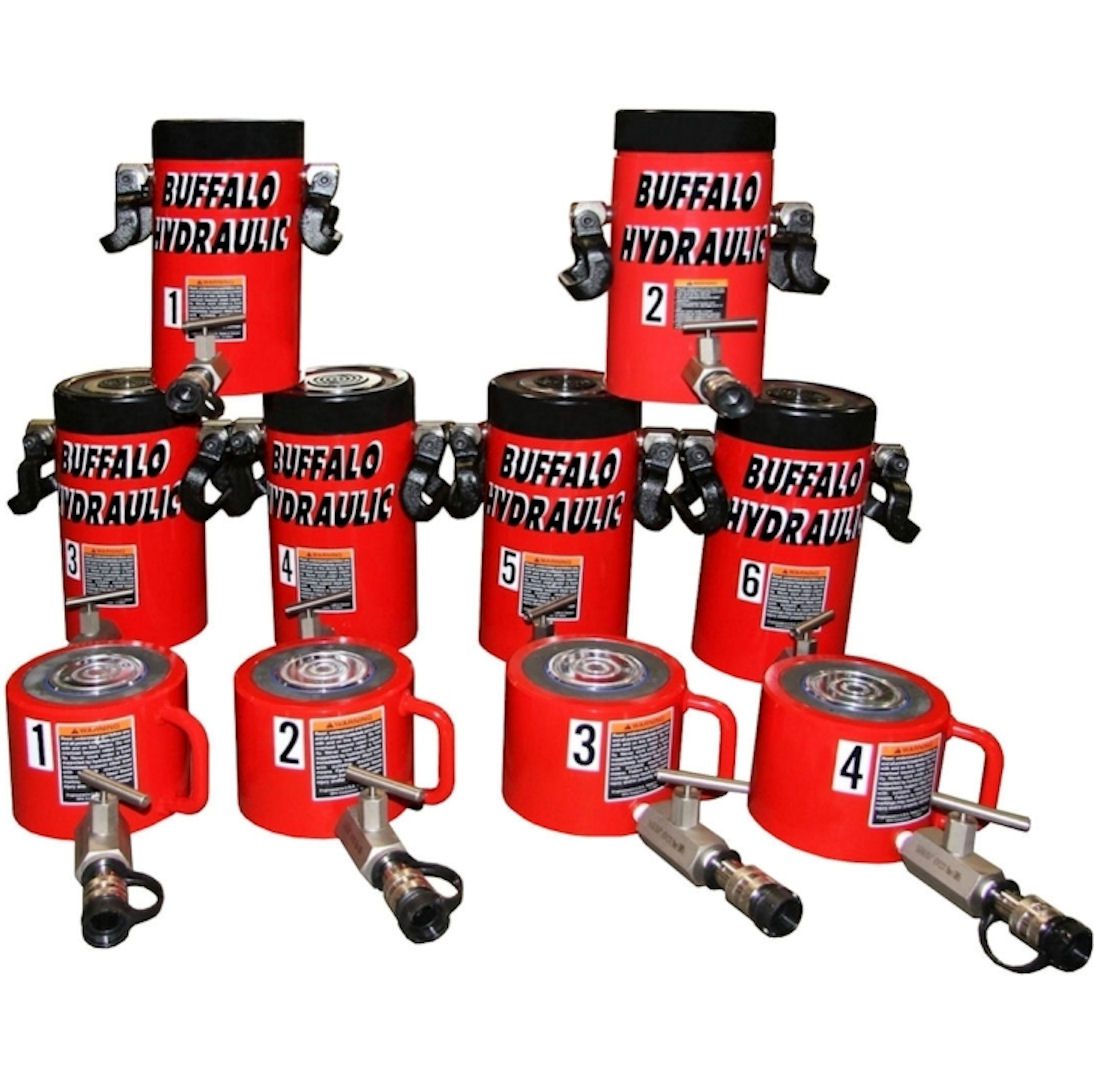

With a combined jacking force of 992.8 tons and equipped with manually operated, load holding check valves, this assembly of high tonnage jacking cylinders were used on a high profile bridge beam modification project.

The BVA HG Series of single acting, high tonnage hydraulic cylinders offer a wide range of models from 100 – 1,000 tons capacity.  All BVA Hydraulic cylinders are designed and manufactured to comply with ASME B30.1 International Quality Assurance System standards.
