BVA Hydraulics, H2508, 25 Tons Capacity, Hydraulic Jacking Cylinders

BVA Hydraulics, H-Series of high-pressure, high-tonnage hydraulic cylinders are offered through (42) standard models, ranging from 2 – 100 tons capacity.

All BVA Hydraulics products adhere to ISO9001 Quality Assurance Standards.

All BVA Hydraulics cylinders are designed, manufactured, and tested to meet or exceed ASME B30.1 standards and are covered by BVA Hydraulics Limited Lifetime Warranty.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics, H2508, 25 Tons Capacity, Hydraulic Jacking Cylinders

  • 10,000 psi Maximum pressure.
  • Single-acting, spring return design for use in any position.
  • 50,000 lbs./force (25T) @9,709 psi.
  • 12.72″ Retracted height.
  • 8.11″ Stroke/travel.

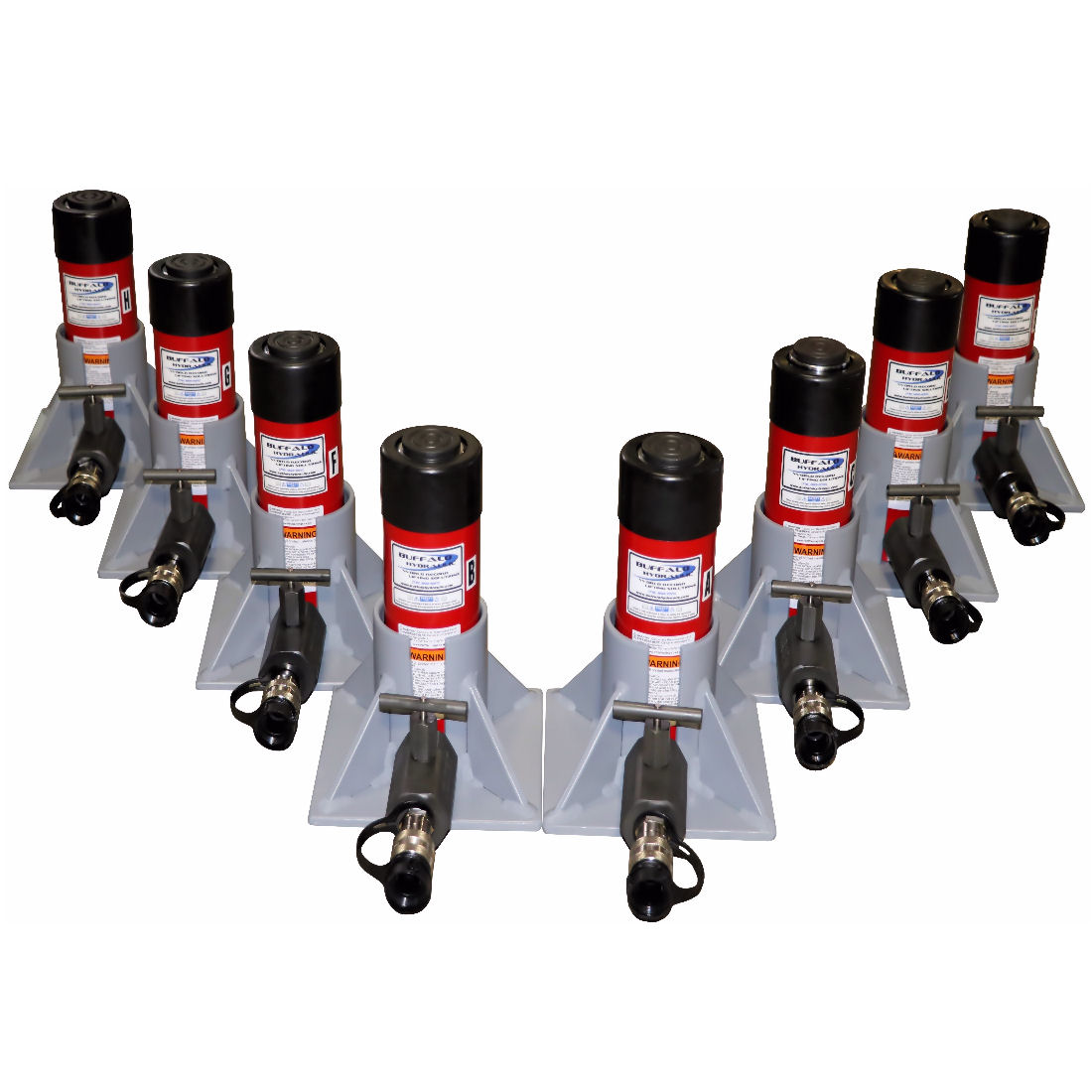

  • Shown, equipped with custom base support for added stability.
  • Optional CVMS3, manually operated, load holding valve installed in the working port of each cylinder shown.
  • Engineered 3 5/16″ 12, rod end collar thread for fixture mounting.
  • 1/2″, 13 base mounting holes to accept base plate support.
  • Industrial hard chrome plunger on all H-Series hydraulic cylinders.
  • CH38F female half quick disconnect coupler standard on all models except H0500 (CRZ14F).
