BVA Hydraulics, HDC10003, 100T Capacity, Through Hole Cylinder

BVA Hydraulics HDC Series of double-acting, through-hole cylinders are offered in (10) standard models ranging from 30 – 150 tons capacity.

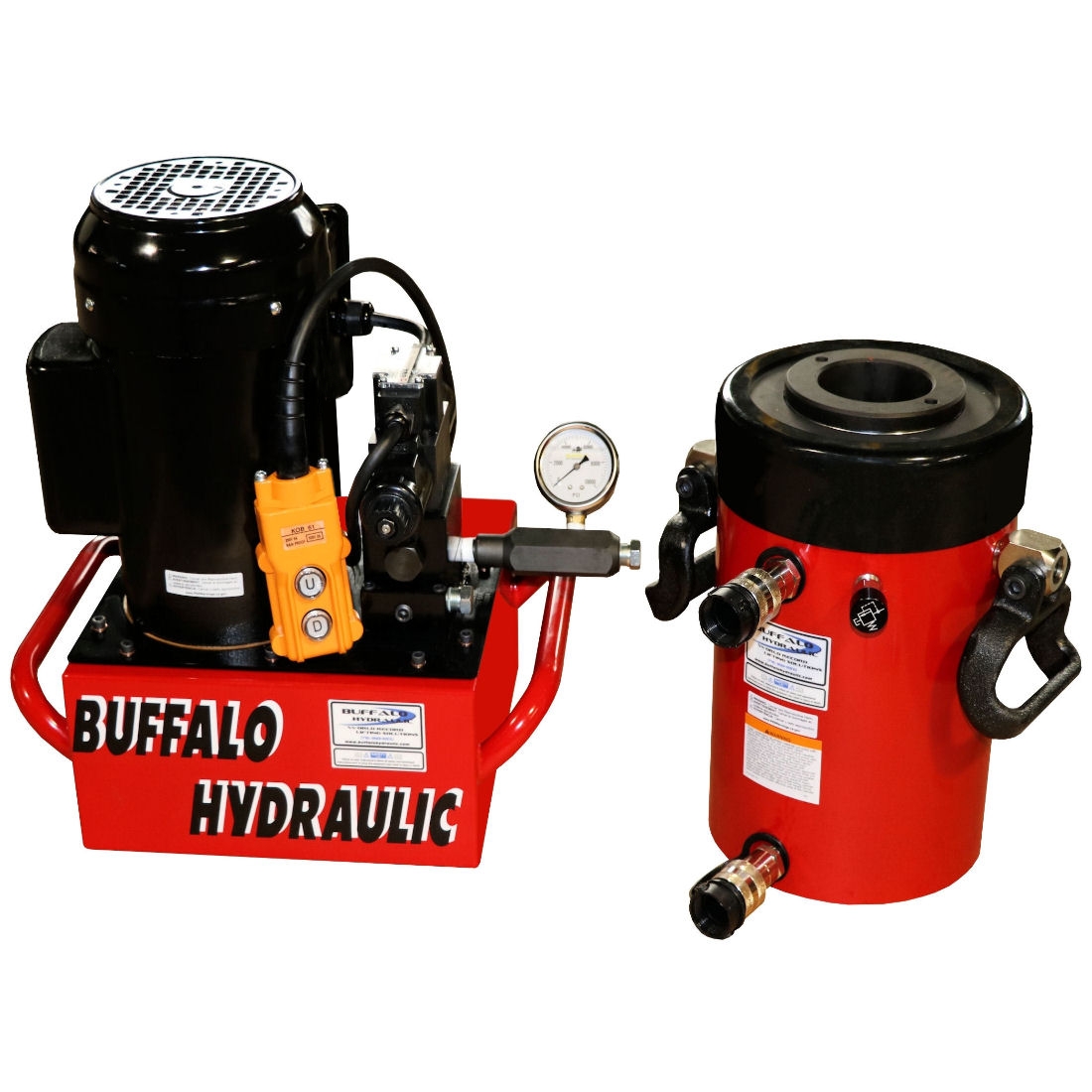

This system was supplied for use in tension testing the epoxy bond to bridge anchors with a required pass/fail value of 155,000 lbs. force.

All BVA Hydraulics cylinders are designed, manufactured, and tested in compliance with ISO 9001 and ASME B30.1 standards and are covered by the BVA Limited Lifetime Warranty.

Buffalo Hydraulic has been selling and servicing high-pressure, high-tonnage hydraulic components and systems for over 80 years and serves as a proud partner to BVA Hydraulics as a Factory Authorized Distributor as well as a Factory Authorized Warranty/Service Center.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics, HDC10003, 100T Capacity, Double Acting, Through Hole Cylinder

  • 10,000 psi maximum pressure.
  • Double-acting design.
  • 200,000 lbs. capacity (100T) @9,038 p.s.i.
  • 10.00″ Retracted height.
  • 3.00″ Stroke.
  • Ø3.11″ Diameter through hole.
  • Ø8.39″ Outside diameter.
  • A rod end relief valve is standard on all BVA Hydraulics HDC Series cylinders.
  • 114 Lbs.  Each.

All HDC Series through-hole cylinders are equipped with BVA Hydraulics CH38F quick disconnect coupler in the Advance & Retract ports.
