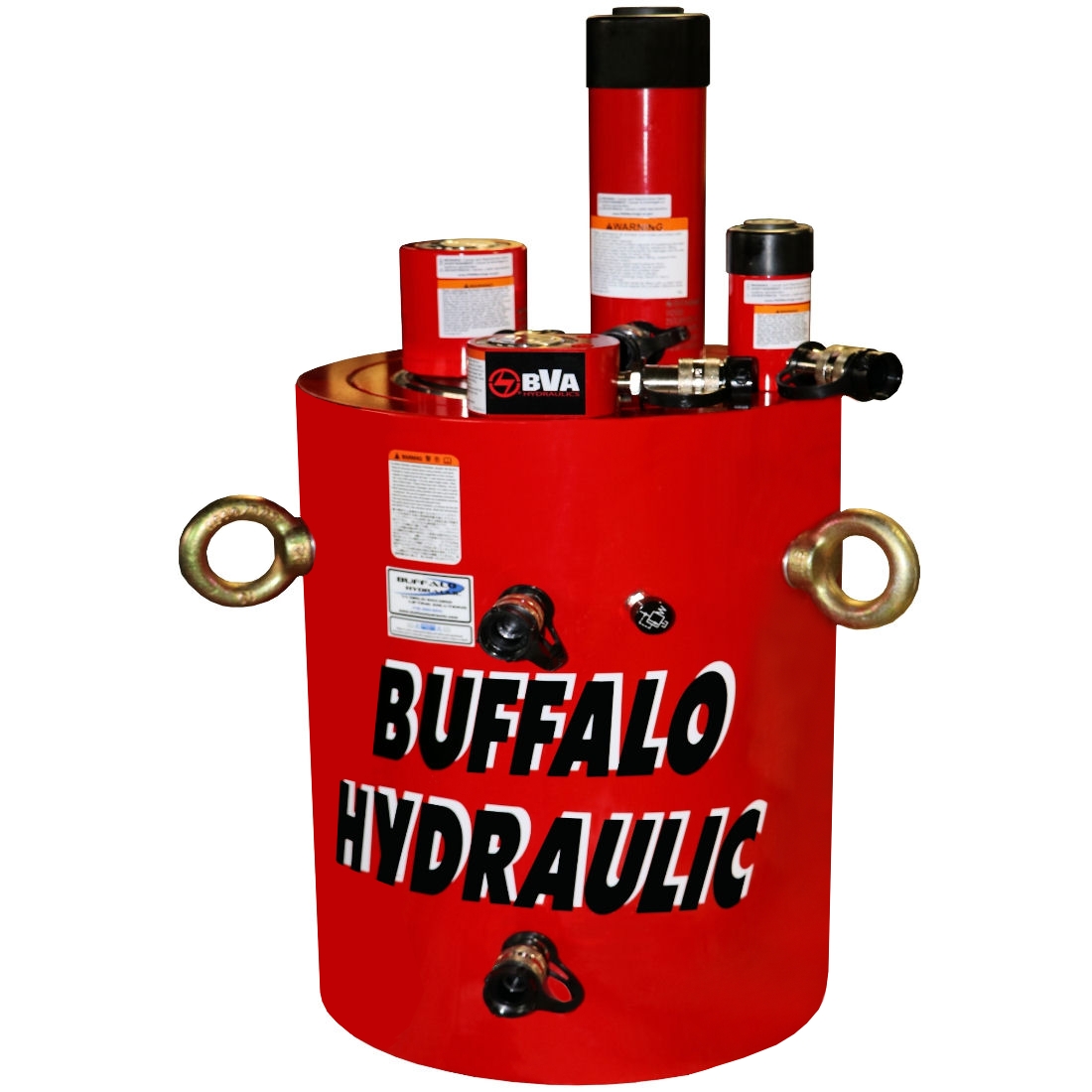

BVA Hydraulics HDG30006, 300 Tons Capacity, Hydraulic Jacking Cylinder

BVA Hydraulics, HDG Series of high tonnage hydraulic cylinders are offered in 35 standard models ranging from 100 – 1,000 tons capacity.  Custom models through 1,500 tons are also available upon request.

All BVA Hydraulics cylinders are designed, built, and tested in compliance with ASME B30.1 and are covered by BVA Hydraulics Limited Lifetime Warranty.

Buffalo Hydraulic proudly serves in partnership with BVA Hydraulics as a Factory Authorized Stocking Distributor as well as a Factory Authorized Warranty Service Center.  With over 80 years of high-pressure, high-tonnage hydraulics experience, Buffalo Hydraulic is glad to offer technical support for your project through a system that will provide as many jacking points as your requirements define.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HDG30006, 300 Tons Capacity, Hydraulic Jacking Cylinder

    • 10,000 psi maximum operating pressure.
    • 707,100 lbs. force – 353.55T (Advance) at 10,000 psi.
    • Double-acting design.
    • 5.91″ Stroke/travel.
    • ø 7.76″  Industrial hard chrome plunger.
    • ø 9.49″ Precision burnish rolled internal bore.
    • ø 12.20″ Outside diameter.
    • 511 lbs.
    • Rod-end relief valve standard on all HDG Series cylinders.
    • Advance and retract quick disconnect couplers are included and installed on all models.
    • Engineered lifting eyes for positioning on the job site.
    • 35 – Standard HG Series, single-acting jacking cylinders ranging from 100 – 1,000 tons capacity.
    • 35 – Standard HDG Series, double-acting jacking cylinders ranging from 100 – 1,000 tons capacity.
