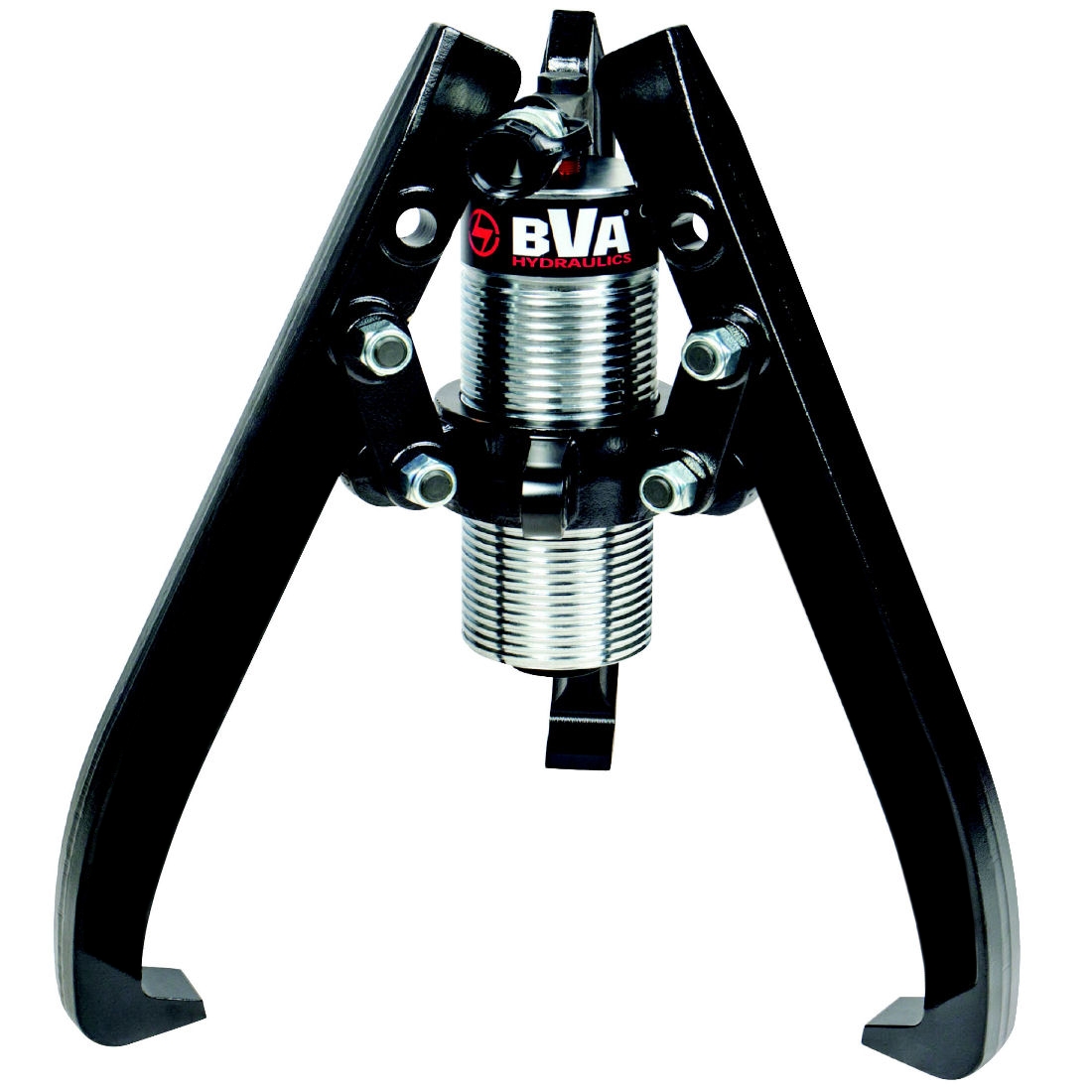

BVA Hydraulics HGPT30, 30 Tons Capacity, 3-Jaw, Hydraulic Gear Puller
BVA Hydraulics HGPT Series, 3-jaw, hydraulic pullers are offered through (5) standard models ranging from 6 – 50 tons capacity. Combined with a BVA Hydraulics 10,000 psi hydraulic pump this family of gear pullers will provide a rugged and efficient solution to your most challenging pulling requirements.
Inquire about BVA Hydraulics HGPT30, 30 Tons Capacity, 3-Jaw, Hydraulic Gear Puller
BVA Hydraulics HGPT30, 30 Tons Capacity, 3-Jaw, Hydraulic Gear Puller
- 30 Tons pulling capacity.
- 3-Jaw design.
- 4.37″ Stroke.
- 12.40″ Maximum reach.
- 20.20 Maximum reach.
- High-strength, forged puller body, with integral safety valve.
- Heat-treated, forged alloy steel components with manganese phosphate coating for increased corrosion & wear resistance
- For use with a 10,000 psi BVA Hydraulics hand, air, or electric-hydraulic pump (Not included).
