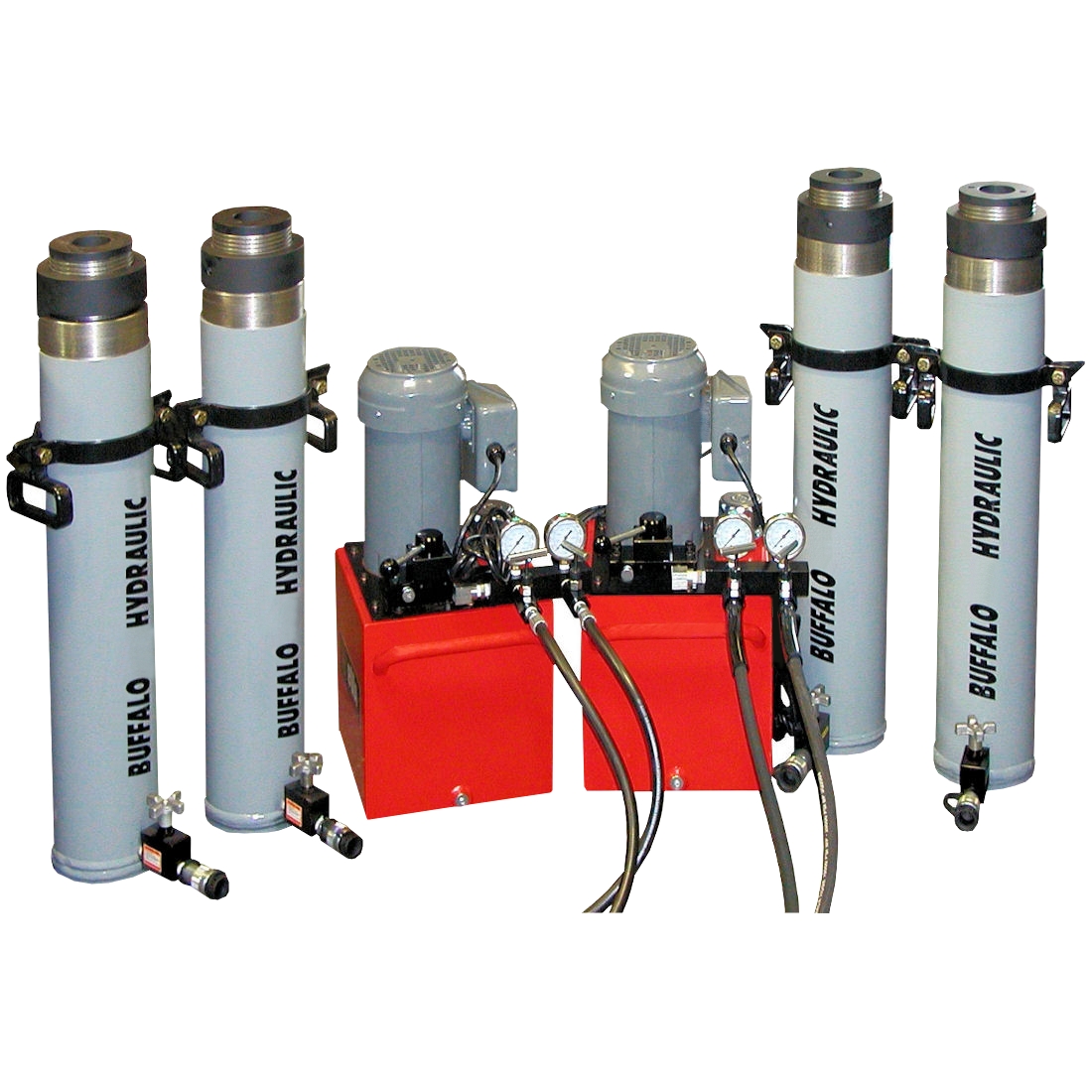

Buffalo Hydraulic Through Hole Lock Nut Cylinders

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BHCSY60X4-24.00-SPL

BVA Hydraulics PE50W4N05A Electric Hydraulic Pumps.

  • 115 VAC, 1 Ph., 60 Hz.
  • High capacity, 2-stage design.
  • 3-Way, 3-Position manually operated directional valve.
  • 10 Gallons reservoir volume.
  • 10′ Hand-held remote control push button pendant.
  • Dual flow, metered manifold.
  • Glycerin-filled pressure gauge.

Buffalo Hydraulic BHSALN-60X24-SPL Custom, Through Hole, Lock Nut, Hydraulic Jacking Cylinders.

  • Hollow plunger, lock nut, through-hole design.
  • 60 Tons capacity each @10,000 psi – maximum pressure.
  • 24.00″ Stroke/travel.
  • 2 1/4″ Plunger through hole design.
  • Manually operated load-holding check valve.
  • Mating lock nut for extended load holding quality.

The total force required for this bridge-bearing replacement project was 190 tons over four lifting points.  The innovative through-hole, lock-nut, and long-stroke design provided a smooth, safe, and efficient lift to complete this project.
