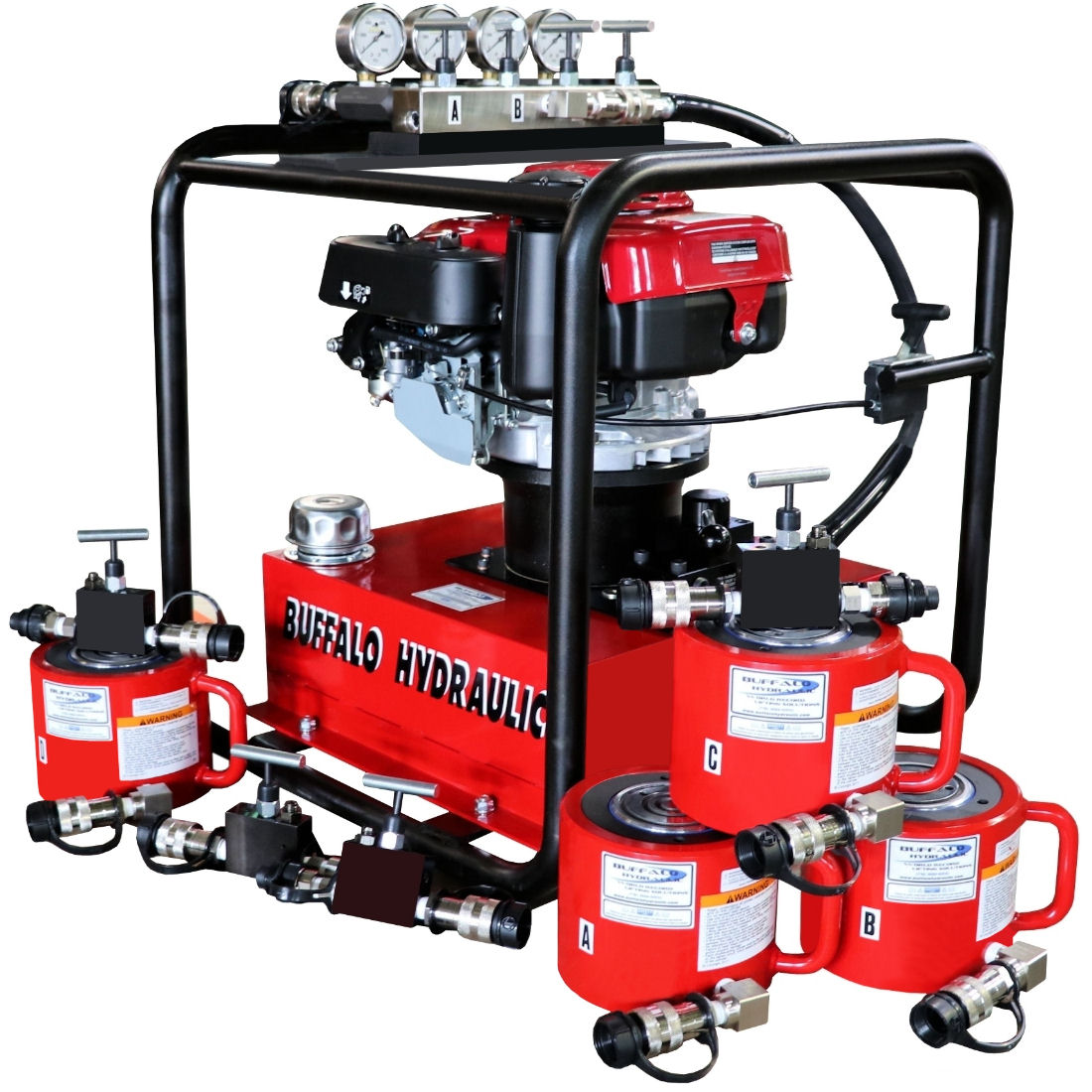

BVA Hydraulics, Honda Gas Engine, High Tonnage, Hydraulic Jacking System

                          PG70M3N05

• 10,000 psi maximum operating pressure.
• Internal bypass relief valve.
• 5.5 Hp Honda gasoline engine.
• 700 cu.” of oil per minute 1st Stage.
• 100 cu.” of oil per minute @10,000 psi – 2nd Stage.
• 3/way, 3/position (Advance-Hold-Retract) manually operated directional valve.
• 5 Gallons oil reservoir.
• Rollbar assembly is included on all models.
• For use with 10,000 psi rated single-acting hydraulic cylinders.
• Optional 4-port manifold, manually operated – load holding check valves, 100T capacity, low profile jacking cylinders, and NIST Certified, glycerin-filled pressure gauges are shown.
• PG70M4N05 is offered for use with 10,000 psi rated, double-acting hydraulic cylinders.
