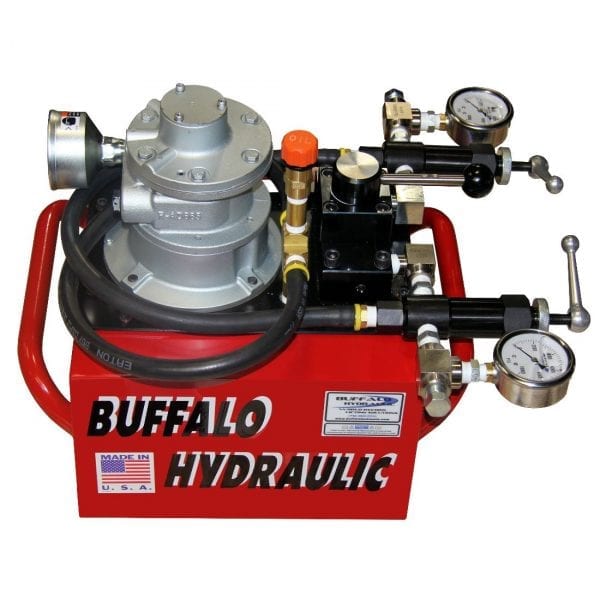

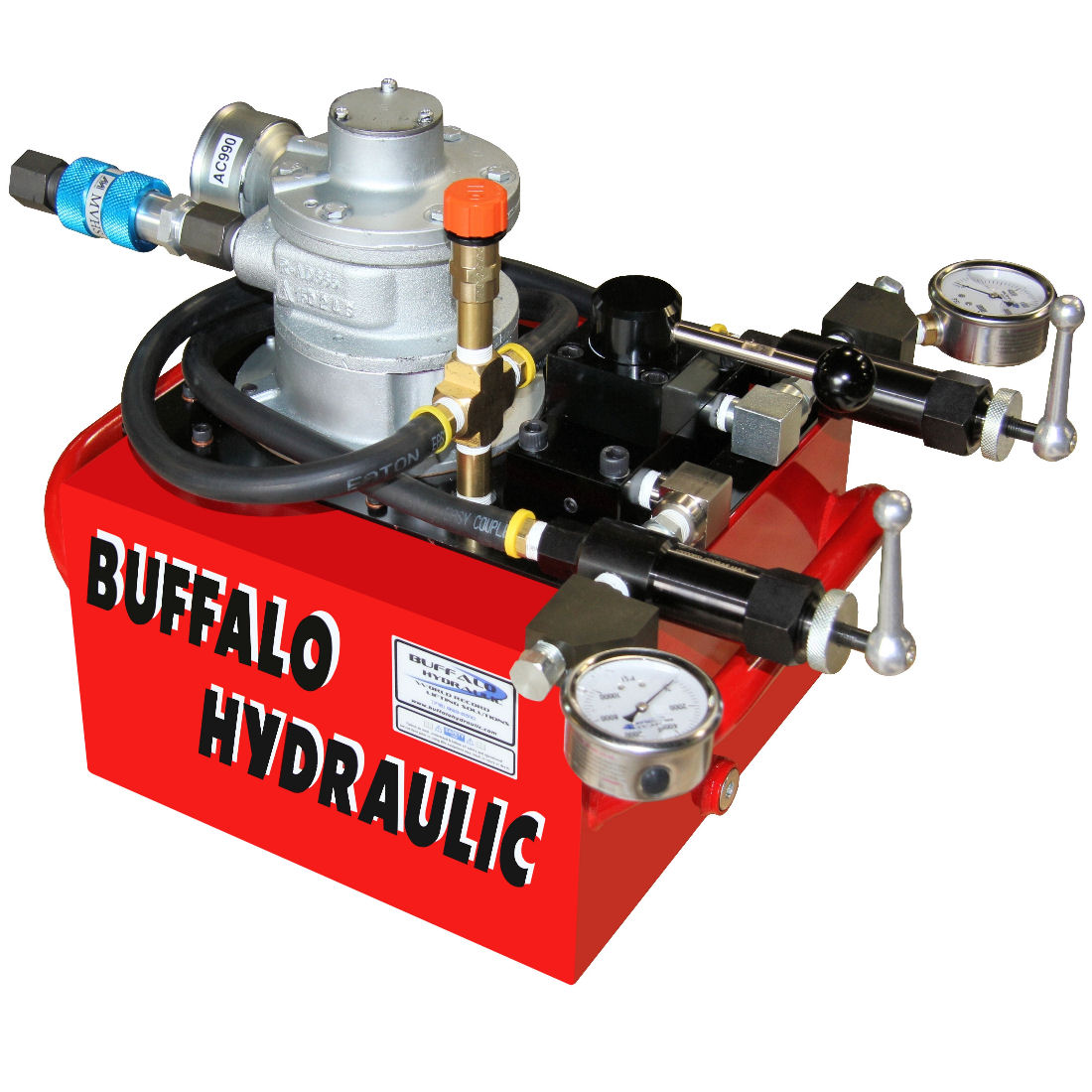

BVA Hydraulics PARM4003D Air Hydraulic Pump

BVA Hydraulics PAR Series of air hydraulic pumps offer high flow rates at 10,000 psi along with larger reservoir volumes and a variety of directional valve options.

Buffalo Hydraulic proudly serves as a Factory Authorized BVA Hydraulics Stocking Distributor as well as a Factory Authorized BVA Hydraulics Warranty Service Center.

We welcome the opportunity to work with you to ensure that your high-pressure air hydraulic system performs as intended.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics PARM4003D Air Hydraulic Pump

  • 10,000 psi maximum pressure.
  • 2-Stage design.
  • 512 cu.” of oil per minute from 0-700 psi (1st Stage).
  • 70 cu.” of oil per minute from 700 – 10,000 psi (2nd Stage).
  • Internal relief valve.
  • High-flow 4 Hp. rotary air motor.
  • 95 cfm 60-100 psi air requirement.
  • 3 Gallons (693 cu.”) oil reservoir.
  • 4-way, 3-position (Advance-Hold-Retract) manually operated directional valve.
  • Shown equipped with BVA Hydraulics CVR3 adjustable external relief valve assemblies on the Advance and Retract circuits for finite system pressure settings.
  • Glycerin-filled, NIST Certified pressure gauges are also shown on the Advance and Retract circuits.
  • 8 standard models are of this PAR Series high volume, 10,000 psi, air-hydraulic available.
