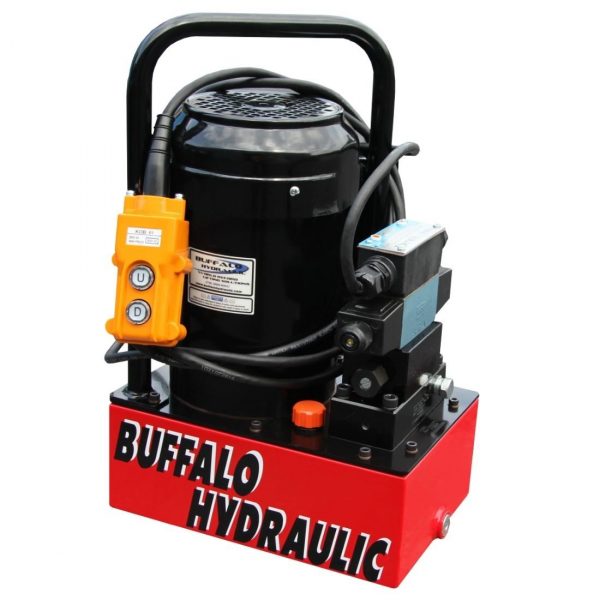

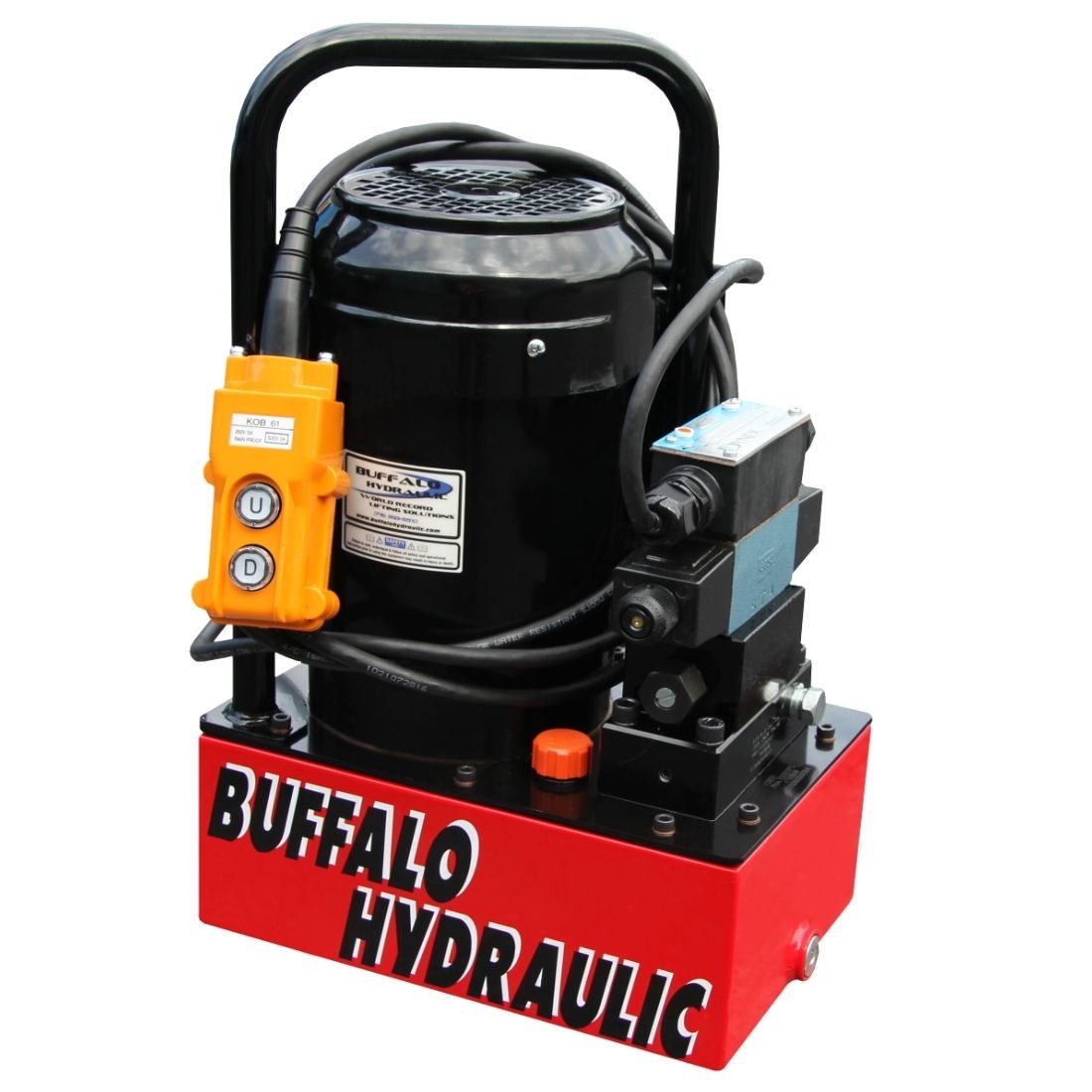

BVA PE30 Series Electric Hydraulic Pumps

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

BVA,  PE30 Series,  Electric Hydraulic Pumps.

  • 10,000 p.s.i. maximum operating pressure.
  • 120 VAC, 1 Ph., 60 Hz. and 230 VAC, 1 Ph., 50 or 60 Hz. models to choose from.
  • High flow, 2-stage design.
  • 293 cu.” of oil per minute from 0 – 350 p.s.i. (1st Stage).
  • 18 cu.” of oil per minute from 351 – 10,000 p.s.i. (2nd Stage).
  • 10′ Hand held pendant control.
  • 1 – 40 Gallon reservoir options.
  • Wireless control, foot switch operation and pressure switch features available on solenoid valve models.

Whisper quiet, OSHA approved sound level of 80 dBA.  Suction strainers and internal relief valve are standard on all models.  NEMA 5 enclosure, TEFC electric motors offer 100% duty cycle and start under full load.

The modular design-matrix enables the PE 30 Series of BVA Electric Hydraulic Pumps  to be easily configured and customized.
