BVA Hydraulics PE50W3N030A 10,000 PSI, Electric-Hydraulic Pump

• 10,000 psi Maximum pressure.
• 1.5 Hp, 60 Hz., 1 Ph., 115 VAC.
• 17 amps.
• High flow, 2-stage design – standard on all models.
• 476 cu.” per minute from 0-700 psi (1st Stage).
• 61 cu.” of oil per minute @10,000 psi (2nd Stage).
• Internal relief valve.
• 3-way, 3-position (Advance-Hold-Retract) manually operated directional valve.
• 3, 5, 10, 15, 25, and 40-gallon reservoir options.
• 240 VAC, 50 hz. motors and 3 Ph. models to choose from.
• 3 & 4-way manual and solenoid valve versions are available and easily adaptable.
• 10′ Hand-held motor control pendant is supplied with all ‘W’ manual valve models.
• 10′ Hand-held (Advance/Retract)  pendant is supplied with all solenoid valve models.
• 240 VAC, 50 Hz. electric motors and 3 Ph. power options to best suit your requirements.
• Large breather-fill cap with strainer on all models.
• Whisper quiet 80dBA operation.

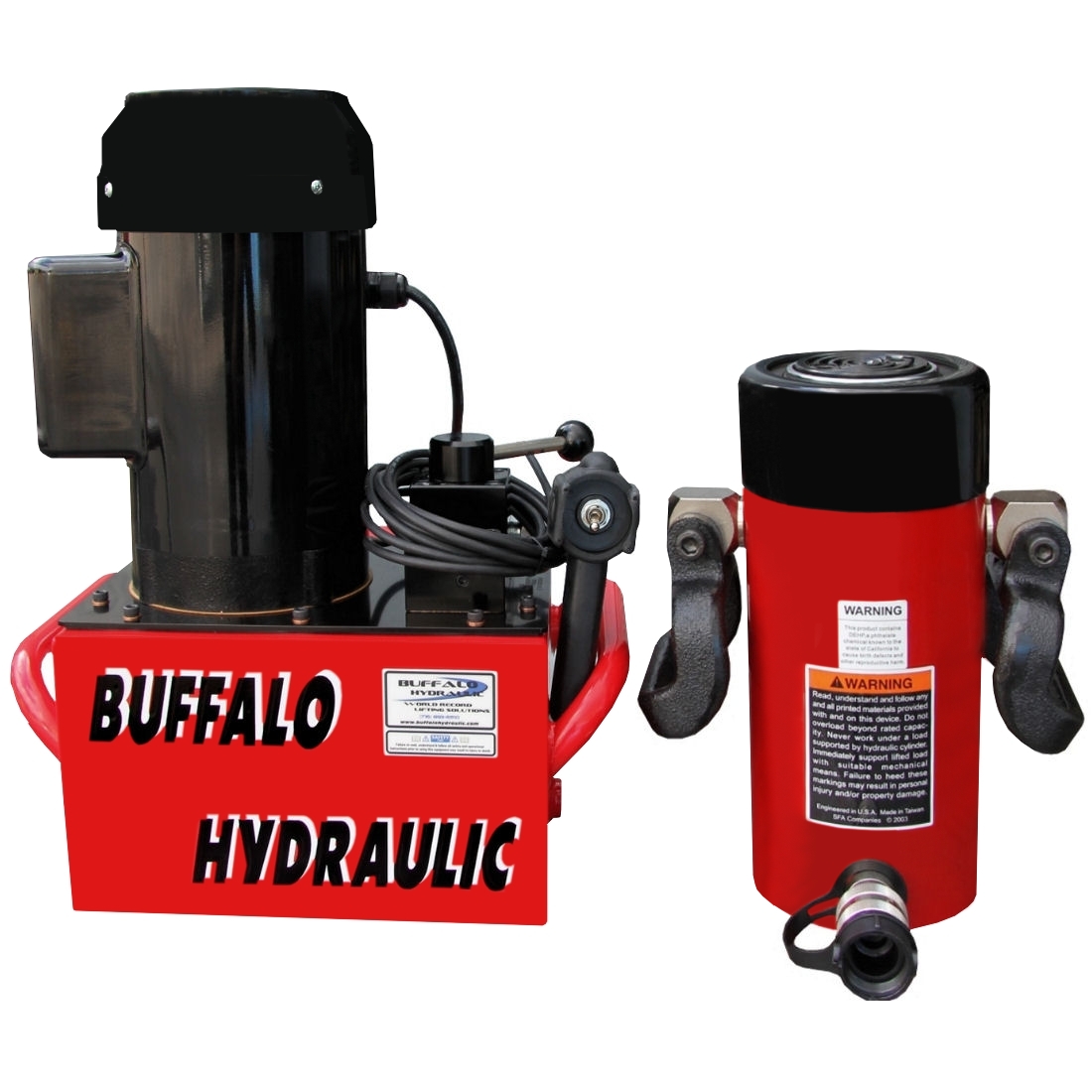

• Displayed with H10006 cylinder, 100 tons force @9,718 psi, spring return, 6 5/8″ stroke/travel.

From delivering high-pressure flow to a single cylinder for bending, crimping, pressing, pushing, or pulling to a multi-point, high-tonnage jacking system, we have the right solution for your application.  Similar rugged features are also offered in air hydraulic, gasoline engine-driven, and diesel engine models when A/C power is not available.  Most models can ship from stock, or within 1 week ARO.
