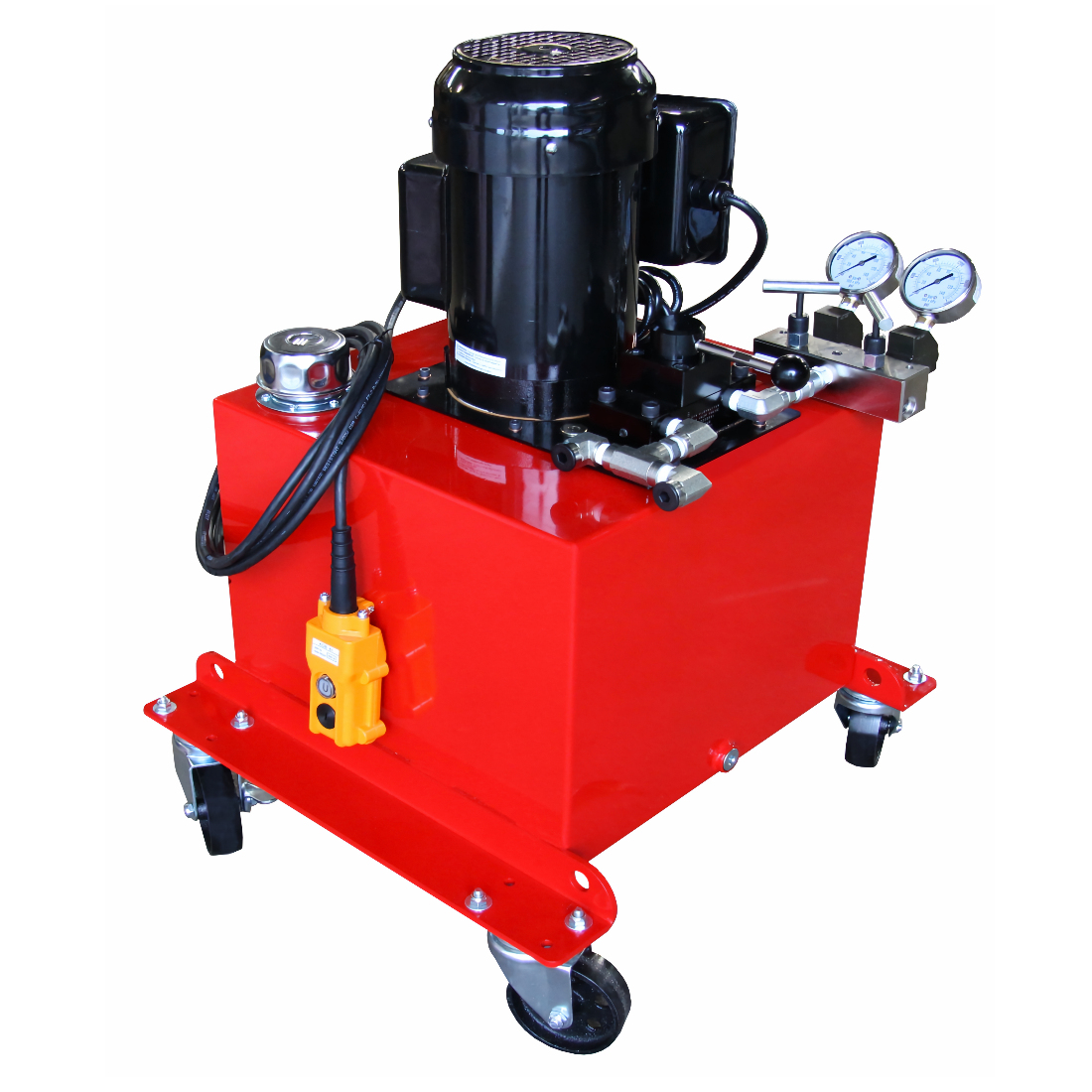

BVA PE50W4N25A 10,000 p.s.i. Electric Hydraulic Pump.
1.5Hp, 1 Ph., 60 Hz., NEMA 5-15P.
476 cu.”/minute 0-700 p.s.i. – 1st Stage.
61 cu.”/minute 701-10,000 p.s.i. – 2nd Stage.
4/way, 3/position, tandem center directional valve.
Internal 1st stage bypass and high-pressure relief valve.
Large volume 25 gallons reservoir with rugged swivel casters (shown).
With an endless variety of combinations, the PE-30, PE-40 and PE-50 Series of pumps from BVA are easily adapted through a build matrix. With 120 VAC and 230 VAC operating voltages and 1/2 Hp, 1.0 Hp and 1 1/2 Hp motors, manually and solenoid operated directional valves, handheld motor control pendants, and 1 – 25 gallons oil reservoirs, we’re able to provide a unit that will meet your exact needs.
