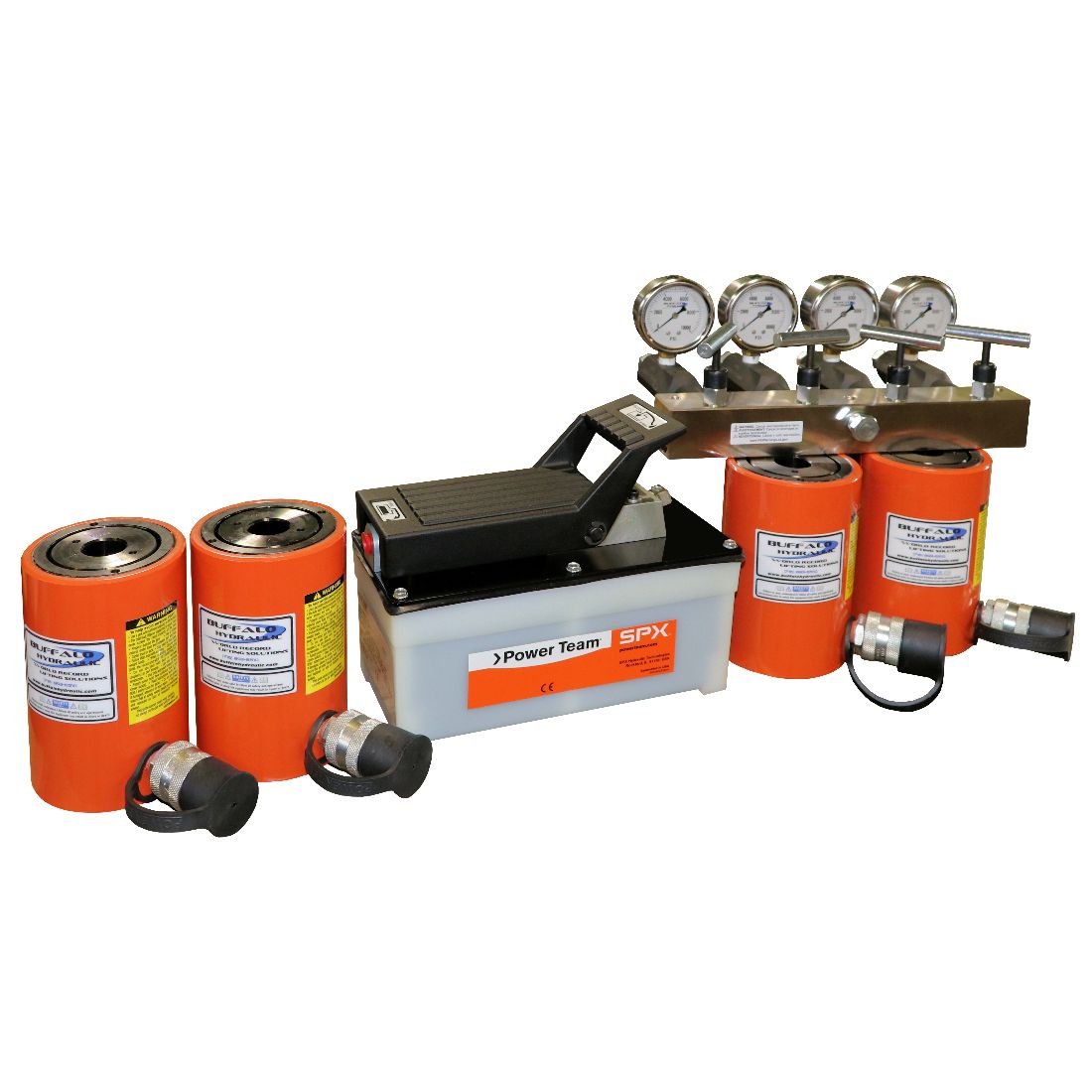

Power Team PA-6 air/hydraulic pump is shown in a 4-point, through-hole cylinder system that will develop 156,800 lbs. of combined force.  Four, center hole single-acting cylinders require just 11.8 cu.” of oil to fully extend each cylinder.  With a large volume (105 cu.”) reservoir, this air/hydraulic pump serves as a great power source for this tensioning application.

By utilizing our 4-port manifold with built-in, manually operated metering valves, and 0-10,000 psi, glycerin-filled pressure gauges, flow can be independently controlled to deliver the engineered tensioning force to 1.00″ diameter steel support cables.
