Power Team PE4004S, Electric Hydraulic
Inquire about Power Team PE4004S, Electric Hydraulic

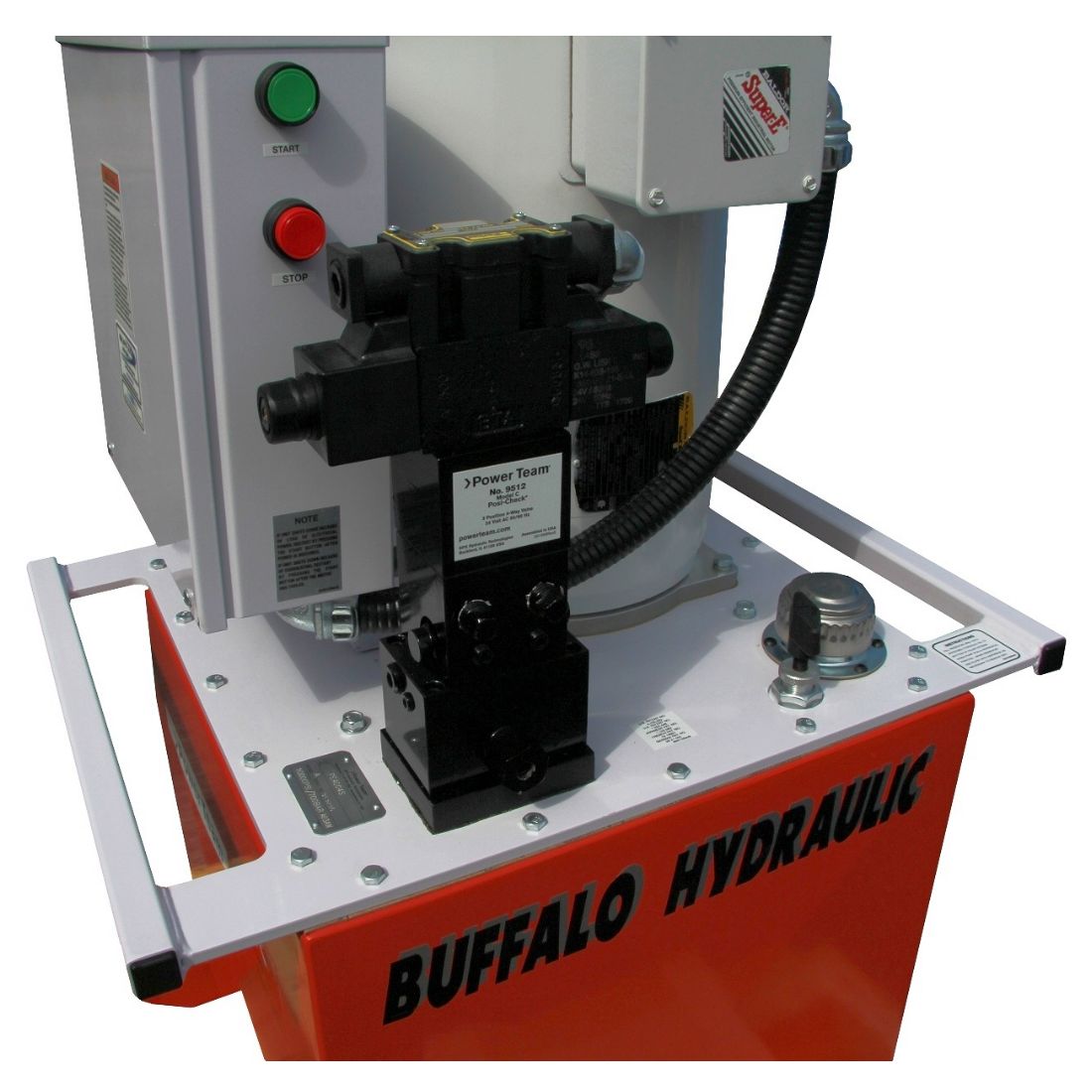

SPX Power Team PE4004S, High Volume, Electric-Hydraulic Pump.
- 10,000 p.s.i. Maximum pressure.
- High volume 1,200 cu.” of oil per minute from 0-200 p.s.i.
- 420 cu.” of oil per minute at 10,000 p.s.i.
- 10 Hp, 208/230/460 VAC, 60 Hz., 3 ph.
- 20 Gallons useable oil volume.
- Rugged all-steel reservoir complete with (4) swivel casters and integral sight glass.
- 4-way, 3-position, tandem center (Advance-Hold-Retract) solenoid operated directional valve.
- 10′, 24 volt, hand held push button solenoid valve control.
- Internal relief valve.
- External relief valve offering 1,500 – 10,000 p.s.i. system pressure setting.
- 24 volt ‘Start/Stop’ push buttons, panel mounted.
- 1,725 rpm functioning at 73-80 dBA.
