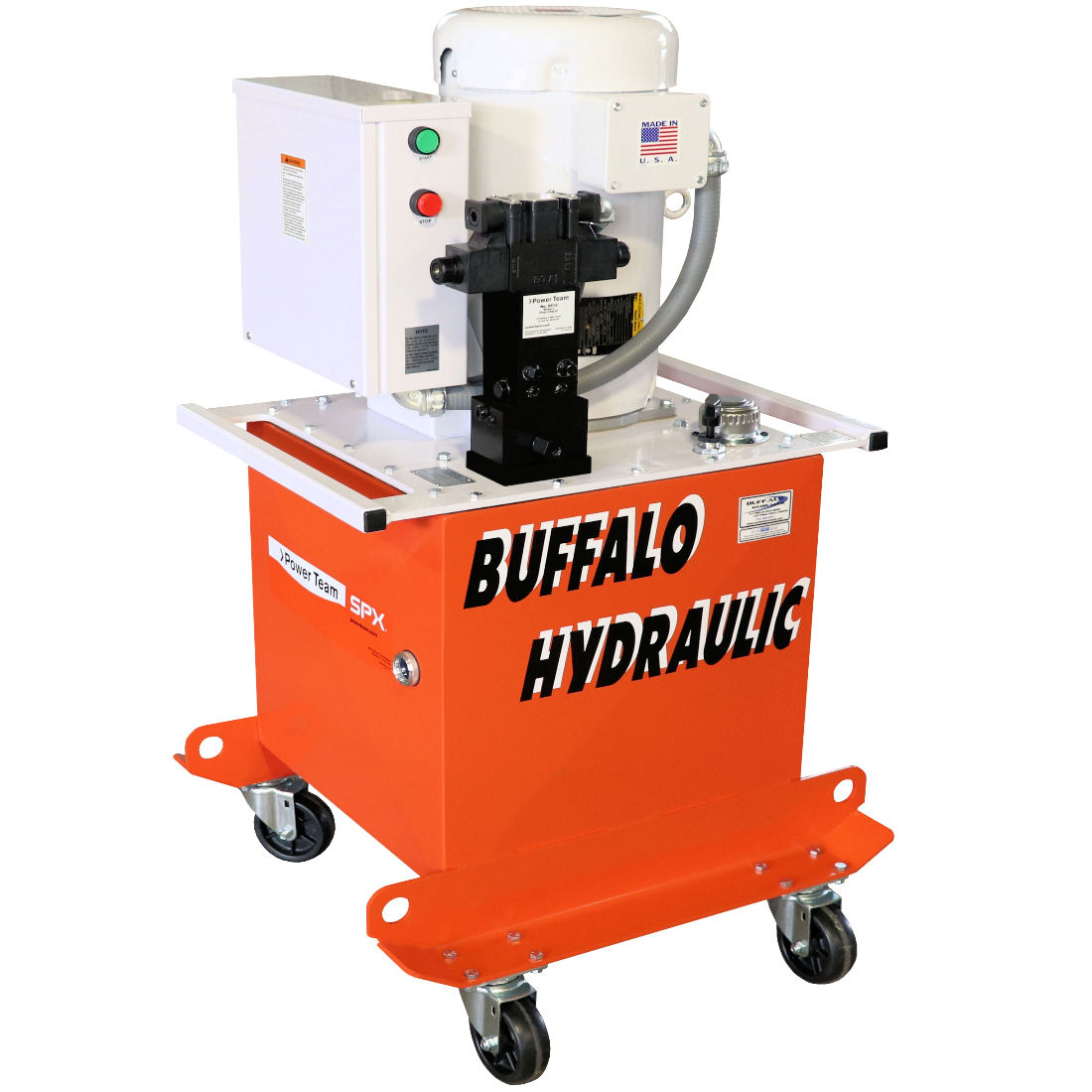

Power Team PE4004S, High Volume, 10,000 PSI Electric-Hydraulic Pump

Power Team PE400 Series of 10,000 psi electric-hydraulic pumps offer a high volume solution for use with high tonnage hydraulic jacking cylinders that require up to 20 gallons of oil.  Equally, this family of electric-hydraulic pumps is a great choice for multiple-point jacking systems also requiring higher oil volume.

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

Power Team PE4004S, High Volume, 10,000 PSI Electric-Hydraulic Pump

  • 10,000 psi Maximum operating pressure.
  • 208/230/460 VAC, 3 Ph., 60 hz. operating voltage.
  • High flow, 2- stage design.
  • 1,200 cu.” of oil per minute at 200 psi (1st Stage).
  • 420 cu.” of oil per minute @10,000 psi (2nd Stage).
  • 4/Way, 3/position solenoid operated directional locking valve.
  • 24v hand-held, advance-retract directional valve control pendant.
  • 24v start/stop push buttons.
  • Internal relief valve set at 10,000 psi.
  • External adjustable relief valve from 1,500 – 10,000 psi.
  • 3,927 cu.” (20 gallons) oil reservoir volume with low-level sight glass.
  • 73-80 dBA.
  • Heavy-duty swivel casters.
  • 506 lbs.
  • Proudly made in U.S.A.
