SPX Power Team Custom Electric Hydraulic Press

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

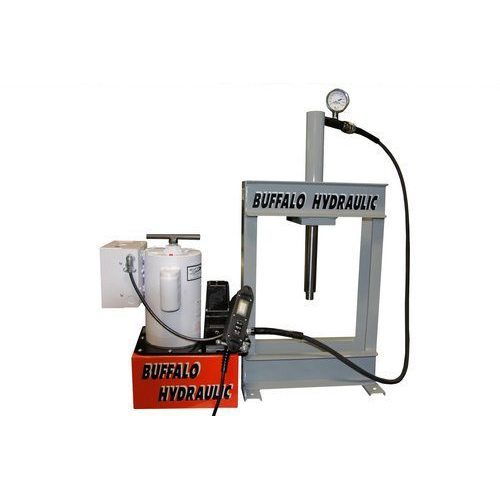

Buffalo Hydraulic BHEHP10X08.00-SPL Electric Hydraulic Press

  • 115 V.A.C., 1 ph., 60 Hz.
  • 20,000 Lbs. Force @8,929 p.s.i. (Maximum Pressure).
  • Single acting – spring return (Advance-Retract).
  • 8.00″ Stroke/travel.
  • Inverted cylinder flange mount.
  • 16.00″ Vertical opening.
  • 12.00″ Horizontal opening.
  • Fixed position lower press bed.
  • Glycerin-filled pressure gauge.

Equipped with Power Team PE462S Electric/Hydraulic Pump.

  • 115/230 VAC, 1 Ph., 60 Hz.
  • 3-Way, 2 position solenoid operated directional valve.
  • Hand-held, push button (Advance-Retract) cycle control.
  • 590 Cu.” oil reservoir volume.
  • 450 cu.” Of oil per minute (1st Stage).
  • 46 cu.” Of oil per minute (2nd Stage).
  • Internal relief valve.
  • 10,000 p.s.i. – Maximum Pressure.
