BVA Hydraulics High Tonnage Hydraulic Jacking Cylinders

• 10,000 psi maximum pressure.
• Single-acting, spring return design.
• 42 Standard models ranging from 2 – 100 tons capacity.
• All H Series hydraulic cylinders can be used in any position – Upright, inverted, or horizontal.
• Optional manually operated, load-holding check valves are shown.
• Optional, custom 10″ X 10″ square base supports providing added stability are also shown.
• Engineered, rod-end collar thread for fixturing to withstand full load is standard on all H Series cylinders.
• Industrial, hard chrome plunger is standard on all H Series Cylinders.

H3008 shown

• 64,900 lbs./force each at 10,000 psi.
• 4.00″ Outside diameter.
• 2.24″ Rod diameter.
• 15.24″ Retracted height.
• 8.27″ Stroke/travel.

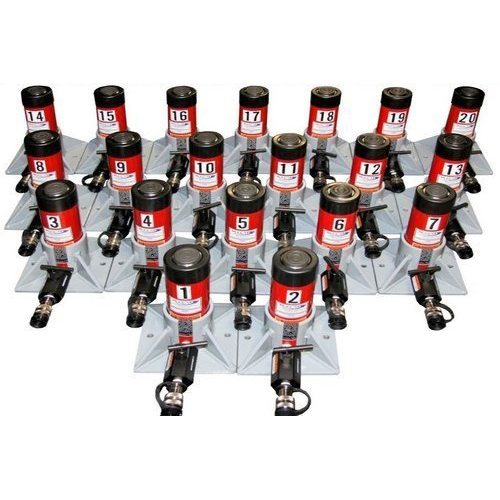

This jacking system was used to raise and micro-level a 508-ton transformer at 20 lifting points.

All BVA Hydraulics cylinders are designed, built, and tested to meet or exceed ASME B30.1 standards.
