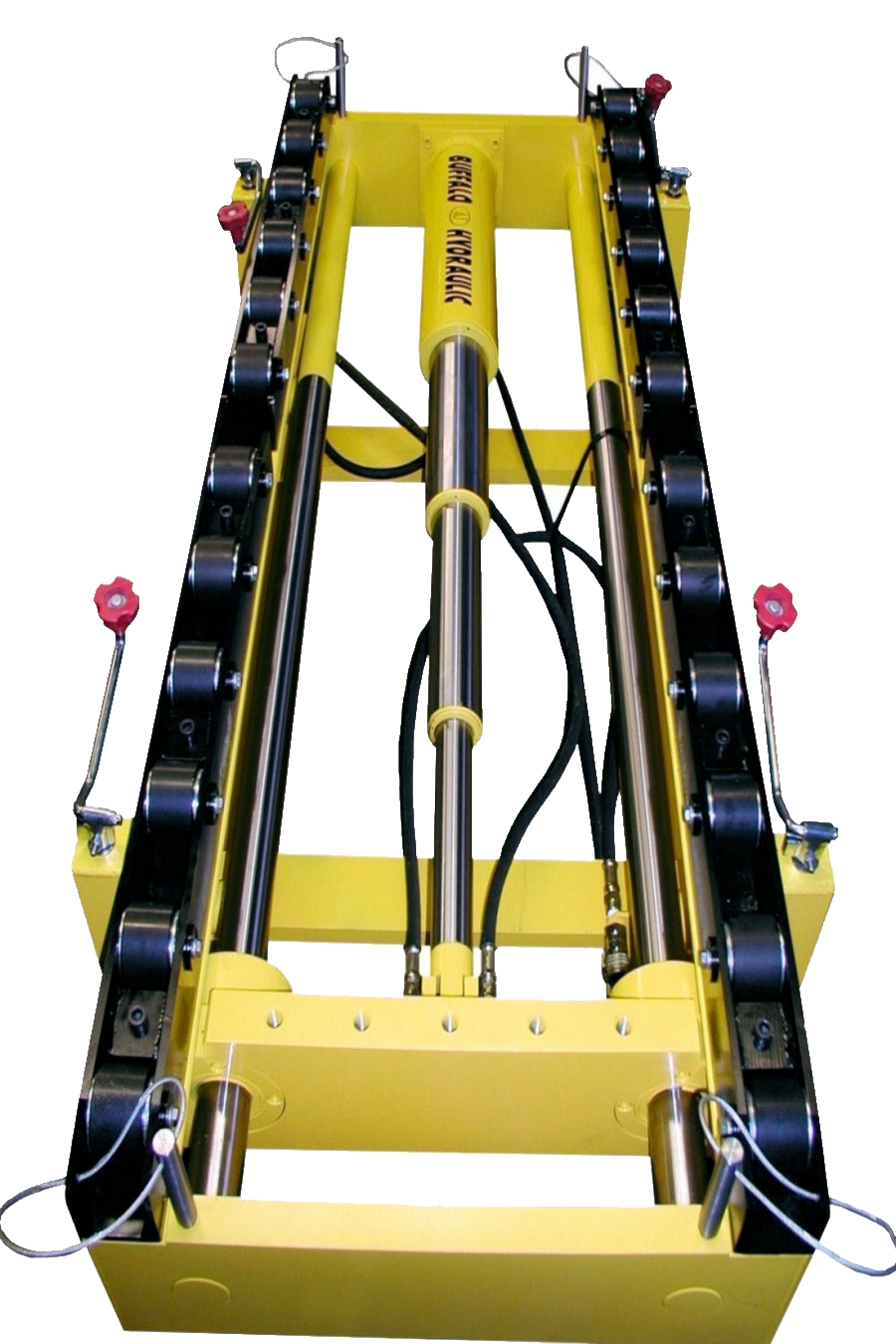

Buffalo Hydraulic Telescopic Hydraulic Die Set Table

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

Buffalo Hydraulic BHEHDC-SPL Electric Hydraulic Die Cart

  • 36.00″ wide.
  • 78.00″ double-acting telescopic travel.
  • Electric hydraulic operation.

A custom design to deliver the means for the installation and removal of 4,300 lbs. die sets from limited access stamping presses was needed.  With clearance in mind, a unique double-acting, telescopic hydraulic cylinder was recessed between the side frames of the cart.  High-capacity rollers were fitted to the top side rails and a custom-built electric hydraulic pump completed the slide table design.  Controlled and precise locating of the die sets was safe, repeatable, and now efficiently carried out.
