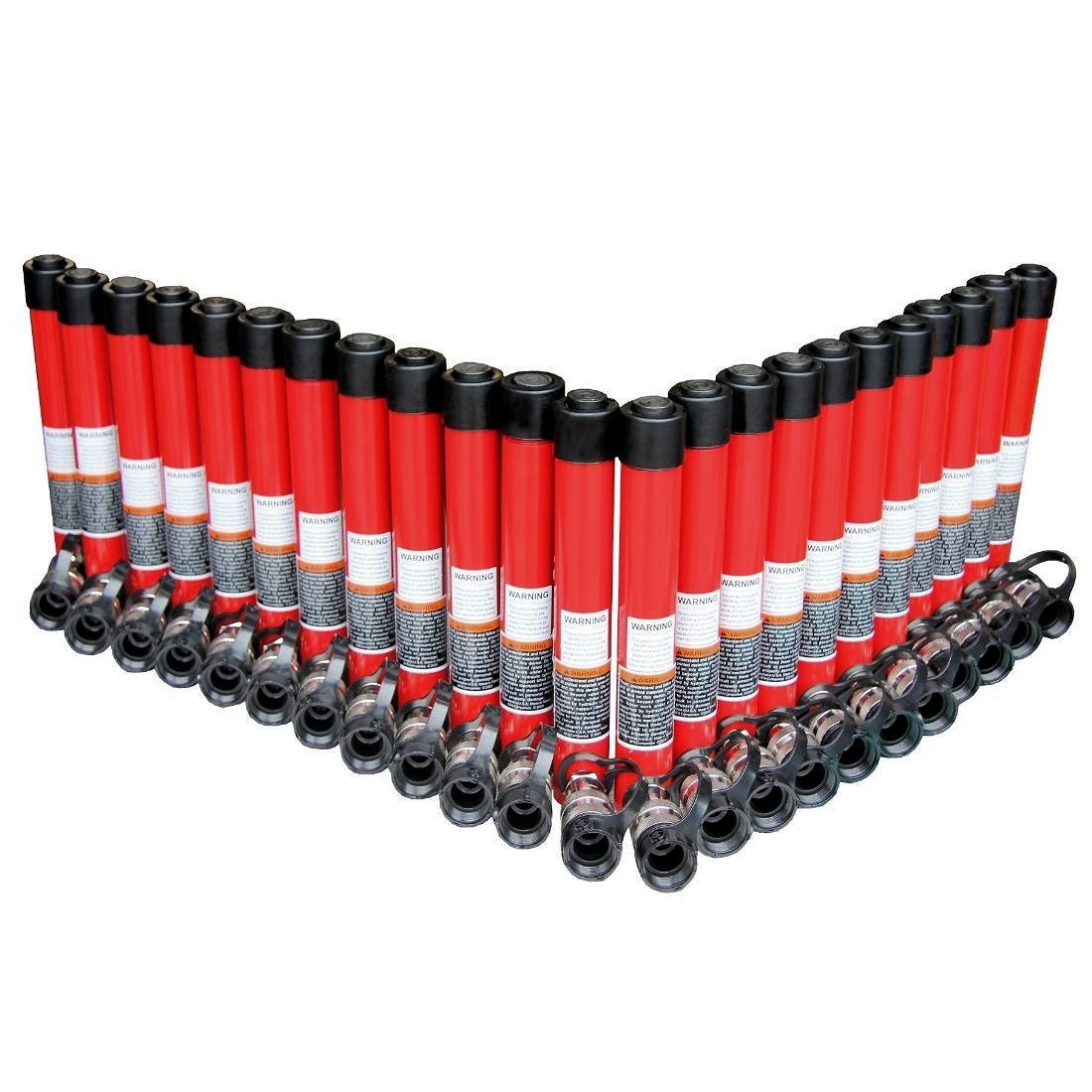

BVA Hydraulics H Series, Single Acting, Spring Return Cylinders.

• 10,000 psi Maximum pressure.
• Hydraulic advance – spring retract.
• 42 Models to choose from ranging from 2 – 100 tons capacity.
• Collar thread and base mounting holes are standard on all models.
• Hard chrome plunger providing added corrosion protection.
• Aluminum alloy piston bearing reduces side loading forces.
• CH38F Quick disconnect coupler included with each cylinder.
• Optional tilt saddles are available for all models.
• All BVA Hydraulics cylinders are ASME  B30.1 compliant.

H0509 shown;

• 10,000 lbs. force @10,000 psi.
• Single acting, spring return.
• 1.50″   Diameter cylinder body.
• 0.98″  Diameter plunger.
• 12.75″ Retracted height.
• 9.00″  Stroke/travel.
• 5.5 lbs. each.

This system was used to deliver 88 tons of clamping force to a large weldment during a complex machining process.

Whether your project requires a high tonnage force to bend, clamp, lift, press, or shear, BVA Hydraulics H Series of cylinders offers a wide variety of models to consider.  These spring return cylinders can be used vertically, horizontally, or inverted to provide a smooth and safe solution to your project!
