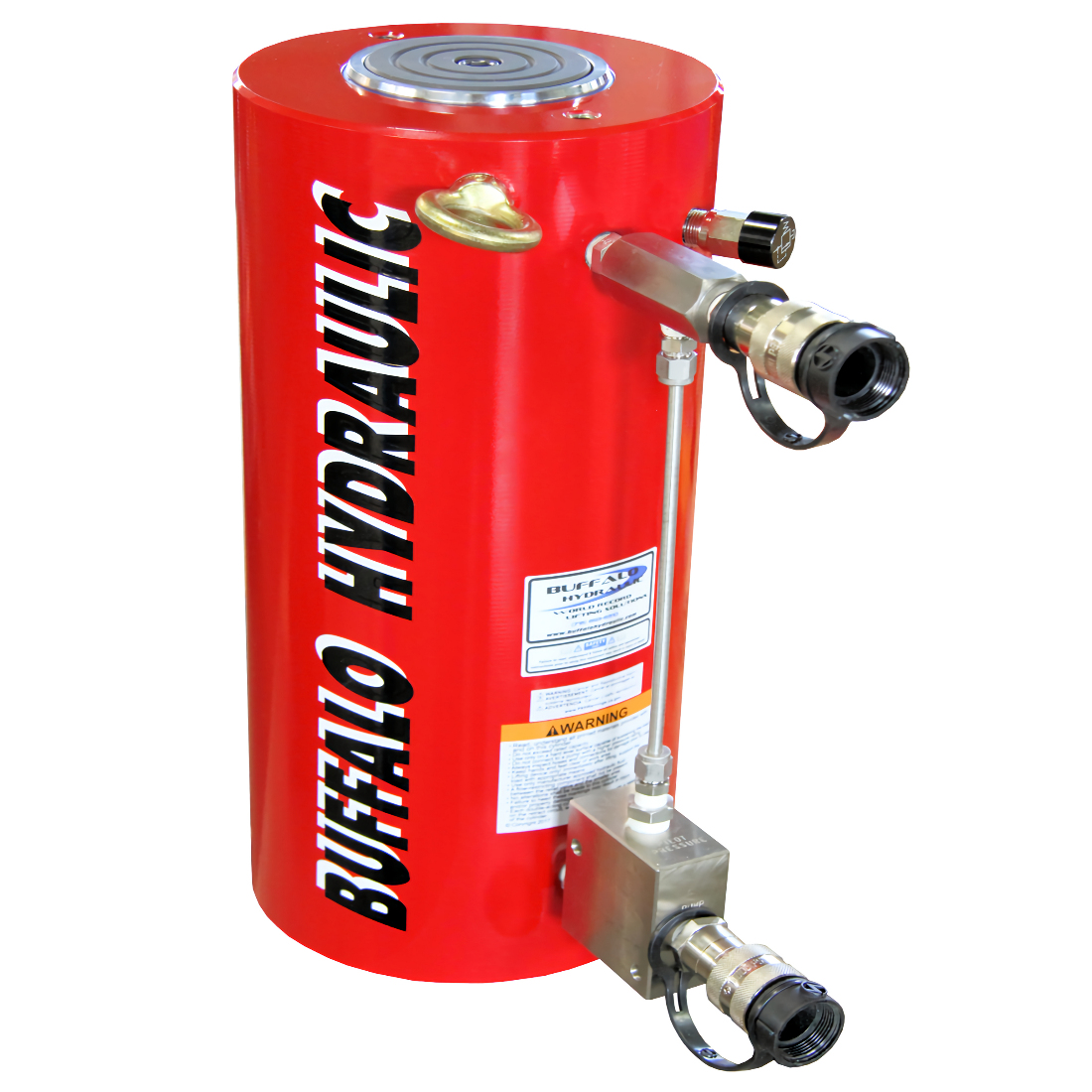

BVA Hydraulics HDG20012 High Tonnage Hydraulic Jacking Cylinder

With custom models available, HDG20012 is one of 35 standard BVA Hydraulics HDG Series high tonnage, hydraulic jacking cylinders.

Buffalo Hydraulic is a distributor for all BVA Hydraulics products and all cylinders meet or exceed the design, manufacturing, and testing criteria set forth in ASME B30.1.

Whether your application requires one point of high tonnage lifting or several, Buffalo Hydraulic has the experience to support the design of your most complex hydraulic system.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HDG20012 200 Tons Capacity, Hydraulic Jacking Cylinder Equipped with a CVP3 Pilot Operated Check Valve.

  • Double-acting design – 10,000 psi (700 bar) maximum operating pressure.
  • 200 tons lifting capacity @9,758 psi.
  • 11.81″ Stroke/travel.
  • 35 Standard models available ranging from 100 – 1,000 tons force.
  • Rod end relief valve to prevent over-pressurization is standard on all HDG Models.
  • Burnish rolled, ultra-smooth internal bore.
  • Industrial hard chrome plungers to resist scoring and pitting in harsh environments.
  • High flow (Advance/Retract) quick disconnect couplers are included on all models.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “BVA Hydraulics HDG20012 High Tonnage Hydraulic Jacking Cylinder”
