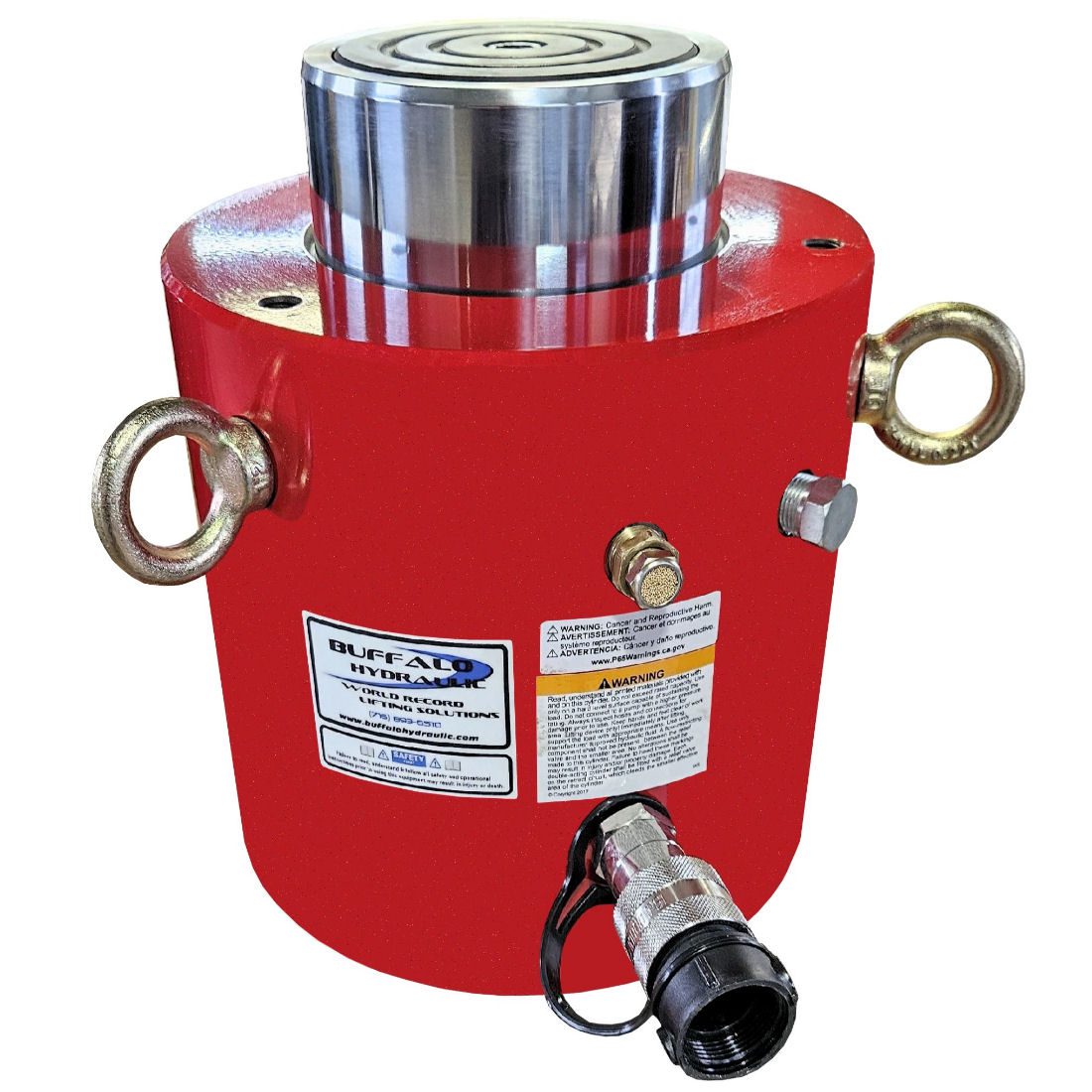

BVA Hydraulics HG30002, High Tonnage, Hydraulic Jacking Cylinders

Whether your project requires one single point of lift, or several, BVA Hydraulics HG Series of single-acting load return, 10,000 psi, hydraulic cylinders offer a rugged design.  Please contact us for help with your technical requirements and further information.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HG30002, High Tonnage, Hydraulic Jacking Cylinders.

  • 10,000 psi Maximum operating pressure.
  • 300 tons force @8,485 psi.
  • Single acting, load return design.
  • 12.28″ Retracted height.
  • 1.97″ Stroke.
  • 406 lbs.
  • Gun drilled burnished internal bore and industrial hard chrome plunger.
  • 35 Standard models ranging from 100 – 1,000 tons capacity.
  • Custom models available with capacities up to 1,500 tons.
  • ASME B30.1 compliant.
