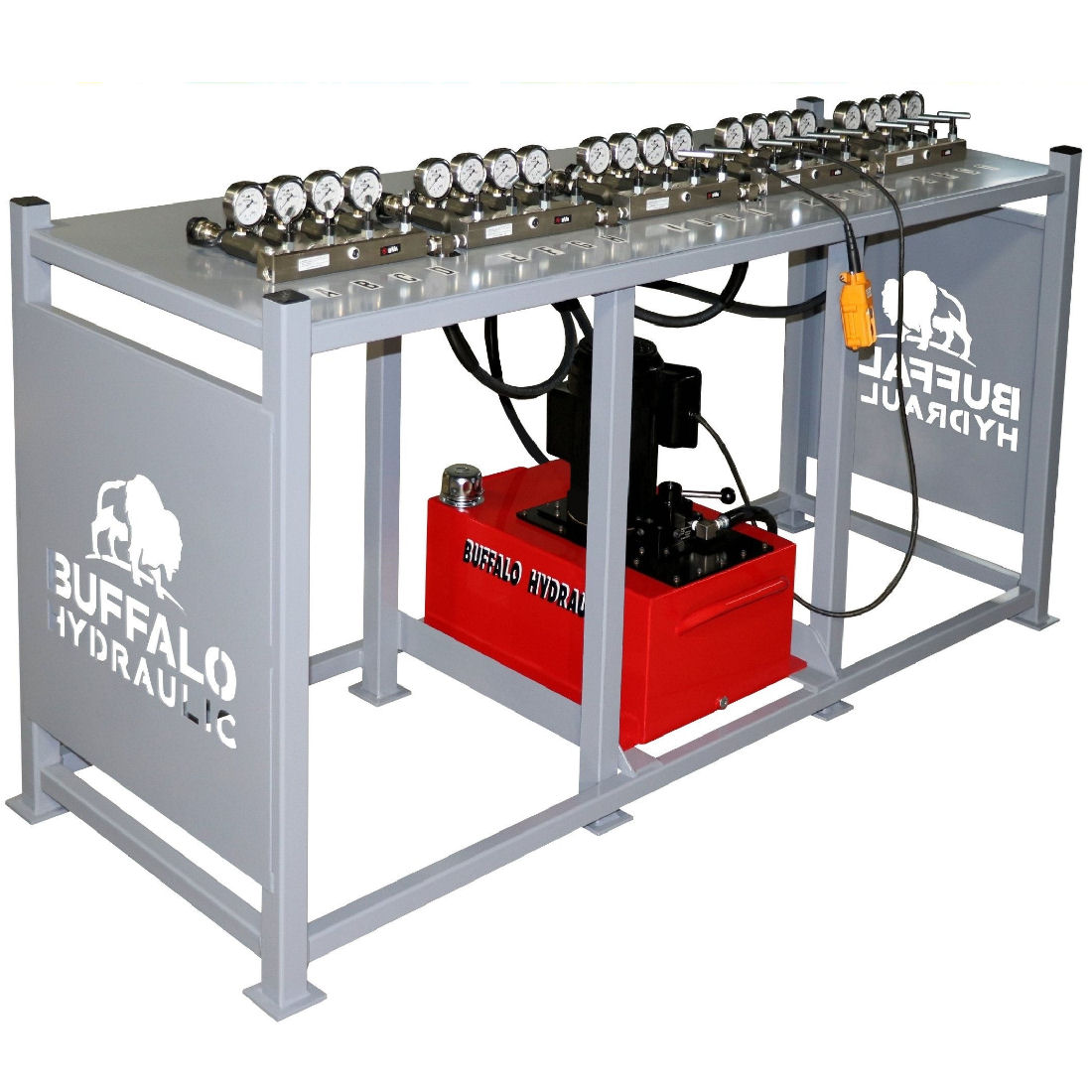

BVA Hydraulics High Pressure, 20-Port, Electric Hydraulic Jacking System Console

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics, Custom High-Pressure, 20-Port, Electric Hydraulic Jacking System Console

  • 10,000 P.S.I. Maximum pressure.
  • 20 Working ports allowing finite pressure and flow control and N.I.S.T. pressure readings.
  • 476 cu.” Of oil per minute from 0 – 700 p.s.i. (1st Stage).
  • 61 cu.” Of oil per minute from 701 – 10,000 p.s.i. (2nd Stage).
  • 115 VAC, 1 Ph., 60 hz.
  • 25 Gallons (5,775 cu.”) of useable oil volume.
  • Internal relief valve.
  • 3-Way, 3-Position Manually operated directional valve.
  • 10′ Hand-held motor control pendant.
  • Equipped with(20) N.I.S.T. certified, glycerin-filled 0-10,000 psi pressure gauges.
  • Equipped with (20) manually operated needle/flow control valves.
  • 476 cu.” Of oil per minute from 0 – 700 p.s.i. (1st Stage).
  • 61 cu.” of oil per minute from 701-10,000 psi (2nd Stage).
