BVA Hydraulics High Pressure Electric Hydraulic Pumps

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

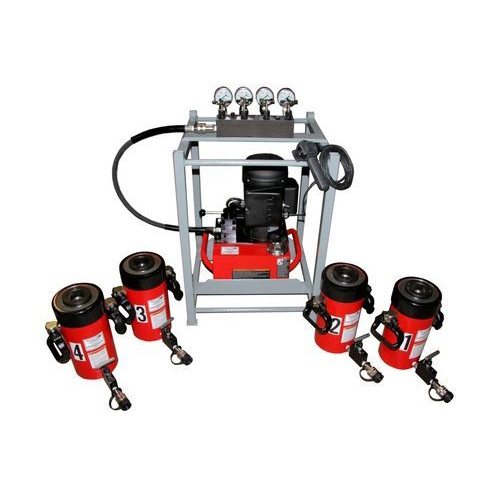

 BVA Hydraulics PEW1505T Electric Hydraulic Pump

  • 115 VAC, 1 Ph., 60 Hz. 1½ Hp.
  • 3-Way, 3-Position Manually operated directional valve.
  • 10′ Hand held motor control pendant.
  • 5 Gallon reservoir.
  • 4-Port manifold with metering/flow control valves.
  • Equippd with (4) Glycerin filled pressure gauges
  • 476cu.” Of oil per minute from 0 –  700 p.s.i. (1st Stage).
  • 61 cu.” Of oil per minute from 701 – 10,000 p.s.i. (2nd Stage).

BVA HC6006T Hollow Plunger Hydraulic Cylinders

  • 120,000 Lbs. Capacity @9,195 p.s.i.
  • 12.76″ Minimum height.
  • 6.00″ Stroke/travel
  • Ø 2.13″ Through hole.

Equipped with BVA CVMS3 load-holding check valves to prevent uneven equalization due to differing load values.
