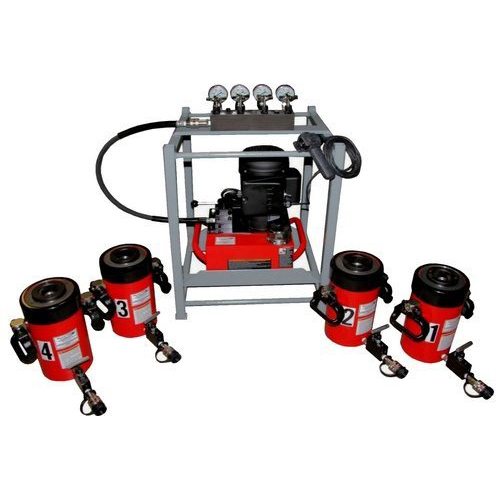

BVA Hydraulics High Tonnage Hydraulic Jacking Systems

• 240 Tons capacity, 4-point, hollow plunger stress testing system.
• 115 VAC, 1 ph., 60 Hz.
• Equipped with 3-way, 3-position manually operated directional valve.
• Internal, pre-set, 10,000 psi pressure relief valve.
• 2-Speed, high flow design.
• 475 cu.” of oil per minute flow rate from 0-700 psi (1st stage).
• 60 cu.” of oil per minute flow rate from 700 – 10,000 psi (2nd stage).
• 4 – HC6006T, hollow plunger, single acting, spring return cylinders.
• 2.13″ Diameter through hole for high tonnage stressing and tensioning.
• 10,000 psi maximum pressure.
• 60 tons force each (240T total force) at 9,195 psi.
• 6.00″ stroke, spring return.
