BVA Hydraulics HL10002 Low Profile, Jacking Cylinders
Inquire about BVA Hydraulics HL10002 Low Profile, Jacking Cylinders

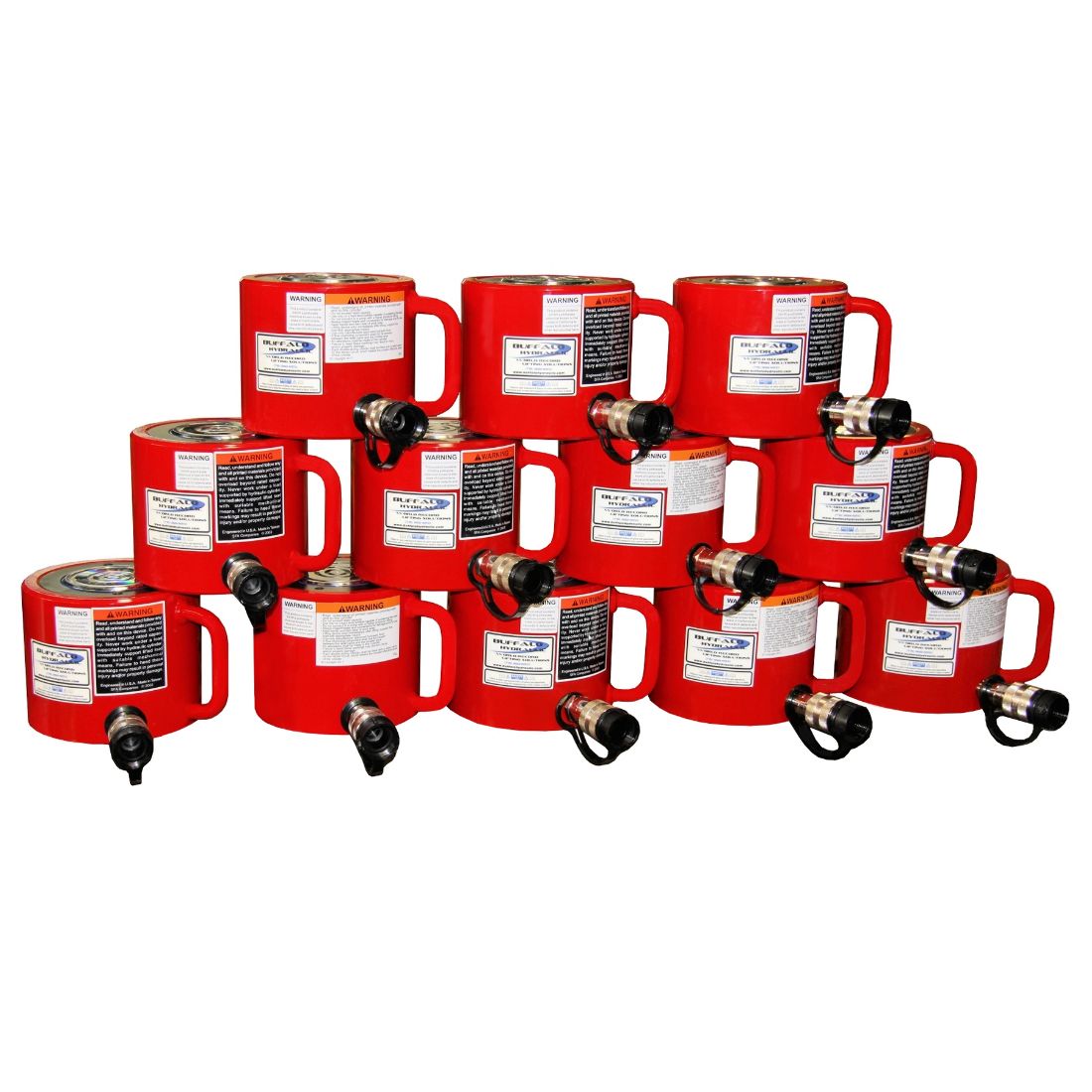

BVA Hydraulics HL10002 Low Profile, High Tonnage Jacking Cylinders.
- 196,400 lbs. capacity at 10,000 p.s.i. (maximum pressure).
- Single acting, spring return.
- 5.55″ Retracted height.
- 2.24″ Stroke/travel.
- 6.50″ Outside diameter.
- 45.40 lbs. each.
The BVA Hydraulics HL-Series of low-profile, high-tonnage jacking cylinders offer high force with a minimum starting height and can be used in any position to generate, your required jacking, lifting, pressing, or pushing force. If your requirement is to deliver a specified contact force through a number of points, Buffalo Hydraulic has the experience needed to design a multi-point system to meet your needs.
All BVA Hydraulics Cylinders are designed, manufactured, and tested to meet or exceed ASME B30.1
