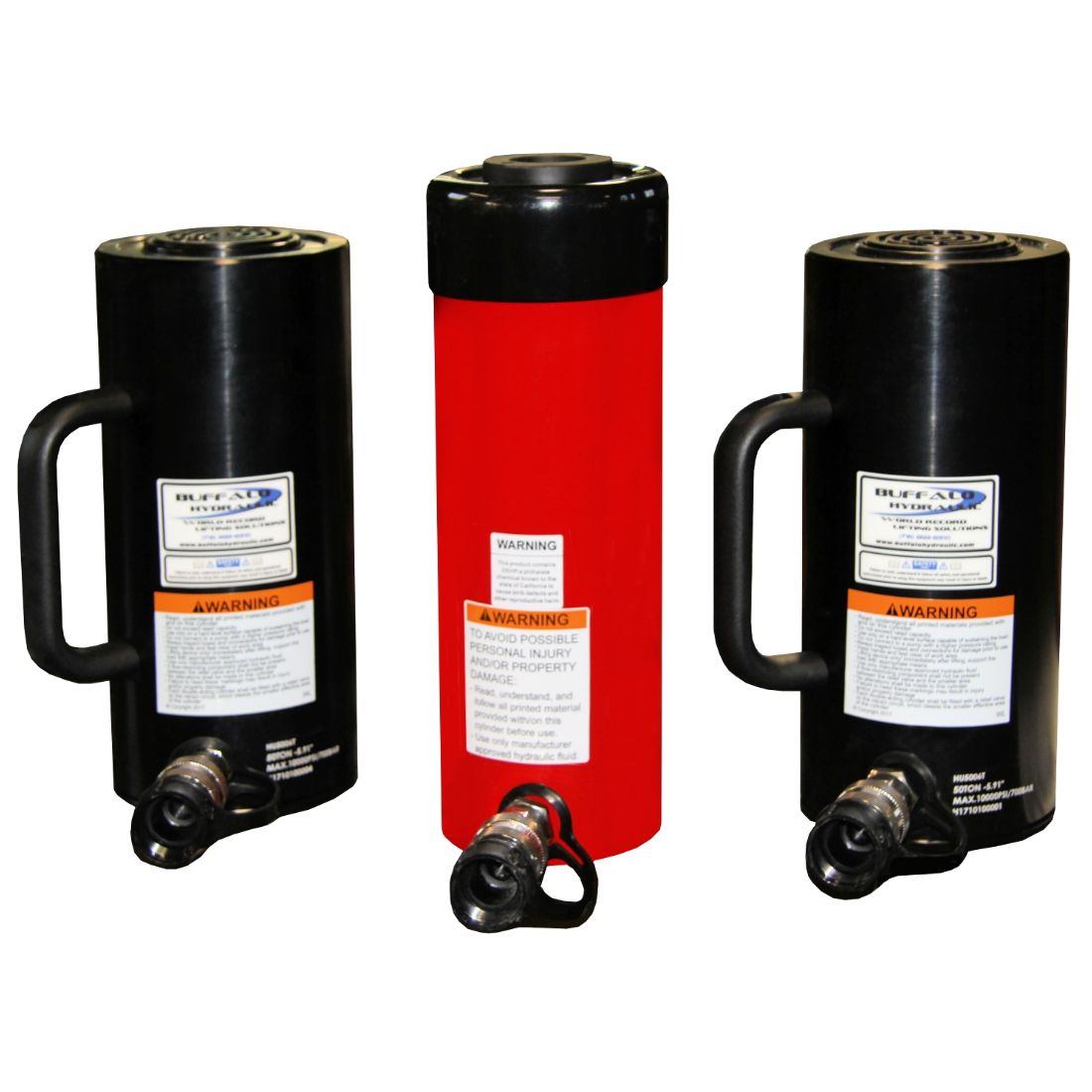

BVA Hydraulics HU5006T Single Acting, Aluminum Cylinders

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics HU5006T Lightweight, Single Acting Hydraulic Cylinders

  • 10,000 p.s.i. maximum operating pressure.
  • Lightweight aluminum alloy construction – 25.5 lbs. each.
  • Single acting, spring return.
  • Up to 60% lighter than conventional steel models.
  • Hard anodized aluminum plunger for added wear properties.
  • Integral steel base plate.
  • 11.26″ Retracted height.
  • 5.91″ Stroke/travel.
  • ø3.15″ Plunger.
  • ø5.12″ Outside diameter.
  • ø3.74″ Internal bore.
  • 10.99 Effective square area.
  • 21 standard models to choose from ranging from 20 – 150 tons capacity.
  • All BVA Hydraulics, HU Series of cylinders are equipped with a CH38F quick disconnect coupler.

Whether you are considering single-acting, double-acting, locknut design, hollow plunger, or aluminum construction, all BVA Hydraulic Cylinders are ASME B30.1 compliant in design, construction, and testing.
