BVA Hydraulics H10006, 100 Tons Capacity Hydraulic Jacking Cylinders
The H Series of high-pressure hydraulic cylinders from BVA Hydraulics offers a rugged, reliable, and high-cycle solution to your most demanding high-tonnage hydraulic application.
All BVA Hydraulics are designed, assembled, and tested to meet or exceed ASME B30.1 and are covered by BVA Hydraulics Limited Lifetime Warranty.
Buffalo Hydraulic serves as a close partner and can support you with any technical requirements, selection, and application questions regarding all BVA Hydraulics pumps, cylinders, valves, and systems.
Inquire about BVA Hydraulics H10006, 100 Tons Capacity Hydraulic Jacking Cylinders
BVA Hydraulics H10006, 100 Tons Capacity Hydraulic Jacking Cylinders
- 10,000 psi maximum operating pressure.
- Single-acting, spring return design for use in any position.
- 100 tons force – each @9,718 psi.
- 14.06″ Retracted height.
- 6.61″ Stroke/travel.
- ø4.13″ Hard chrome plunger.
- ø5.12″ Internal bore.
- ø6.25″ Outside diameter.
- Engineered rod end collar threads for fixture mounting and threaded base holes.
- Quick disconnect coupler included and installed with all H Series cylinders.
- (42) Standard models ranging from 2 – 100 tons capacity.
- H5506 – H10010 Include rugged carry handles for contact placement under the load.
- Polyurethane seals and rod wipers on all models.

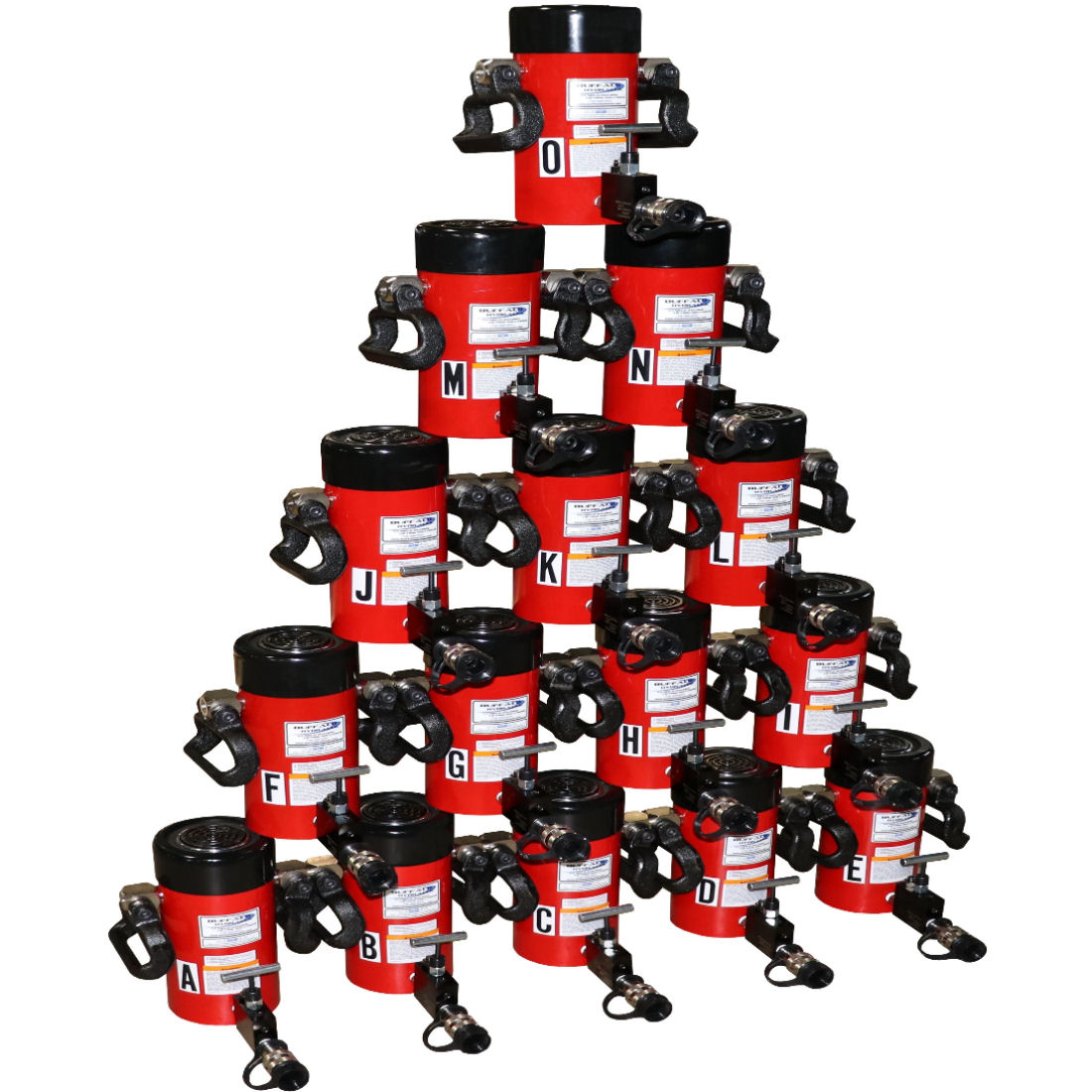

- Shown, equipped with CVMS3, manually operated, load holding check valves with integral, built-in relief valve installed in the working port of each cylinder.
- Optional tilt saddles are available to help prevent the effects of side load forces.
