BVA Hydraulics, High-Tonnage, Multi-Port, Hydraulic Jacking System

• Custom design with 10,000 psi maximum pressure over 4-Advance & 4-Retract working ports.
• 120 VAC, 1 Ph., 60 Hz. operating voltage.
• The internal relief valve is set to bypass at 10,000 psi to prevent overpressurization.
• High flow volume, 2-stage design.
• Approximately 475 cu.” of oil per minute, 1st stage.
• Approximately 61 cu.” of oil per minute during the 2nd stage.
• Equipped with a hand-held momentary, motor-control pendant.
• 1 – 25 Gallons, standard reservoir volumes available.
• Shown equipped with 4-NIST, glycerine-filled pressure gauges installed into the working ports of the Advance manifold.
• Quick disconnect couplers installed in all 8-working ports.
• Custom, built-in, manually operated, independent control, finite metering, flow control over 4-Advance circuits.
• Manually operated and solenoid-operated directional valve options to meet your specifications.

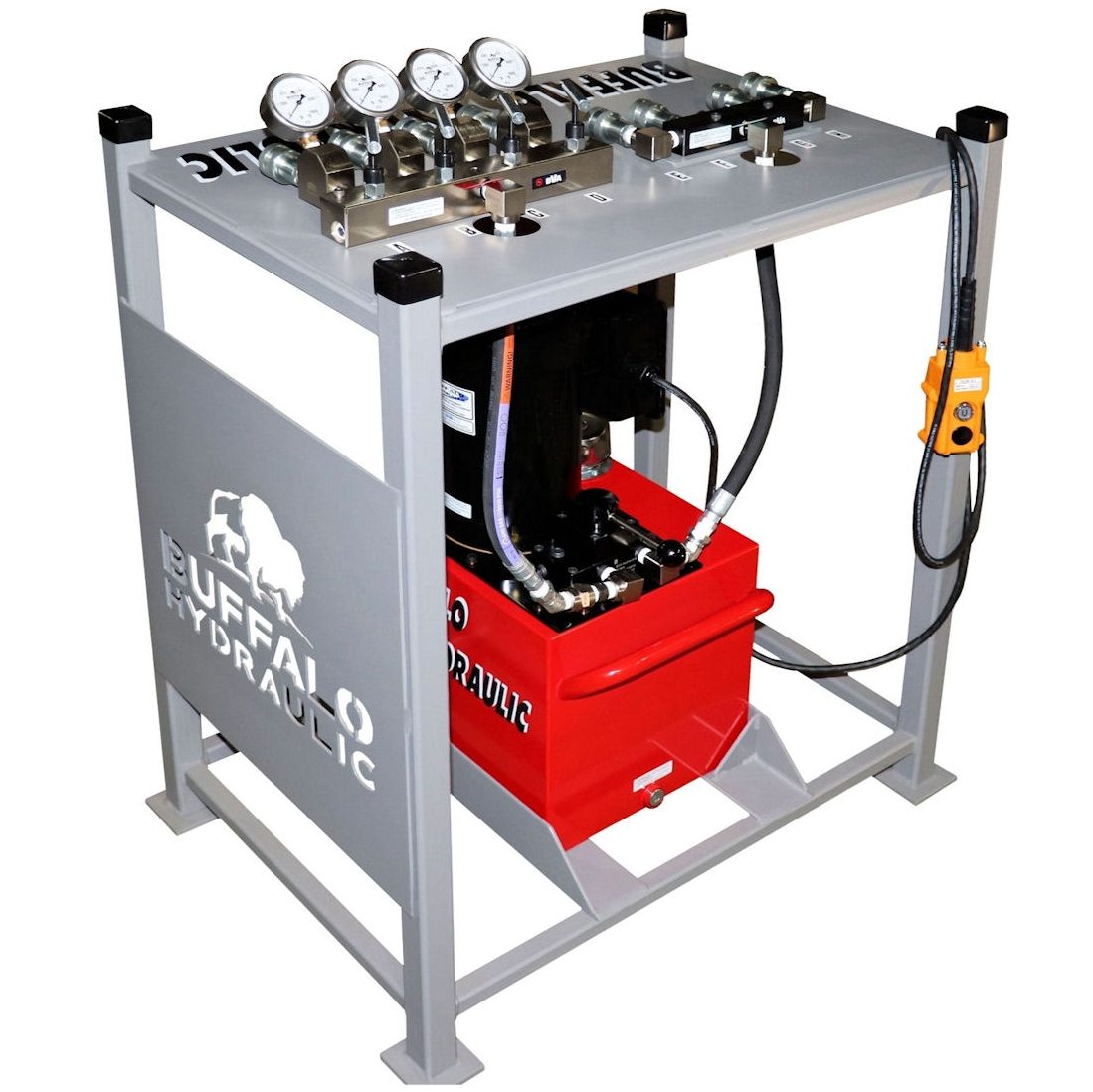

Shown, assembled, and mounted in a rugged console frame for protection and placement on the job site.

With an endless variety of high-tonnage, hydraulic cylinders in single-acting, double-acting, lock-nut design, and pull cylinders available, this high-tonnage, electric-hydraulic jacking system design is easily offered with as many jacking points as your project requires.
