Buffalo Hydraulic Custom Electric-Hydraulic Power Units

Spec Sheet
Inquire About This Product

Add to Wishlist
Category:
Description

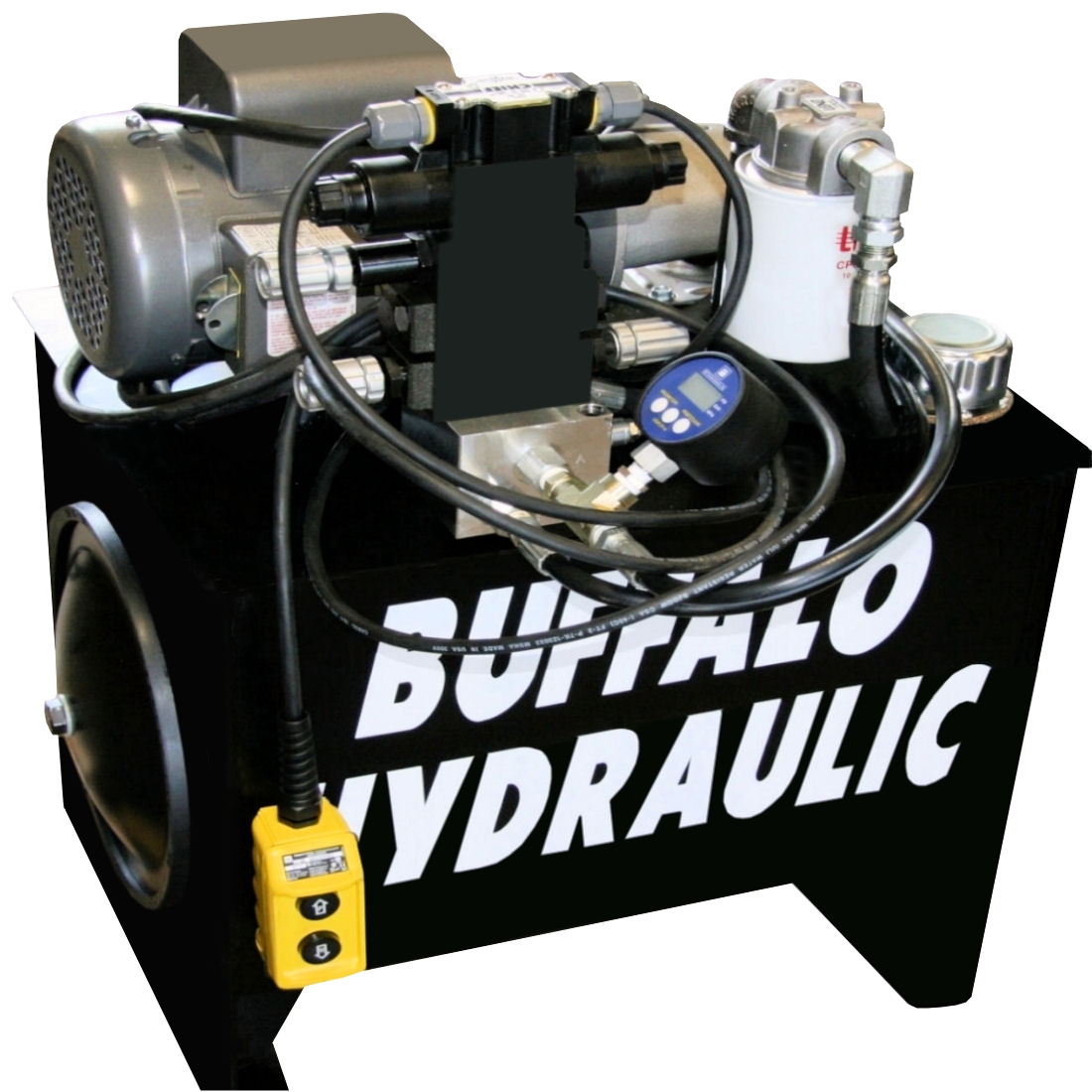

Buffalo Hydraulic BHEP3000-5-SV-SPL Custom Electric Hydraulic Powerunit

  • Custom-designed electric hydraulic pump.
  • 3,000 psi Maximum operating pressure.
  • 5 Gallons Per Minute.
  • 115 VAC, 60 Hz., 1 Ph.
  • 4/Way, 3/Position solenoid operated directional valve.
  • Hand-held push button pendant control.
  • Pilot-operated check valve.
  • Flow control.
  • Pressure relief valve.
  • Digital pressure gauge.
  • Return line filter.
  • 20 Gallons Reservoir.

This platform allows for design modifications to meet any electric hydraulic pump application.  Whether your project requires a differing operating pressure, flow rate, operating voltage, valve type, or reservoir volume, this modular layout can be conformed to meet any specific function.
