BVA Hydraulics Pull Cylinders – HP1006 10 Tons Capacity Each

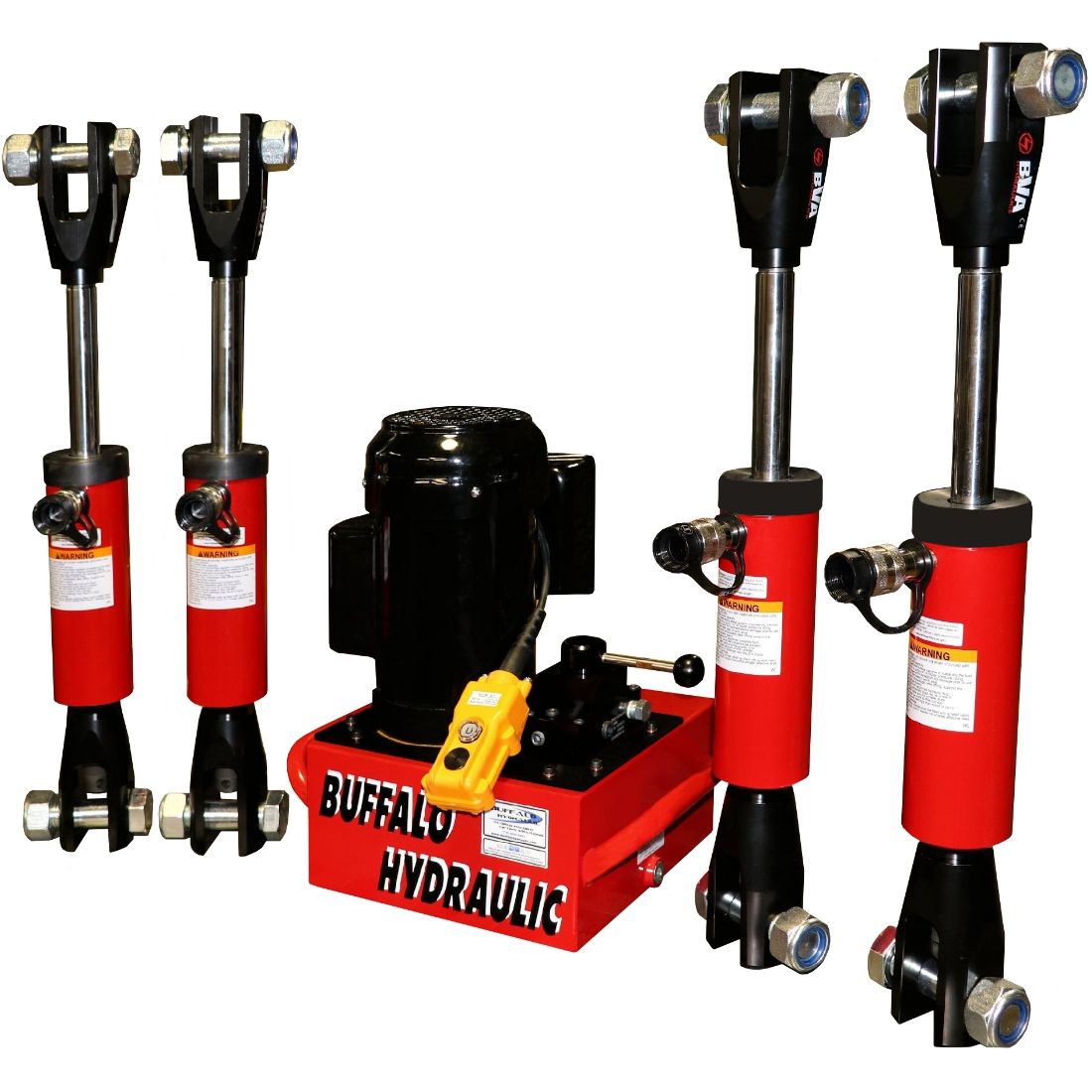

BVA Hydraulics Pull Cylinders – (4) HP1006 single-acting, spring return, hydraulic pull cylinders were used to provide 32 tons of pulling force over four points for for the precise tensioning of large steel support cables on precast concrete forms.

All BVA Hydraulics cylinders meet or exceed ASME B30.1 industry standards in design, assembly, and testing and all BVA Hydraulics products are manufactured within ISO9001 management and production guidelines.

Buffalo Hydraulic serves as a Factory Authorized Distributor as well as a Factory Authorized Warranty Service Center for all BVA Hydraulics products.

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics Pull Cylinders – HP1006, 10 tons capacity pulling force each.

  • 10,000 psi – 700 bar maximum operating pressure.
  • Single-acting, hydraulic pull, spring return design.
  • 10 tons of pulling force (each) at 8,196 psi.
  • 5.95″ Stroke/travel.
  • M30, 2 X 1.02″ long, engineered plunger thread.
  • M30, 2 X 0.98″ long, engineered female base mounting thread.
  • Shown equipped with (4) BVA Hydraulics CP10 complete pull cylinder clevis set.
