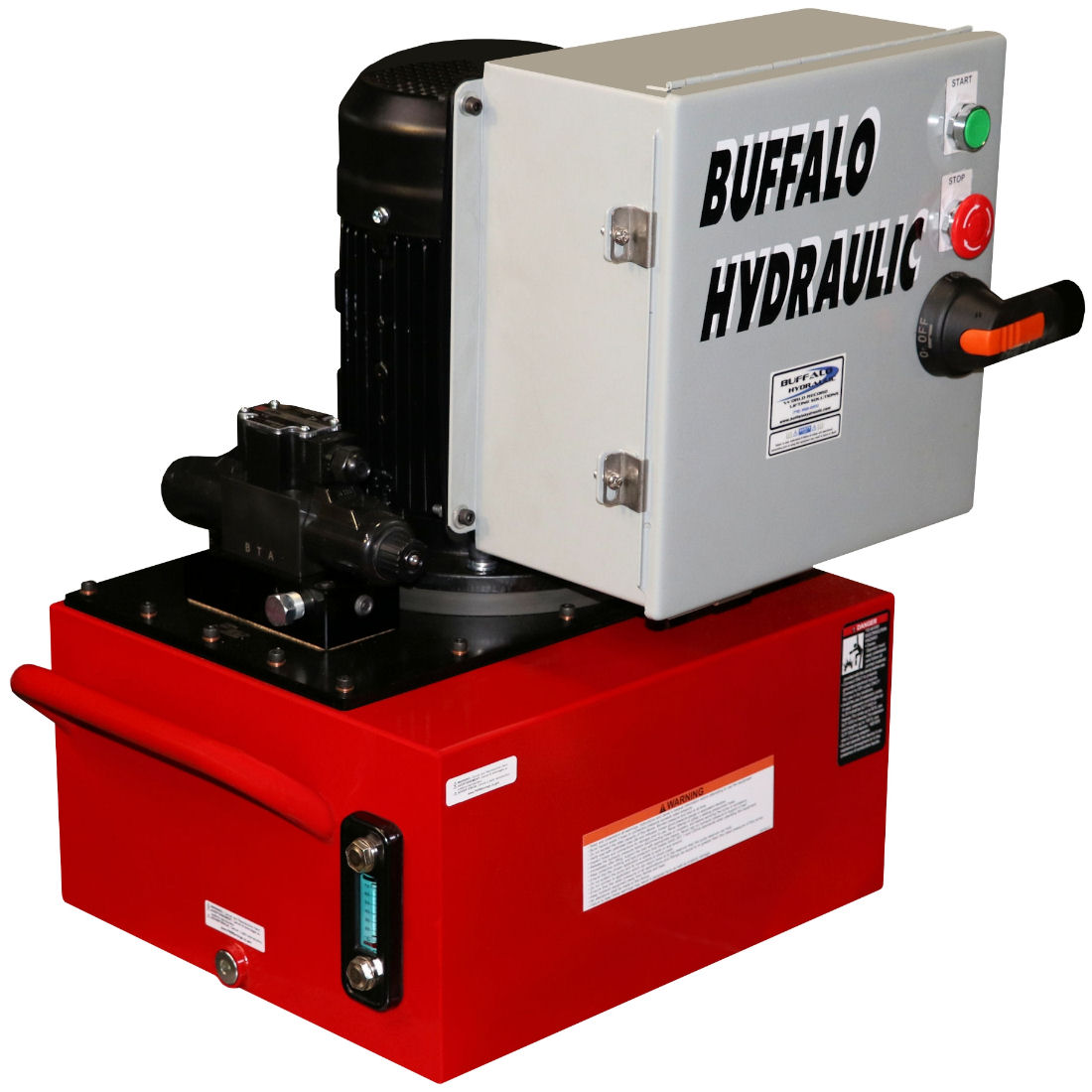

BVA Hydraulics PE60S4L10J, 10,000 psi, 3 Phase, Electric-Hydraulic Pump

BVA Hydraulics PE 40 Series and PE 60 Series, 3-phase electric-hydraulic 10,000 psi pumps are a great choice for demanding high cycle, high flow, high-pressure applications where larger reservoir volumes are required.

Contact Buffalo Hydraulic for assistance with configuring the exact matrix model number to best meet your application with this family of high-pressure pumps!

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

BVA Hydraulics PE60S4L10J, 10,000 psi, 3 Phase, Electric-Hydraulic Pump

  • 10,000 psi Maximum pressure.
  • 460-480 VAC, 3 Ph., 60 hz. Operating voltage.
  • High flow, 2- stage design.
  • 592 cu.” of oil per minute at 700 psi (1st Stage).
  • 110 cu.” of oil per minute @10,000 psi (2nd Stage).
  • 4/Way, 3/position solenoid operated directional locking valve.
  • OSHA-approved sound level – 80 dBA.
  • 10-gallon oil reservoir – Up to 40-gallon models available.
  • 24V hand-held solenoid valve control pendant (Advance/Retract).
  • Internal relief valve set at 10,000 psi.
