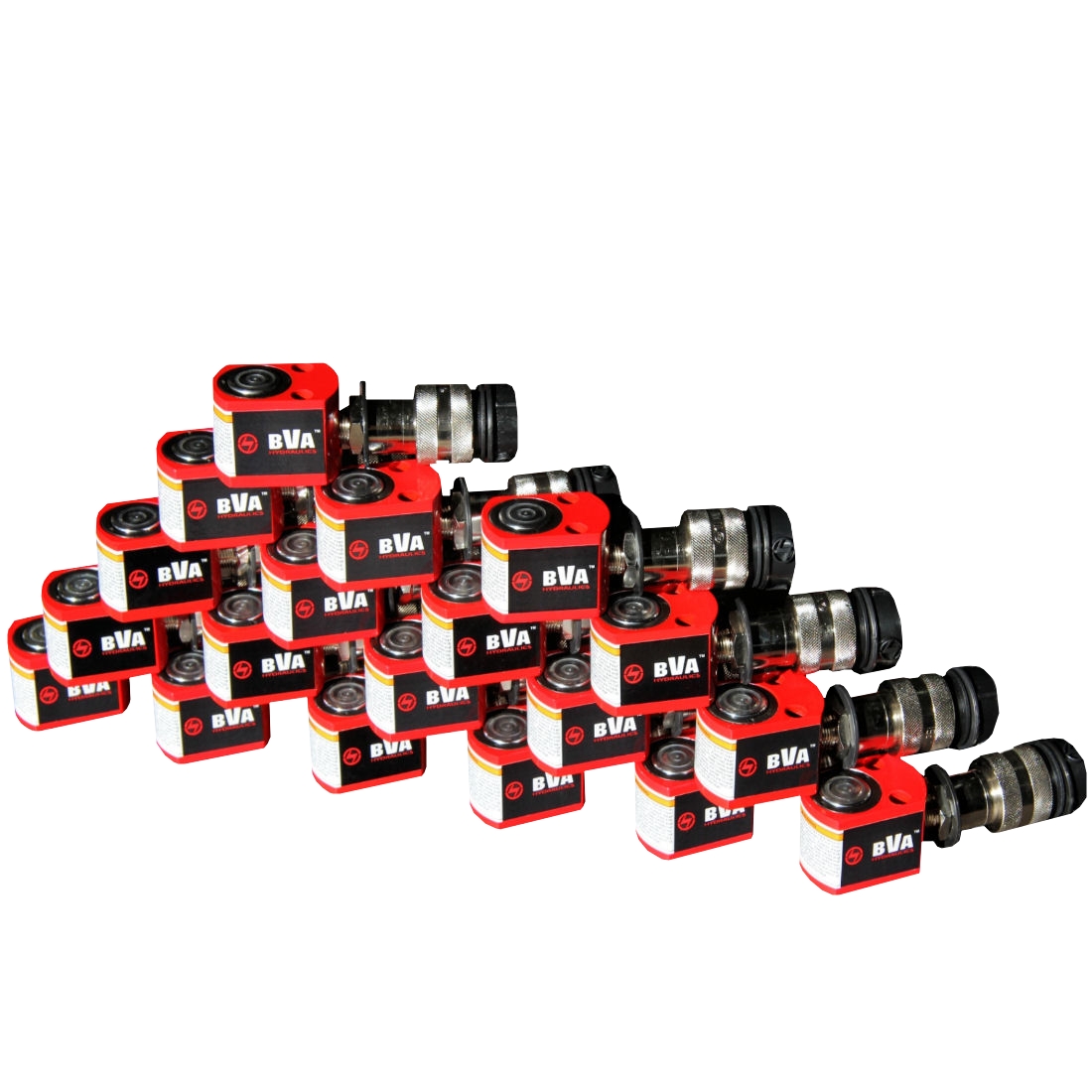

BVA Hydraulics Low Profile Hydraulic Jacking Cylinders

Spec Sheet
Inquire About This Product

Add to Wishlist
Categories: ,
Description

 BVA Hydraulics H0500 Low Profile Hydraulic Cylinders.

  • 5 Tons capacity – each @9,091 p.s.i.
  • Single acting, spring return.
  • 1.63″ Minimum height.
  • 0.63″” Stroke/travel.
  • 1.85 Lbs. Each.

Eight models to choose from ranging from 5 – 150 tons lifting capacity.  This low-profile design will provide the clearance needed for your high-tonnage lifting project.  BVA Hydraulics HF Series 10,000 psi, hydraulic jacking cylinders can easily be incorporated into a multi-point hydraulic jacking system.

All BVA Hydraulics Cylinders meet or exceed industry standard ASME B30.1.
